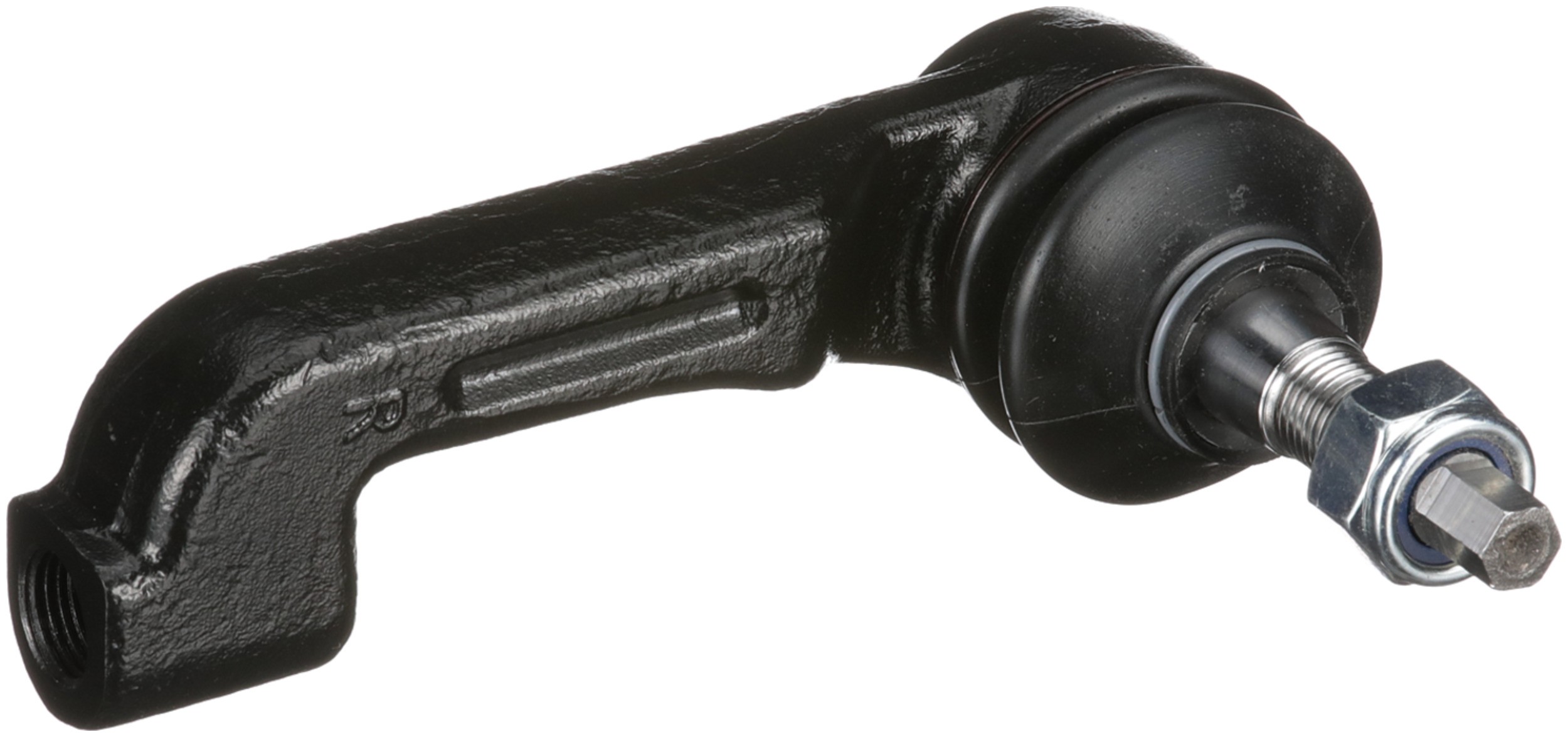

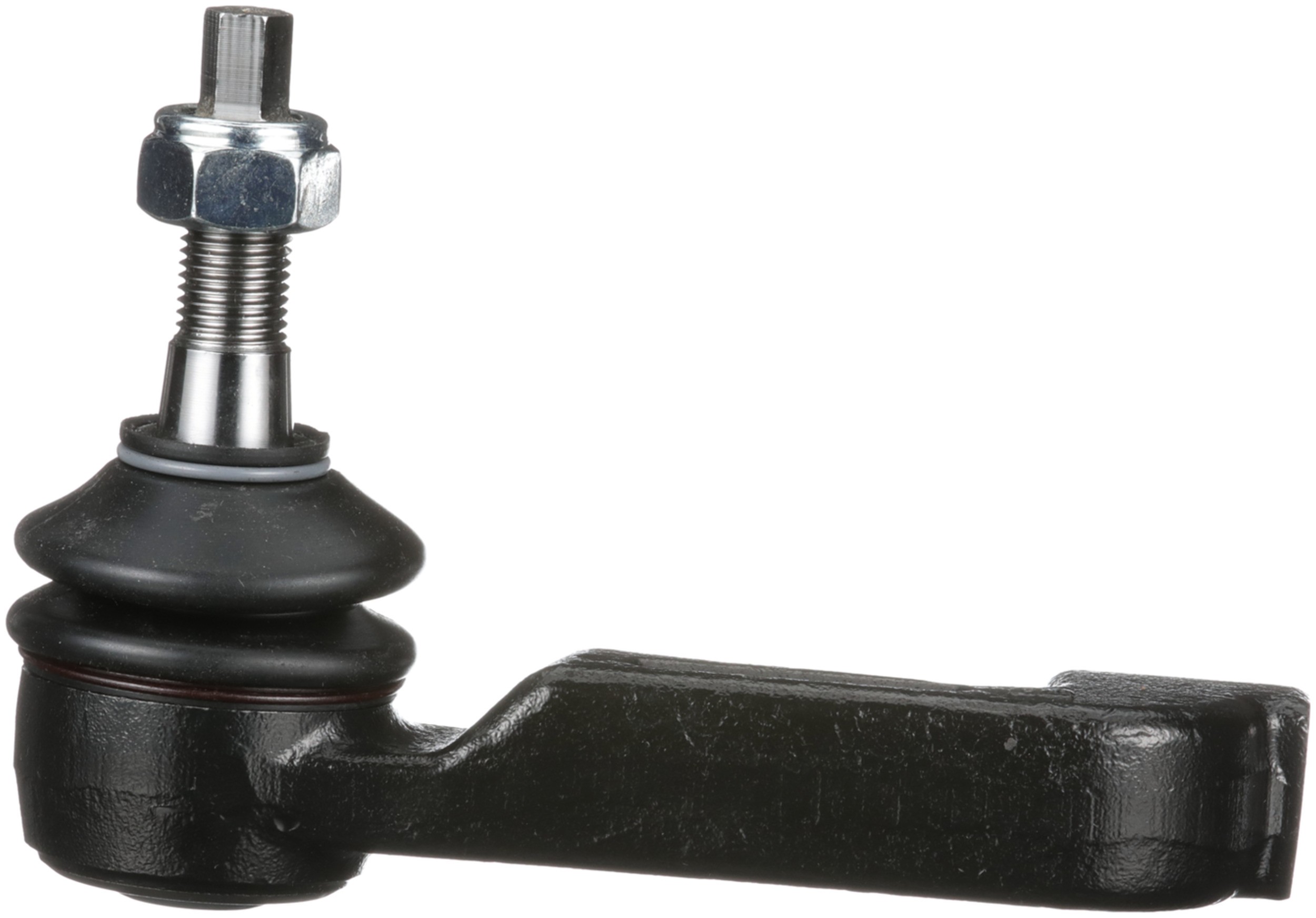

Delphi TA5104 Steering Tie Rod End

Delphi TA5104 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Length – Stud Centre to End	133.50 MM
881	Threaded
9090	Rubber
9091	Steel
1786	0.744 IN
1786	18.90 MM
36	1.008 IN
36	25.60 MM
627	2.2 LB
662	0.744 IN
662	18.90 MM
Color	Black
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Bent
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Length	158.00 MM
Stud Length	0.744 IN
Stud Length	18.90 MM
Width	50.4 MM
Height	109.30 MM
Length – Stud Centre to End	5.256 IN
Position(s)	Right Outer
