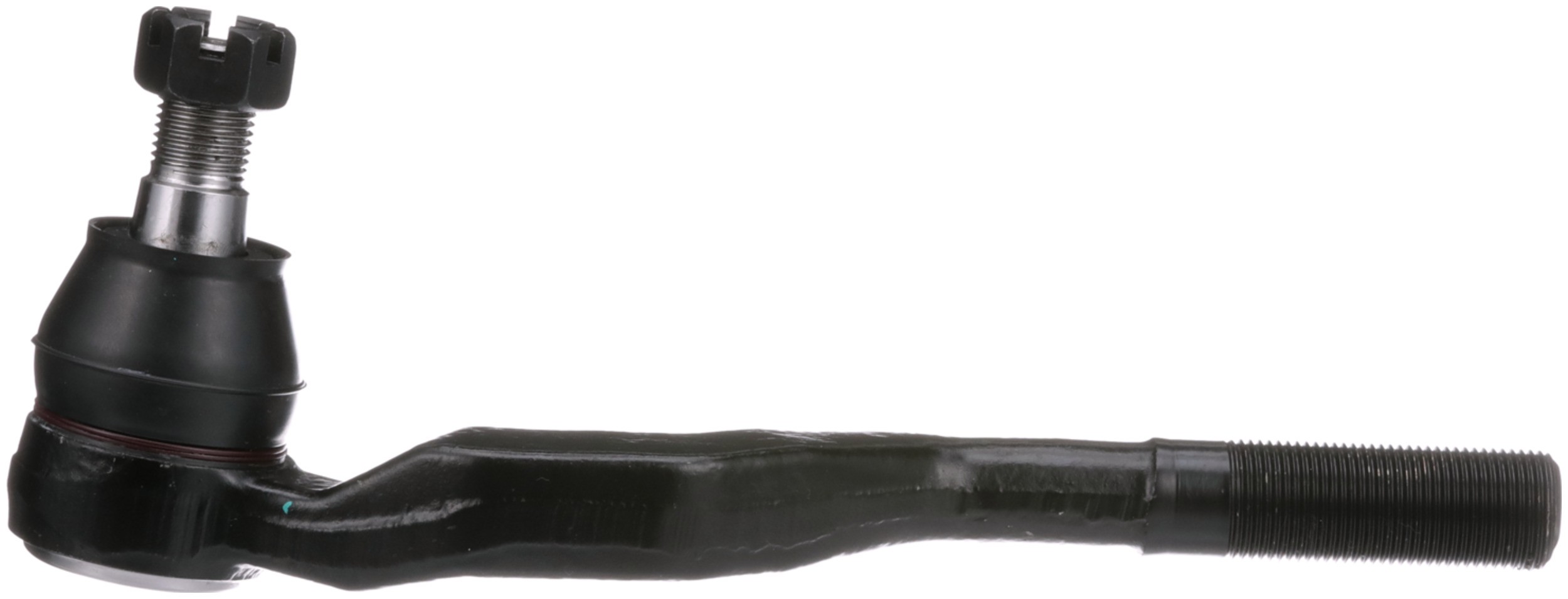

Delphi TA5138 Steering Tie Rod End

Delphi TA5138 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Grade Type	Standard Replacement
627	2.02 LB
1786	17.50 MM
1786	0.689 IN
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Right Outer
Greaseable	No
Adjustable	No
Housing Material	Steel
662	0.689 IN
Mounting Hardware Included	Yes
Type	Bent
Length	249.90 MM
Stud Length	0.689 IN
Stud Length	17.50 MM
Width	65 MM
Height	95.00 MM
Length – Stud Centre to End	2.717 IN
Length – Stud Centre to End	69.00 MM
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Male
Color	Black
Boot Colour	Black
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
662	17.50 MM
