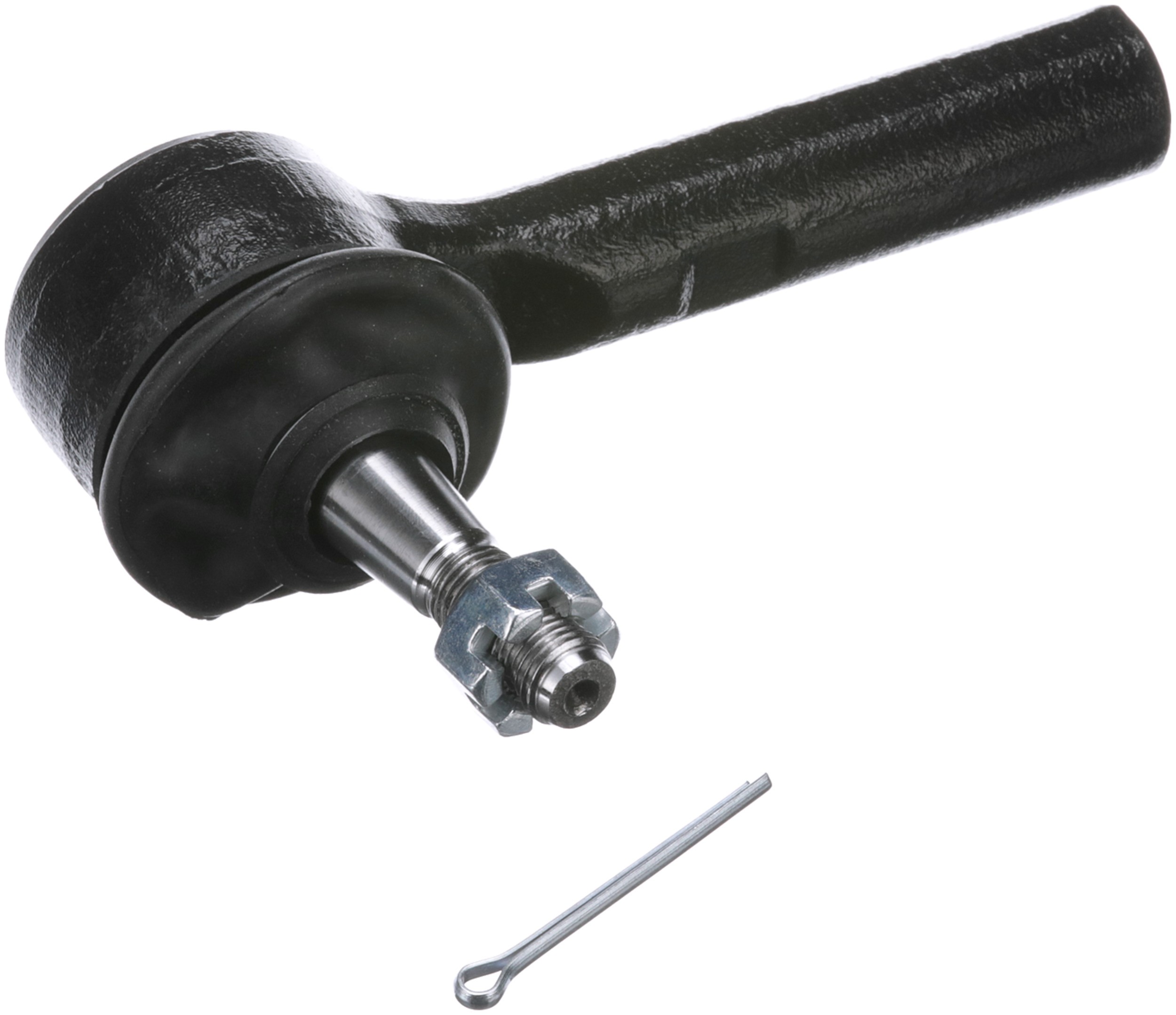

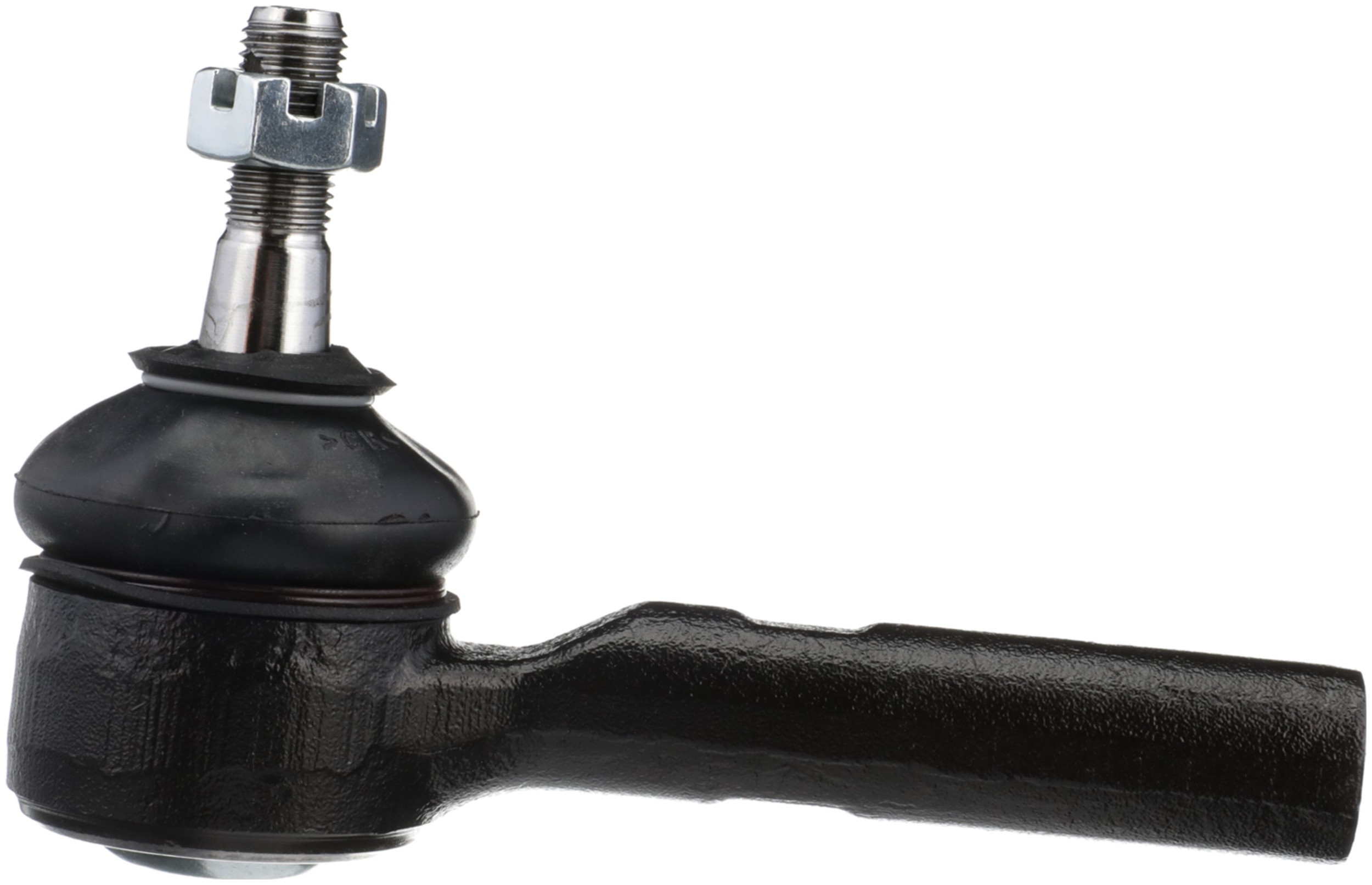

Delphi TA5169 Steering Tie Rod End

Delphi TA5169 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	No
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
Color	Black
Width	48 MM
Height	92.10 MM
Length – Stud Centre to End	4.823 IN
Length – Stud Centre to End	122.50 MM
9091	Steel
881	Threaded
1786	0.626 IN
9090	Rubber
36	21.50 MM
36	0.846 IN
1786	15.90 MM
627	1.56 LB
662	0.626 IN
662	15.90 MM
Length	147.00 MM
Stud Length	0.626 IN
Stud Length	15.90 MM
Position(s)	Outer
End 2 Thread Direction	Clockwise (Right)
