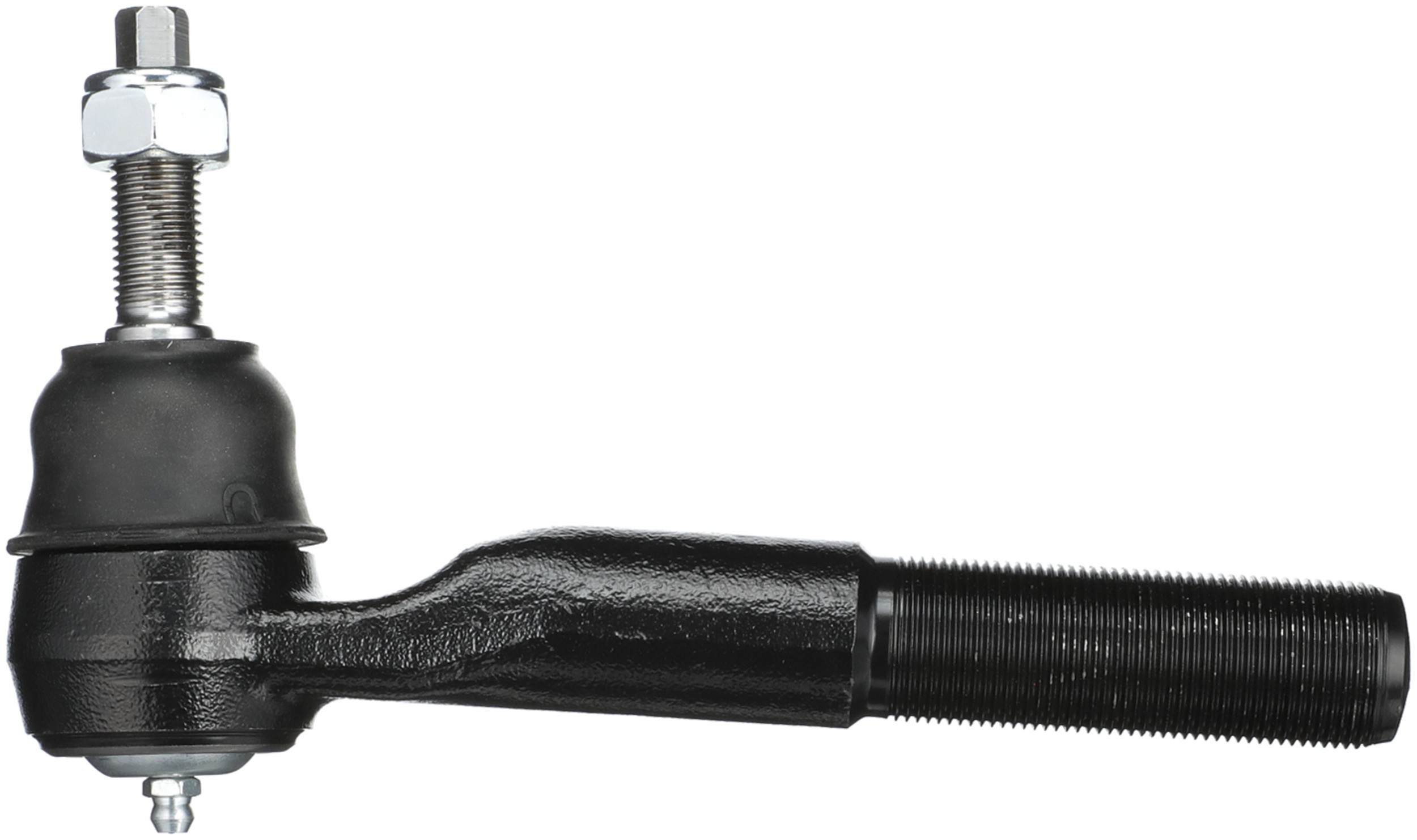

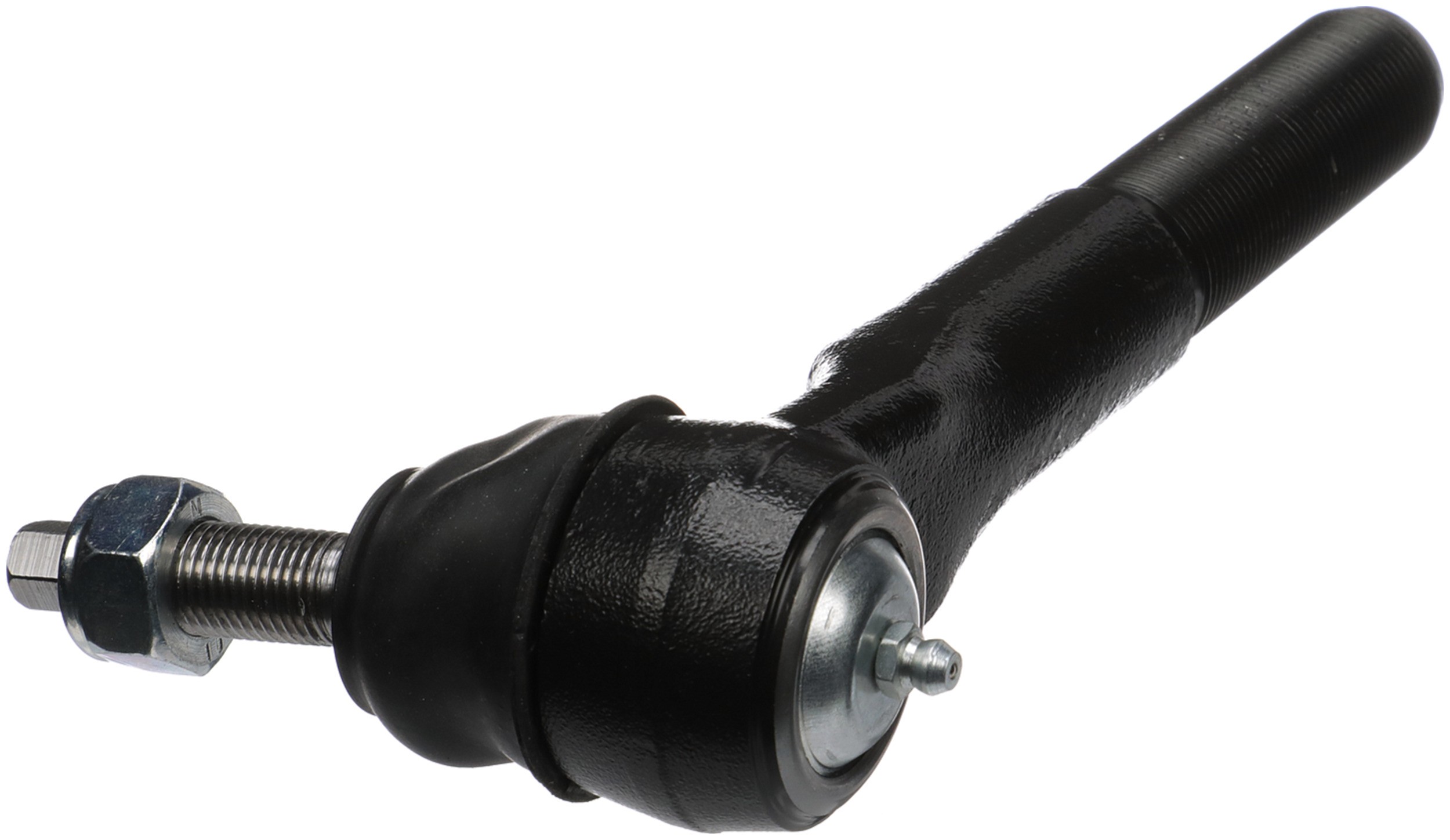

Delphi TA5170 Steering Tie Rod End

Delphi TA5170 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Position(s)	At Pitman Arm, Inner. For the position specific to your vehicle, refer to the Applications.
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Male
Length – Stud Centre to End	184.00 MM
Length – Stud Centre to End	7.244 IN
Height	123.70 MM
Width	48 MM
Stud Length	18.60 MM
881	Threaded
9090	Rubber
662	18.60 MM
662	0.732 IN
627	2.6 LB
36	28.50 MM
36	1.122 IN
Color	Black
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Steel
Greaseable	Yes
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	Yes
9091	Steel
Stud Length	0.732 IN
1786	18.60 MM
1786	0.732 IN
Length	212.00 MM
