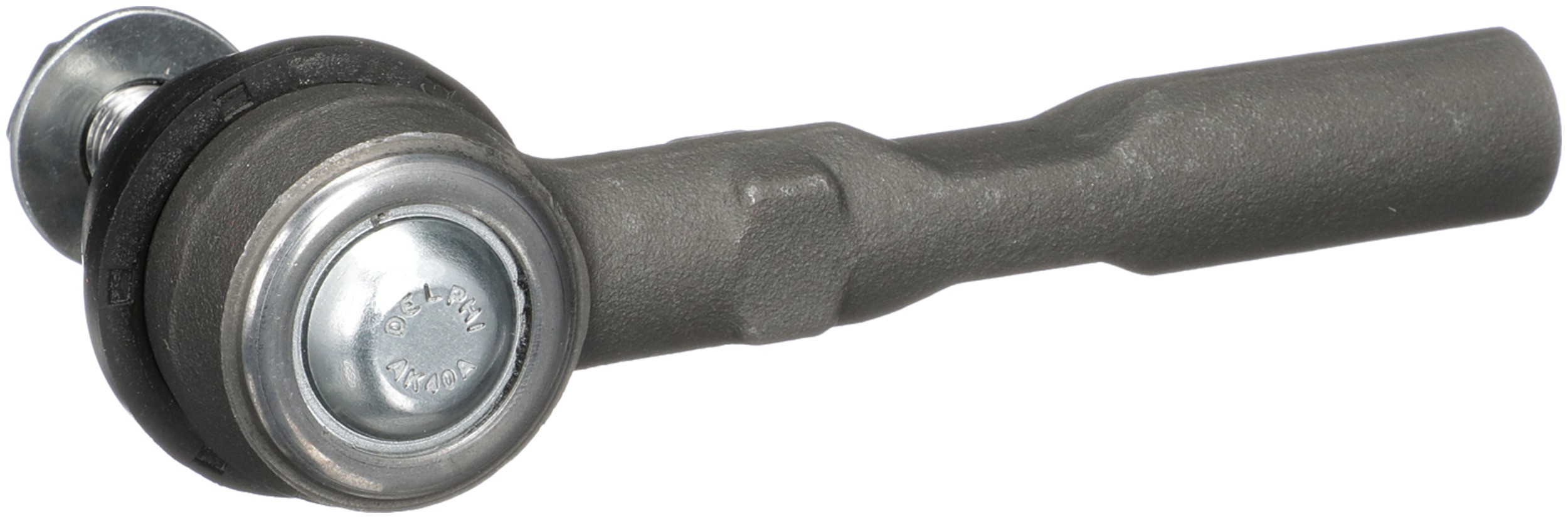

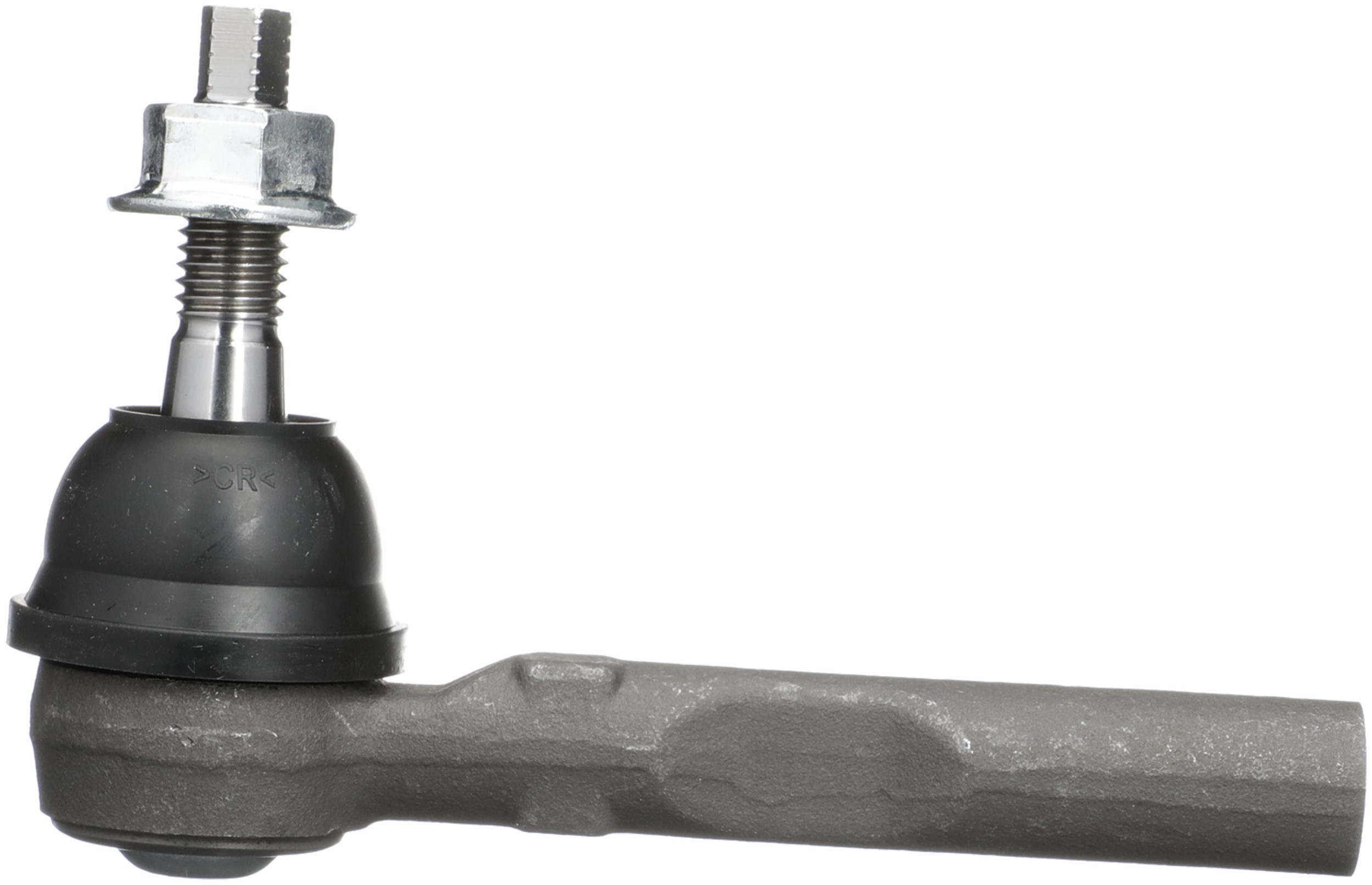

Delphi TA5171 Steering Tie Rod End

Delphi TA5171 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Pre-greased	Yes
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	No
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	No
End 2 Gender	Female
Color	Black
Position(s)	Outer
881	Threaded
9090	Rubber
9091	Steel
Length – Stud Centre to End	140.00 MM
Length – Stud Centre to End	5.512 IN
Height	107.00 MM
Width	46 MM
Stud Length	17.70 MM
Stud Length	0.697 IN
Length	163.00 MM
1786	0.697 IN
1786	17.70 MM
36	0.866 IN
36	22.00 MM
627	1.28 LB
662	0.697 IN
662	17.70 MM
