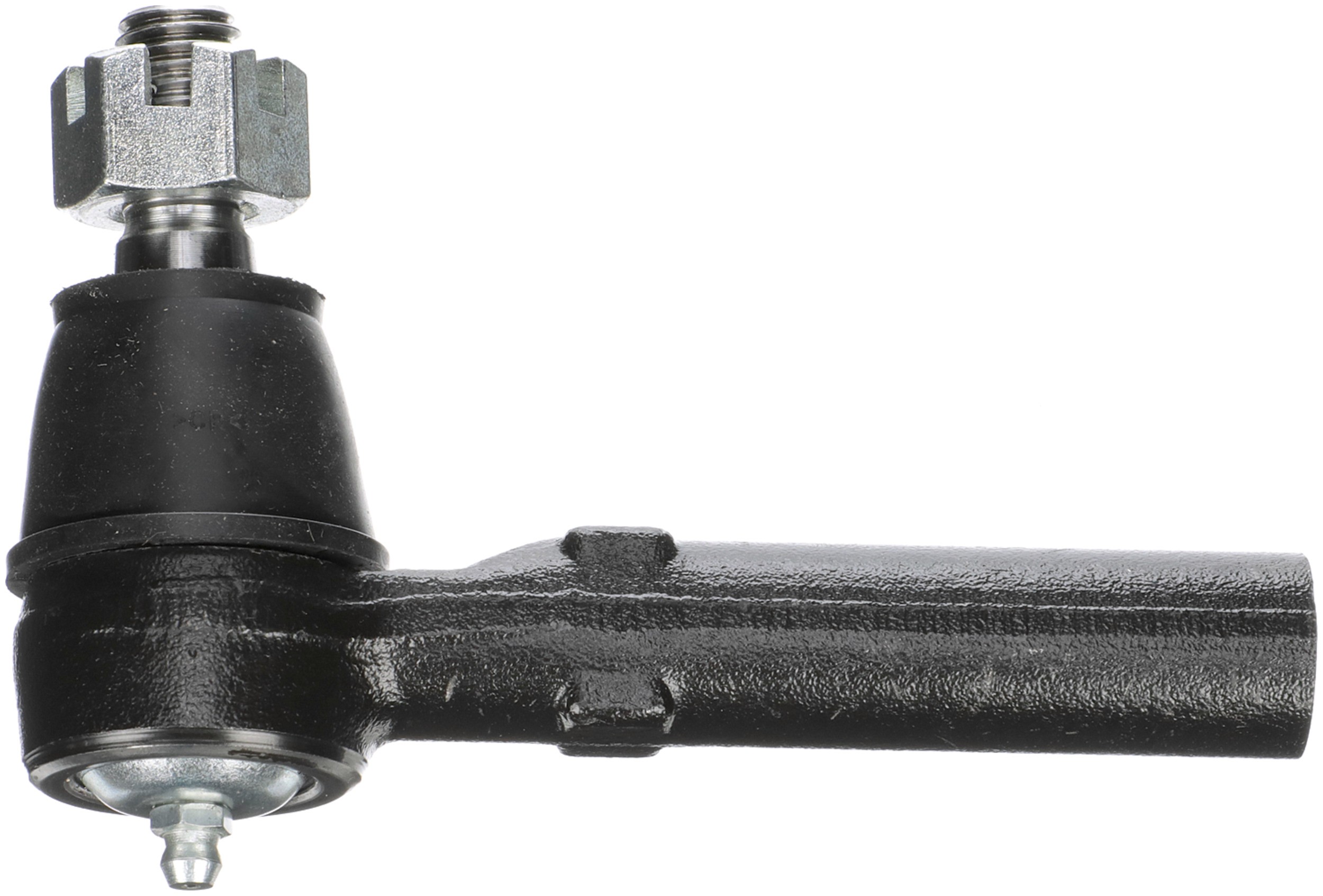

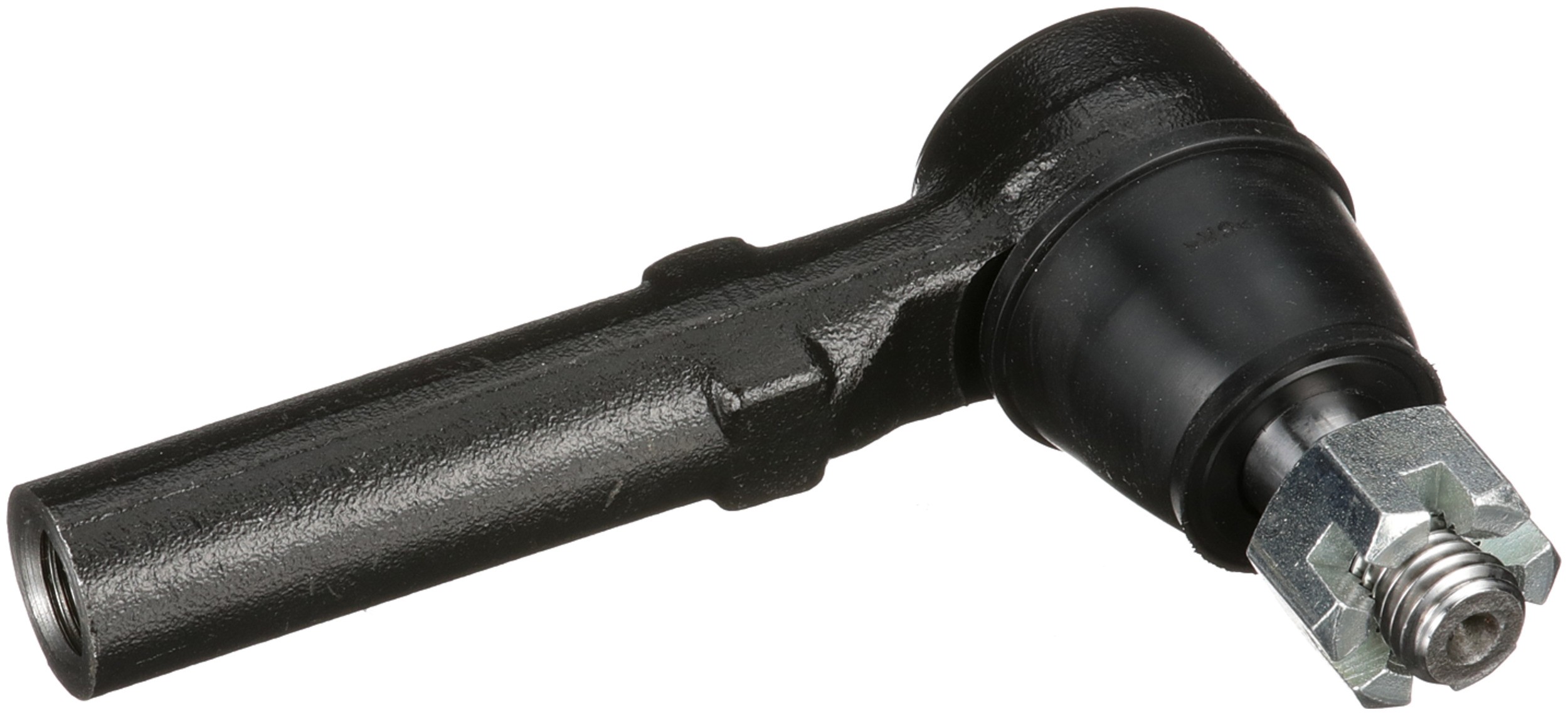

Delphi TA5172 Steering Tie Rod End

Delphi TA5172 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

881	Threaded
Position(s)	Outer
36	0.866 IN
36	22.00 MM
627	1.25 LB
1786	0.713 IN
Stud Length	0.713 IN
Adjustable	No
Greaseable	Yes
Bearing Material	Plastic
Length – Stud Centre to End	4.567 IN
662	0.713 IN
Stud Length	18.10 MM
662	18.10 MM
Color	Black
Pre-greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Length	138.00 MM
9091	Steel
9090	Rubber
1786	18.10 MM
Width	40 MM
Length – Stud Centre to End	116.00 MM
Height	96.00 MM
