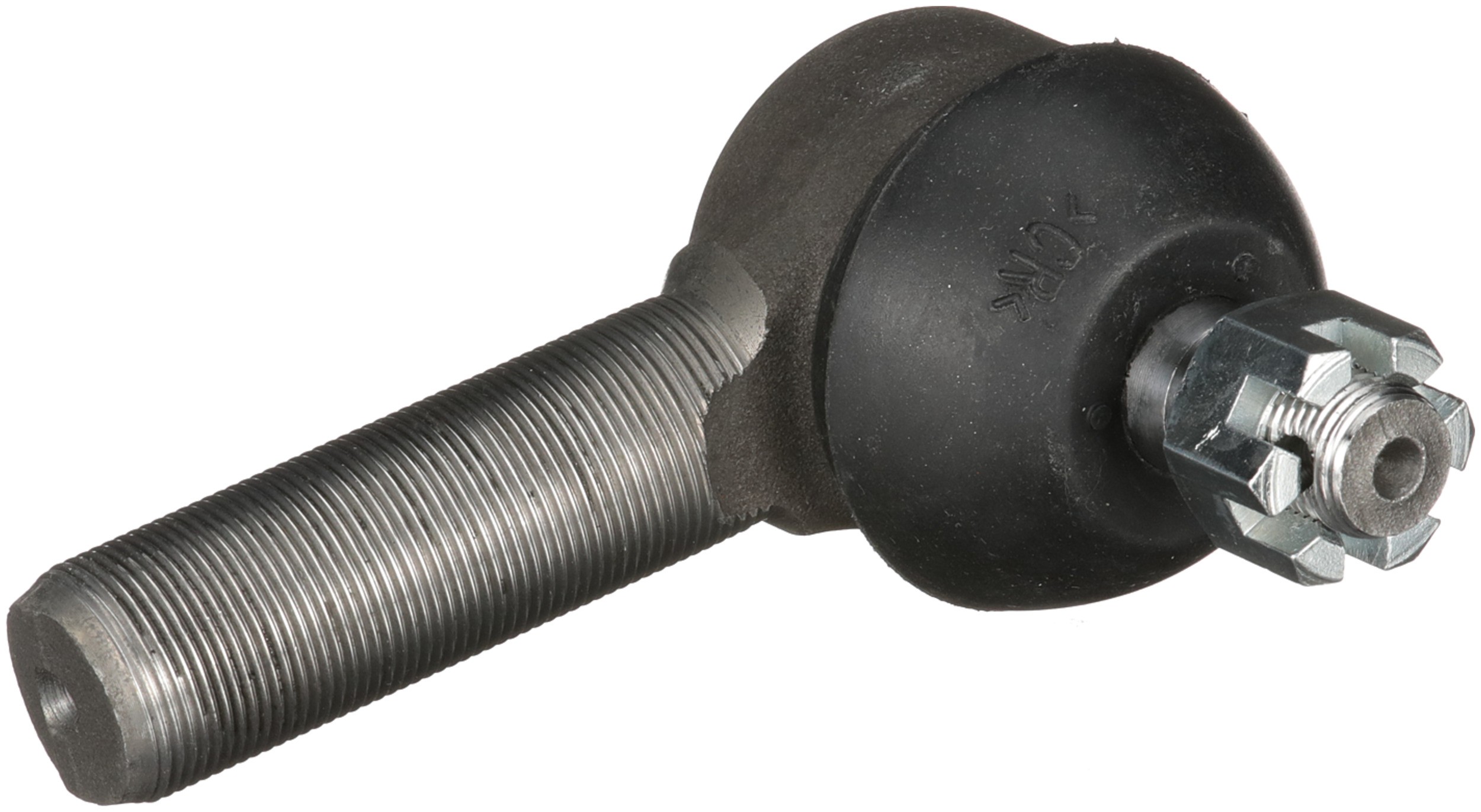

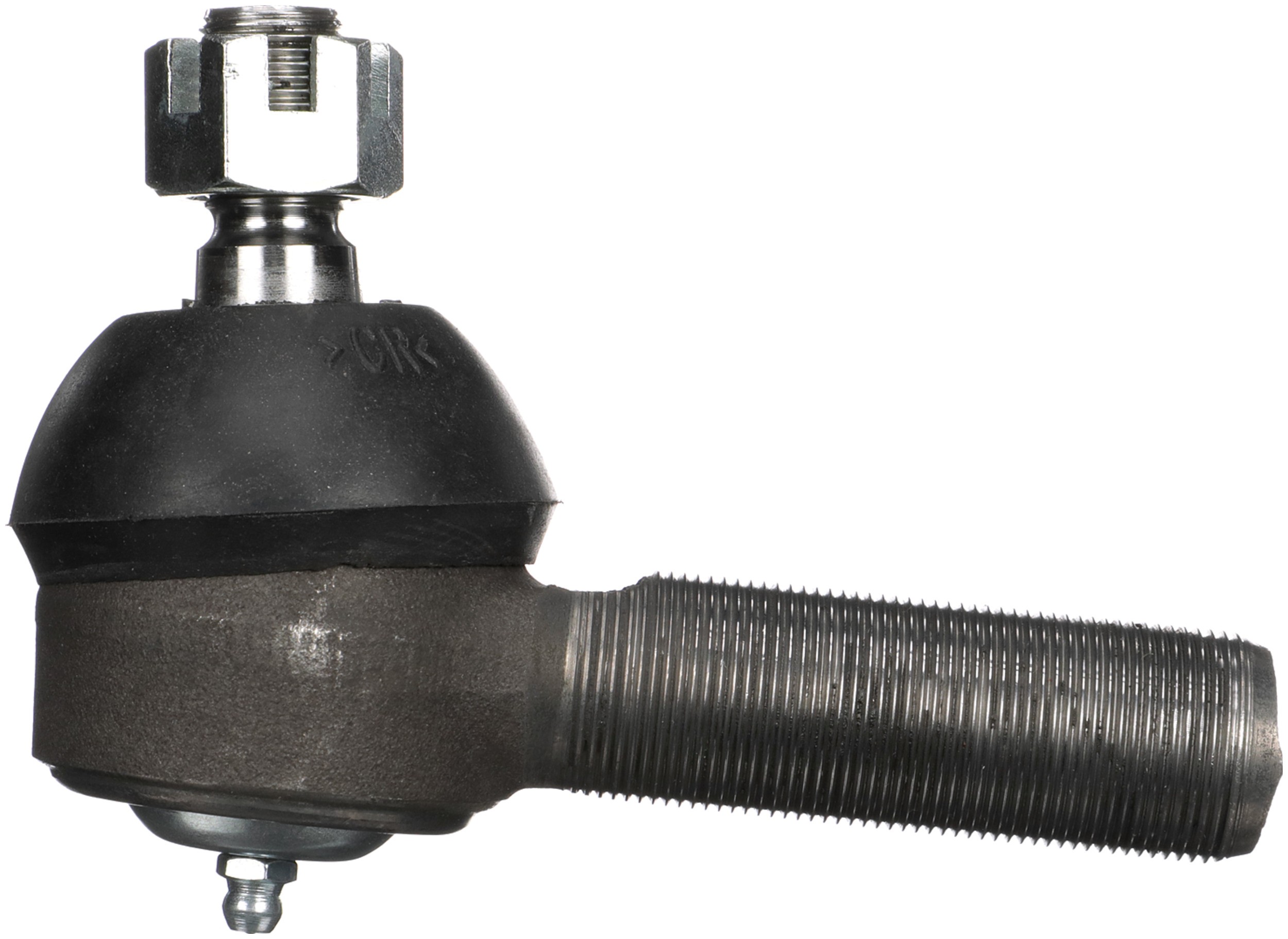

Delphi TA5180 Steering Tie Rod End

Delphi TA5180 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi includes the necessary accessories for a complete job
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Length	133.00 MM
Stud Length	0.778 IN
Stud Length	19.75 MM
Width	52 MM
Height	96.80 MM
662	0.778 IN
662	19.75 MM
Bearing Material	Steel
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Grease Fitting Included	Yes
Dust Boot Included	Yes
Length – Stud Centre to End	4.528 IN
Length – Stud Centre to End	115.00 MM
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Right Outer
Type	Straight
627	1.79 LB
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	Yes
Pre-greased	Yes
1786	0.778 IN
1786	19.75 MM
36	1.000 IN
36	25.40 MM
End 2 Gender	Male
End 1 Gender	Male
Color	Black

Vehicle Applications:

Make	Model	Years
Chevrolet	Blazer	1987 to 1991
Chevrolet	K10 Pickup	1969 to 1974
Chevrolet	K10 Suburban	1971 to 1986
Chevrolet	K10	1975 to 1986
Chevrolet	K20 Pickup	1970 to 1974
Chevrolet	K20 Suburban	1971 to 1986
Chevrolet	K20	1975 to 1986
Chevrolet	K30	1977 to 1986
Chevrolet	K5 Blazer	1975 to 1986
Chevrolet	V10 Suburban	1987 to 1988
Chevrolet	V10	1987 to 1987
Chevrolet	V1500 Suburban	1989 to 1991
Chevrolet	V20 Suburban	1987 to 1988
Chevrolet	V20	1987 to 1987
Chevrolet	V2500 Suburban	1989 to 1991
Chevrolet	V30	1987 to 1988
Chevrolet	V3500	1989 to 1991
GMC	Jimmy	1975 to 1991
GMC	K15 Suburban	1975 to 1975
GMC	K15/K1500 Pickup	1969 to 1974
GMC	K15/K1500 Suburban	1971 to 1971
GMC	K1500 Suburban	1979 to 1986
GMC	K1500	1979 to 1986
GMC	K15	1975 to 1975
GMC	K25 Suburban	1975 to 1975
GMC	K25/K2500 Pickup	1969 to 1974
GMC	K25/K2500 Suburban	1971 to 1971
GMC	K2500 Suburban	1979 to 1986
GMC	K2500	1979 to 1986
GMC	K25	1975 to 1975
GMC	K3500	1979 to 1986
GMC	K35	1977 to 1978
GMC	V1500 Suburban	1987 to 1991
GMC	V1500	1987 to 1987
GMC	V2500 Suburban	1987 to 1991
GMC	V2500	1987 to 1987
GMC	V3500	1987 to 1991
