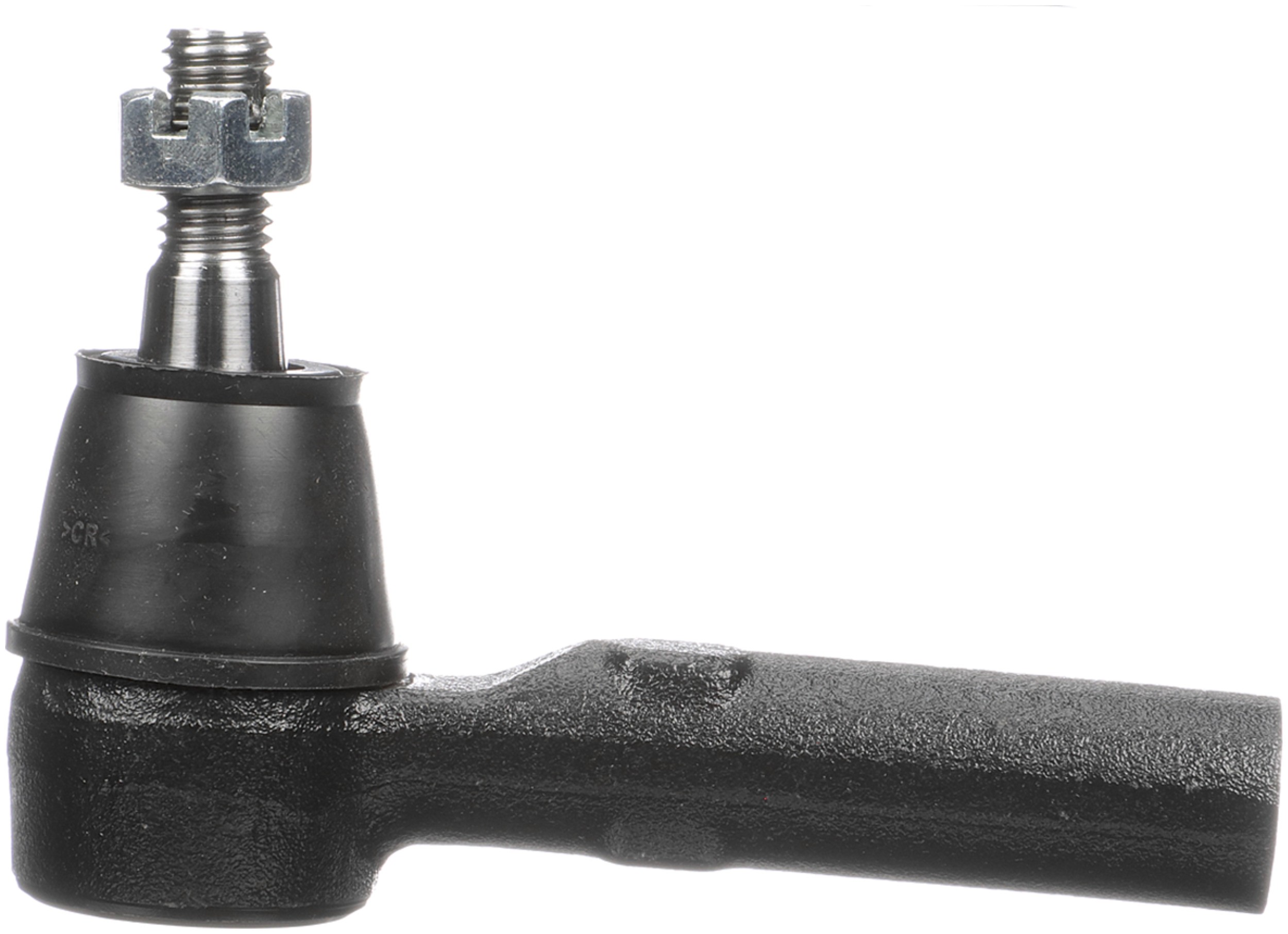

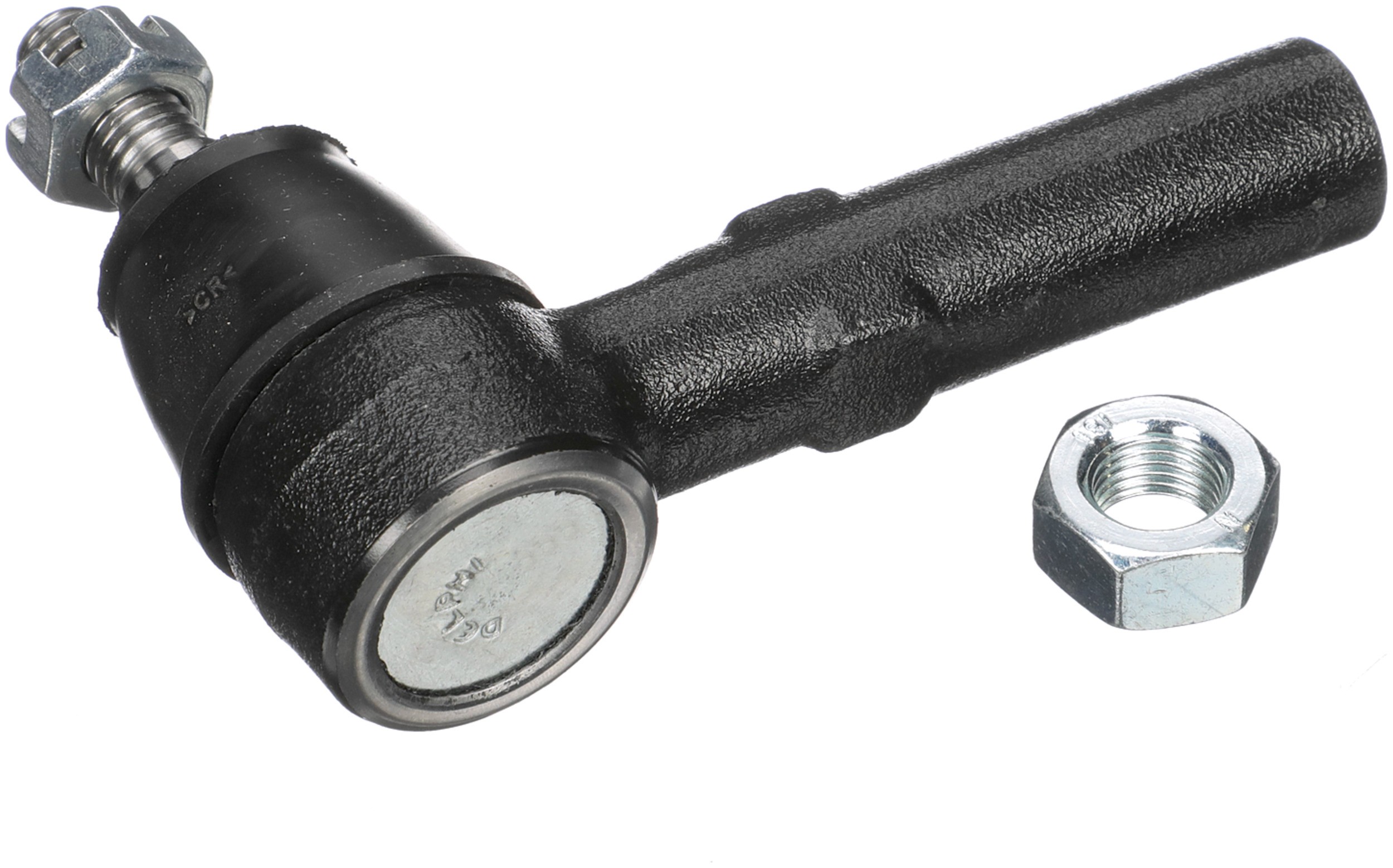

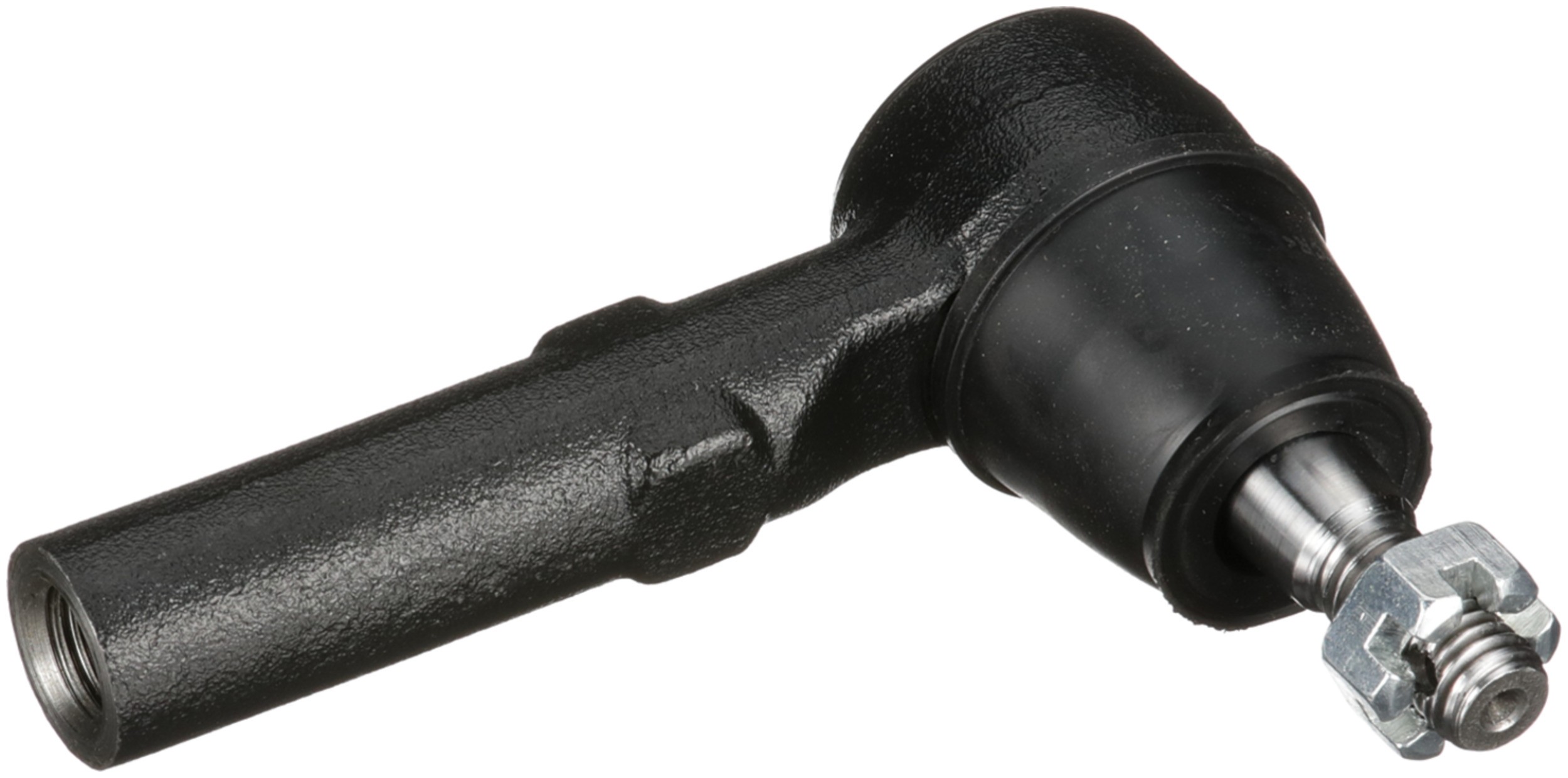

Delphi TA5181 Steering Tie Rod End

Delphi TA5181 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Adjustable	No
Color	Black
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
1786	0.703 IN
1786	17.85 MM
36	0.866 IN
36	22.00 MM
627	1.32 LB
662	0.703 IN
662	17.85 MM
Length – Stud Centre to End	105.50 MM
Length – Stud Centre to End	4.154 IN
Height	85.70 MM
Width	40 MM
Stud Length	17.85 MM
Stud Length	0.703 IN
Length	126.00 MM
Position(s)	Outer
881	Threaded
9090	Rubber
9091	Steel
