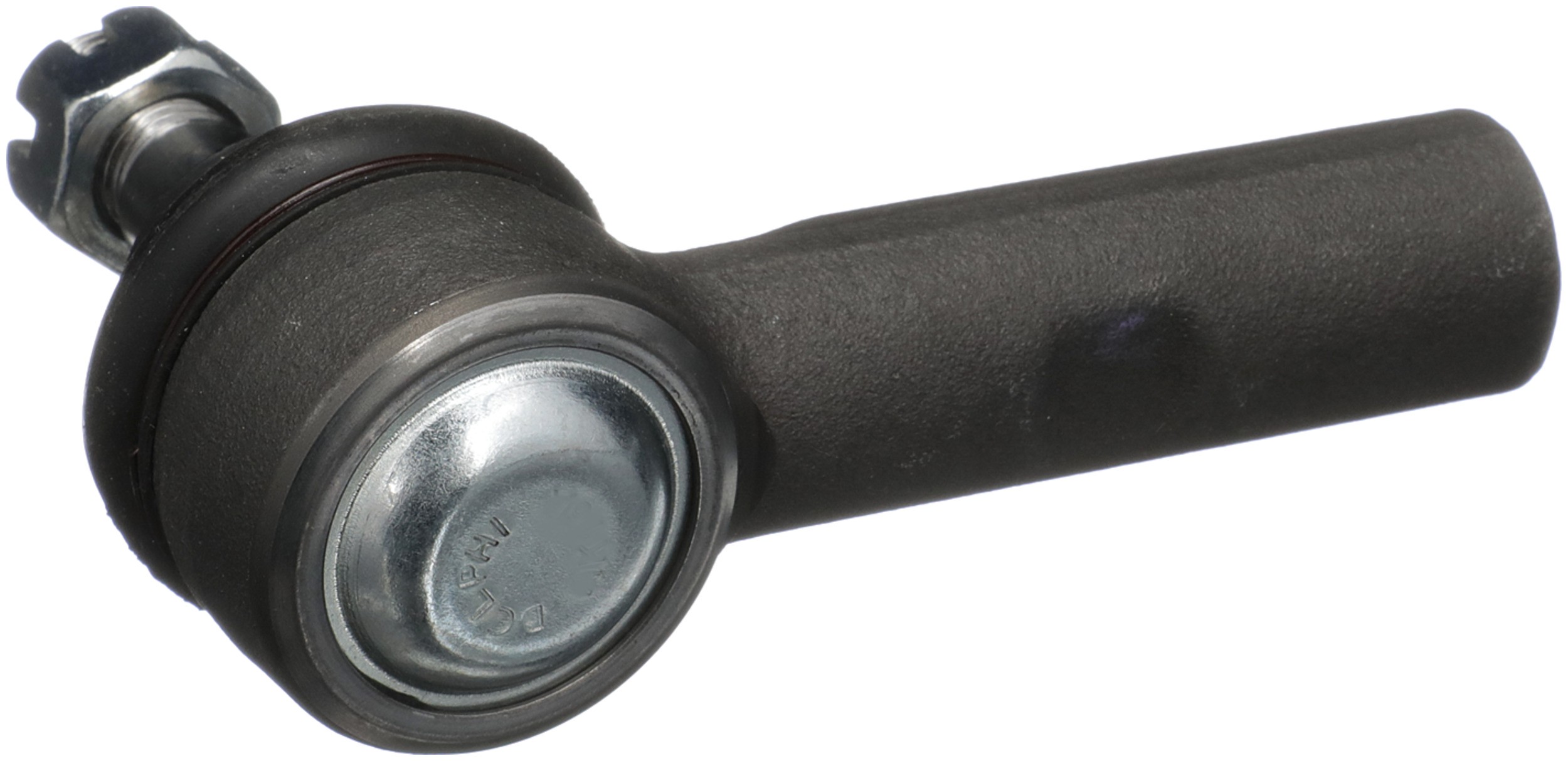

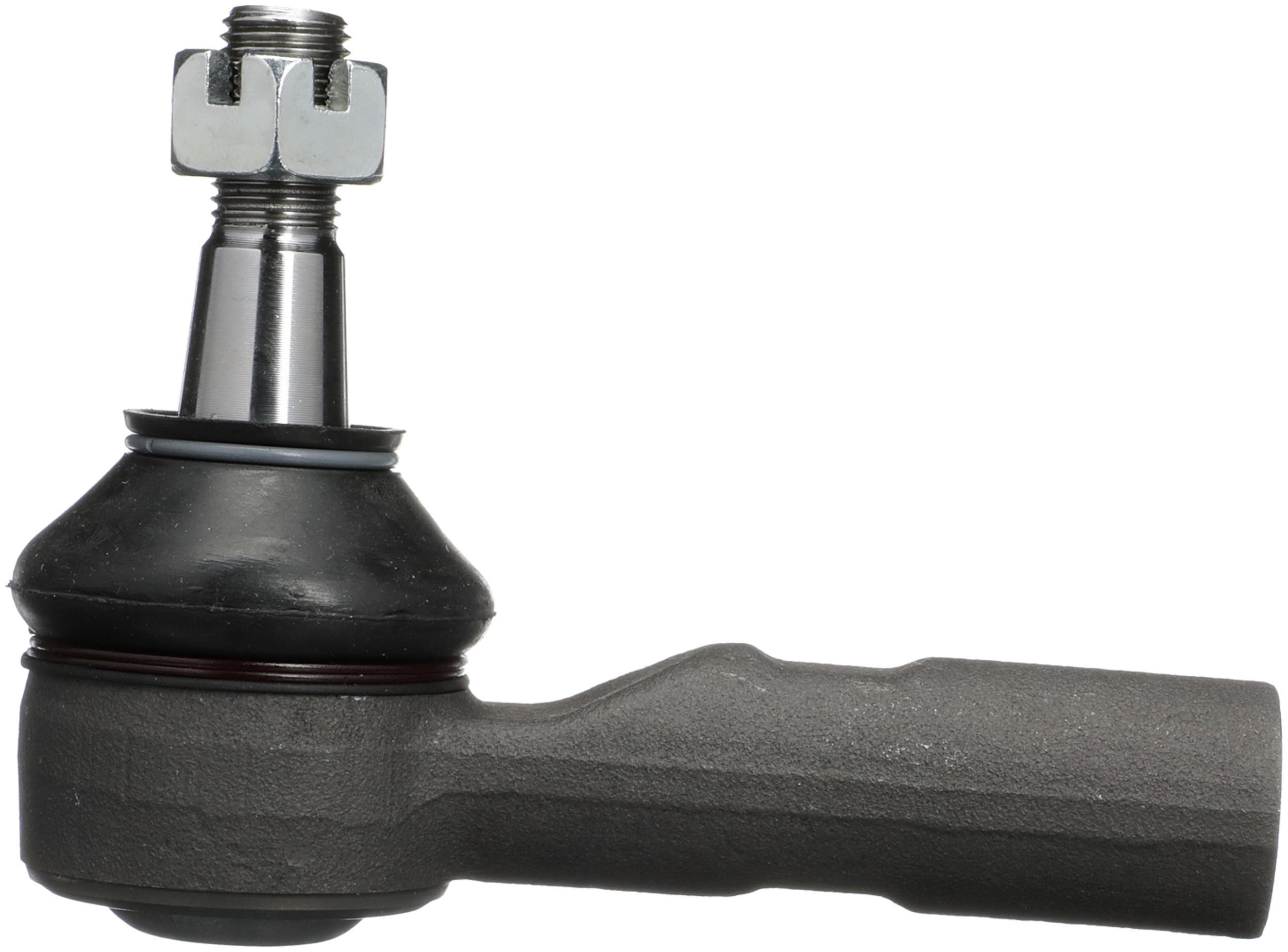

Delphi TA5183 Steering Tie Rod End

Delphi TA5183 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

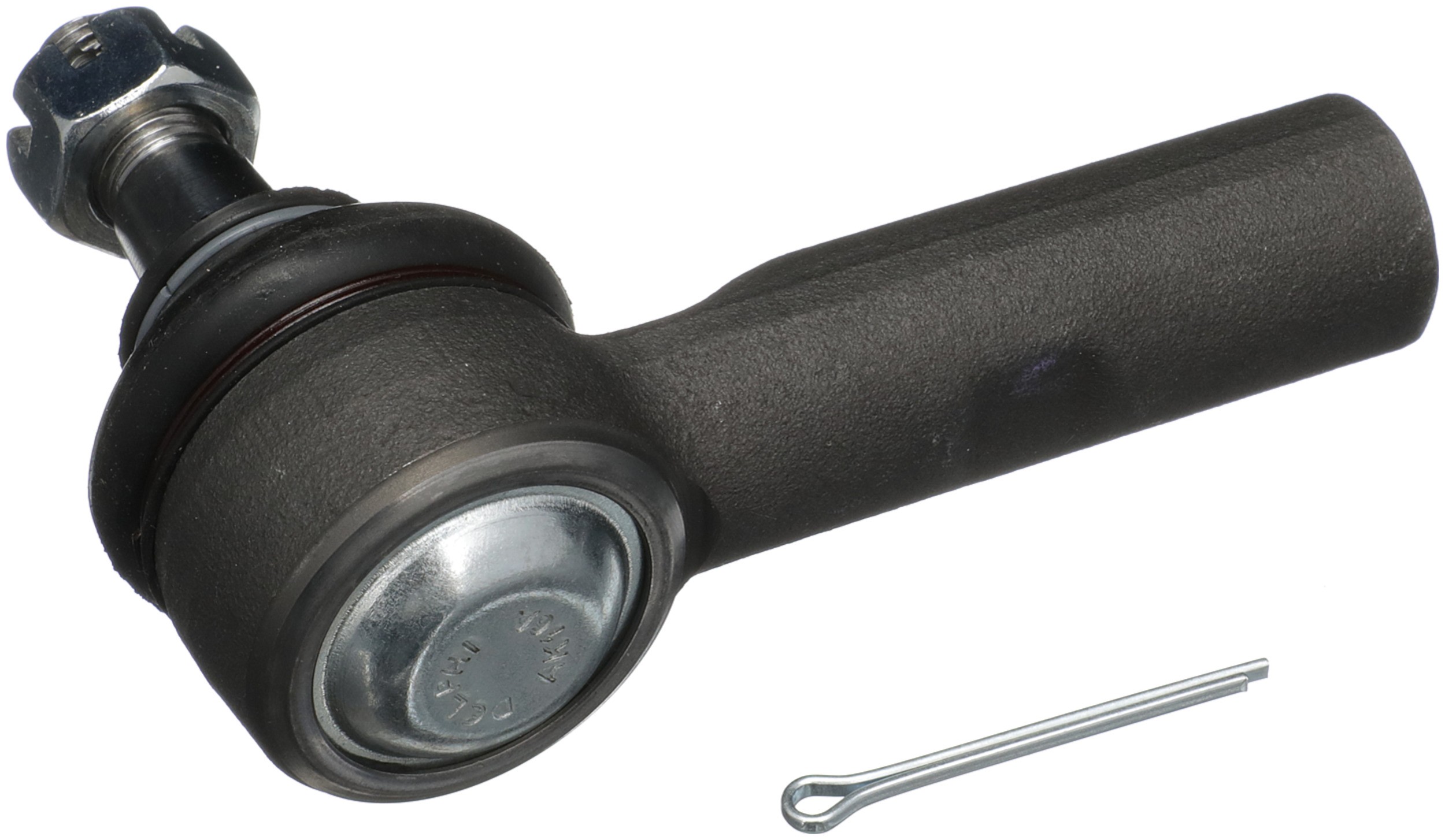

Delphi includes the necessary accessories for a complete job
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

662	0.752 IN
627	1.58 LB
End 1 Thread Direction	Clockwise (Right)
Color	Black
Pre-greased	Yes
1786	0.752 IN
1786	19.10 MM
36	1.063 IN
36	27.00 MM
Greaseable	No
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
End 2 Thread Direction	Clockwise (Right)
Type	Straight
Dust Boot Included	Yes
Length	131.00 MM
Stud Length	0.752 IN
Stud Length	19.10 MM
Width	51 MM
Height	96.00 MM
Length – Stud Centre to End	4.134 IN
Length – Stud Centre to End	105.00 MM
Position(s)	Outer
881	Threaded
9090	Rubber
9091	Steel
Bearing Material	Plastic
Grease Fitting Included	No
662	19.10 MM
