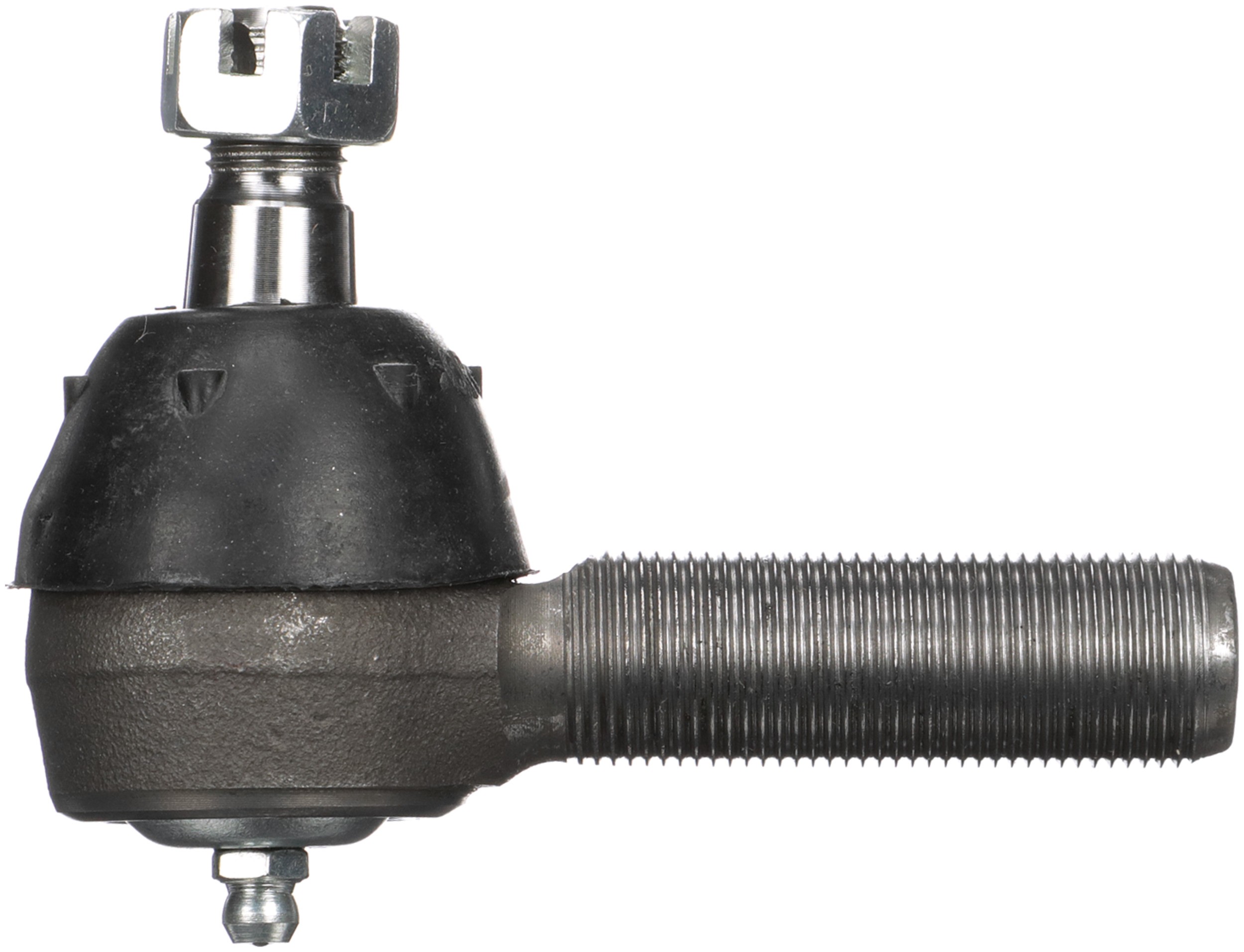

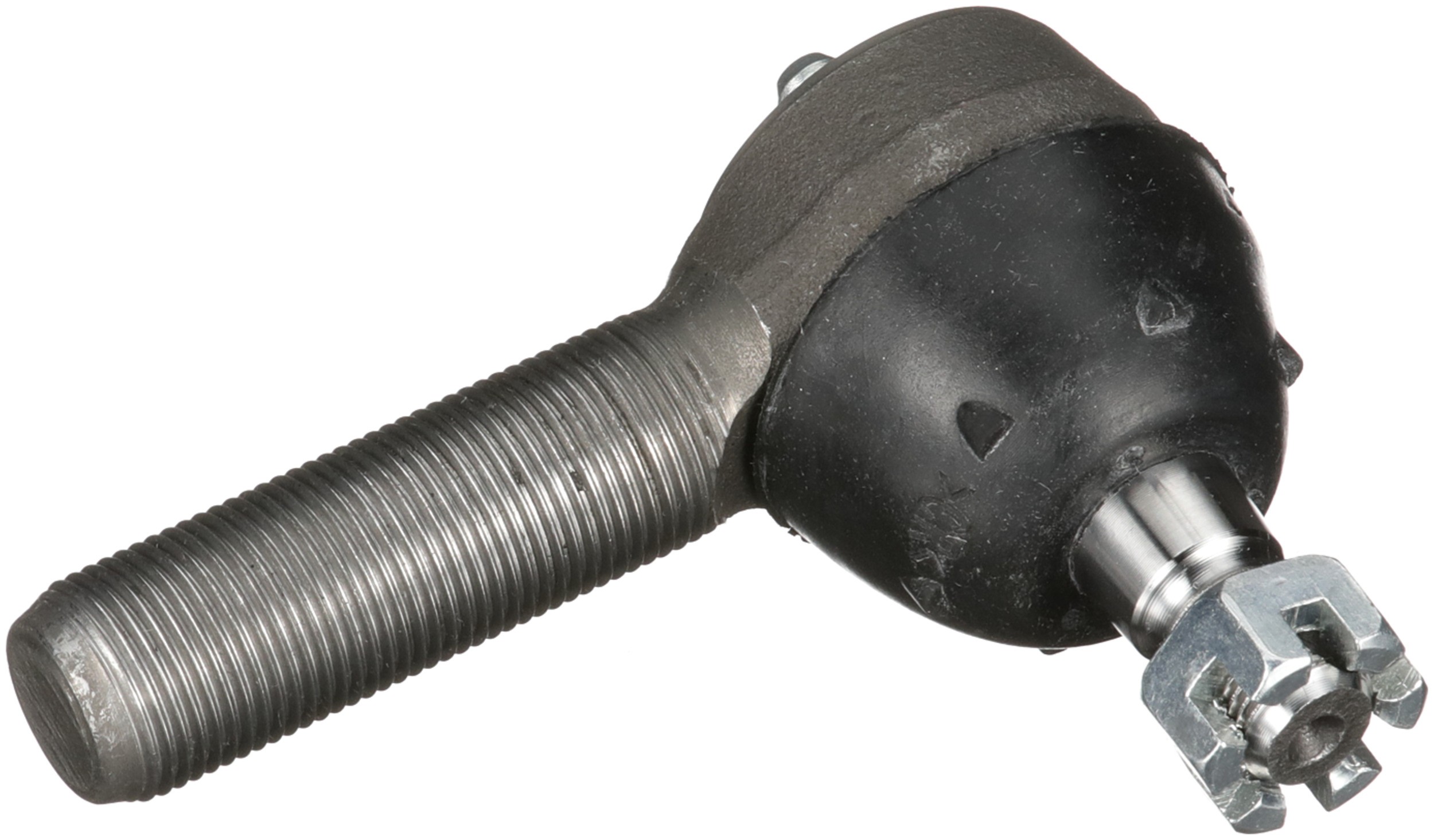

Delphi TA5194 Steering Tie Rod End

Delphi TA5194 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
36	19.05 MM
627	0.77 LB
662	0.630 IN
662	16.00 MM
Position(s)	Left Outer
36	0.750 IN
1786	0.630 IN
1786	16.00 MM
Length – Stud Centre to End	83.00 MM
Length	104.00 MM
Stud Length	0.630 IN
Stud Length	16.00 MM
Width	41 MM
Length – Stud Centre to End	3.268 IN
Height	79.80 MM
881	Threaded
9090	Rubber
9091	Steel
End 1 Gender	Male
Color	Black
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	Yes
Bearing Material	Plastic

Vehicle Applications:

Make	Model	Years
Dodge	RD200	1979 to 1980
Dodge	Ramcharger	1975 to 1985
Dodge	W100 Pickup	1972 to 1974
Dodge	W100	1975 to 1985
Dodge	W150	1977 to 1985
Dodge	W200 Pickup	1969 to 1974
Dodge	W200	1975 to 1980
Dodge	W250	1981 to 1985
Dodge	W300 Pickup	1969 to 1974
Dodge	W300	1975 to 1980
Dodge	W350	1981 to 1993
Fargo	W100 Pickup	1972 to 1972
Fargo	W200 Pickup	1969 to 1972
Plymouth	Trailduster	1974 to 1981
