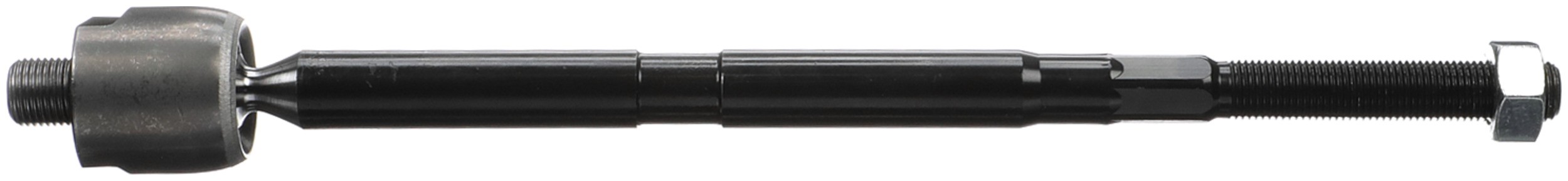

Delphi TA5196 Steering Tie Rod End

Delphi TA5196 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

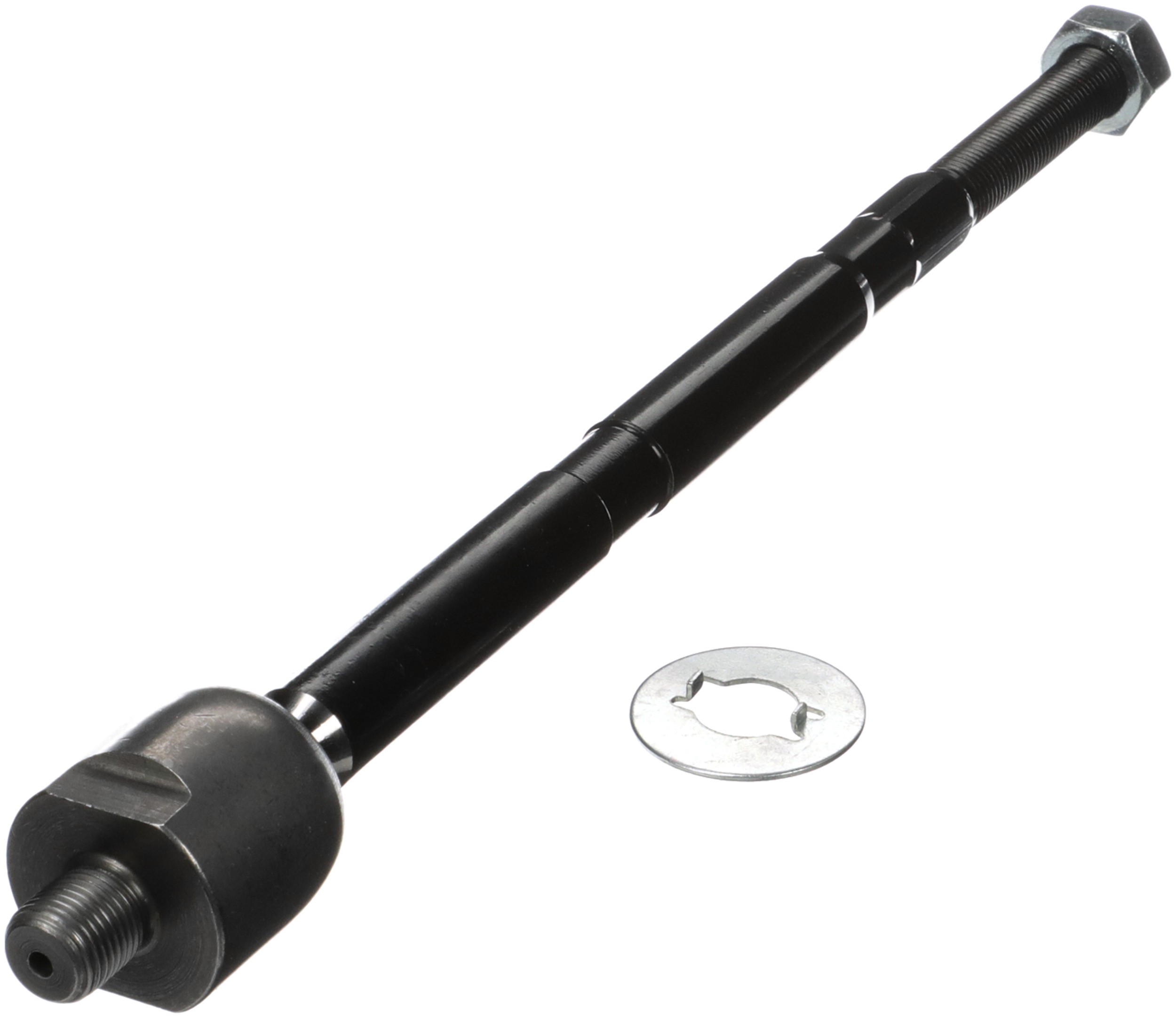

Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Grade Type	Standard Replacement
Housing Material	Steel
Width	38 MM
Adjustable	Yes
Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
36	0.709 IN
36	18.00 MM
627	1.65 LB
Pre-greased	Yes
Length – Stud Centre to End	303.00 MM
Length – Stud Centre to End	11.929 IN
Height	38.00 MM
Position(s)	Inner
Length	345.00 MM
End 2 Thread Direction	Clockwise (Right)
End 2 Gender	Male
End 1 Gender	Male
Color	Black
9091	Steel
Grease Fitting Included	No
Dust Boot Included	No
Type	Straight
Mounting Hardware Included	Yes
