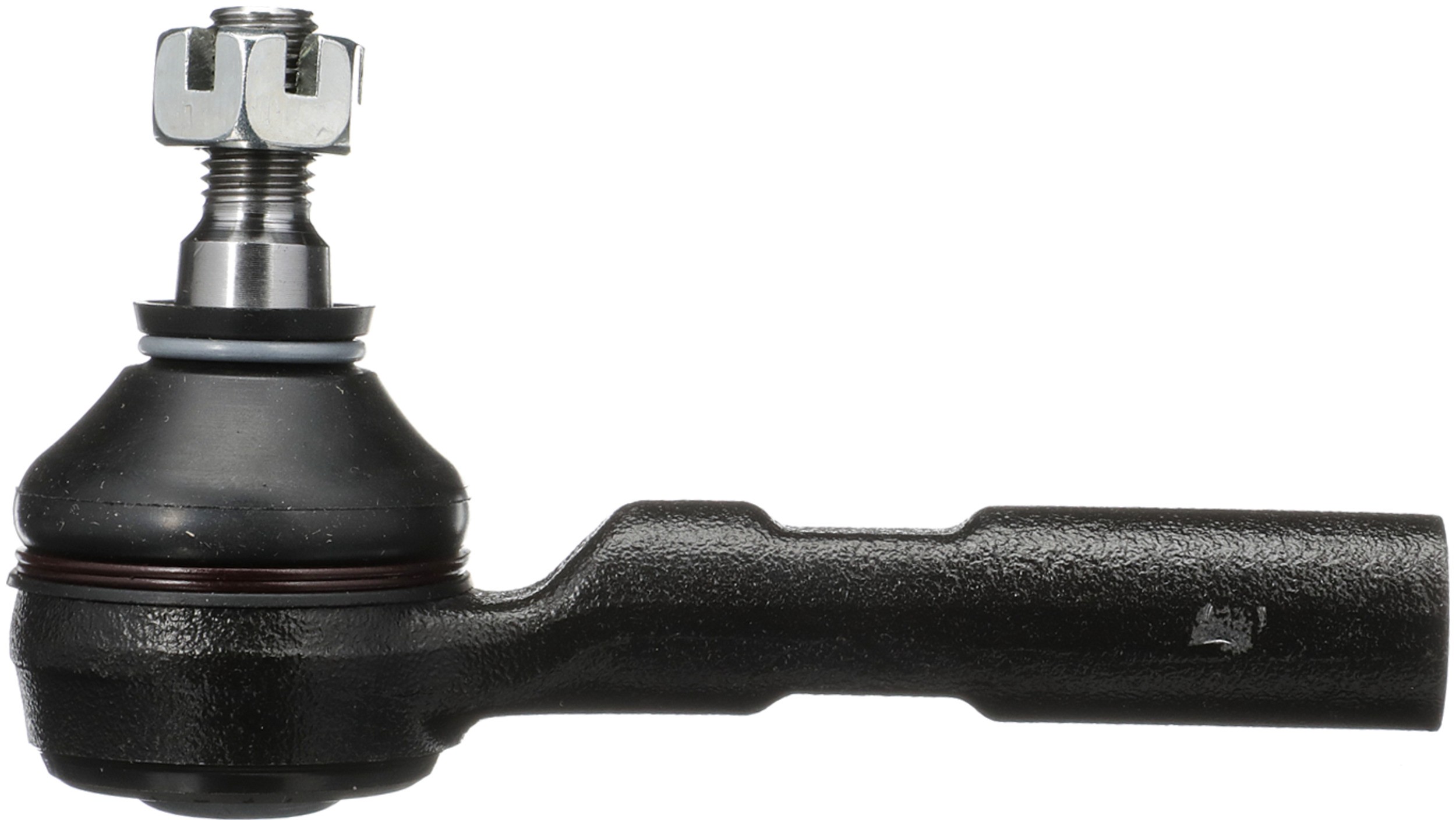

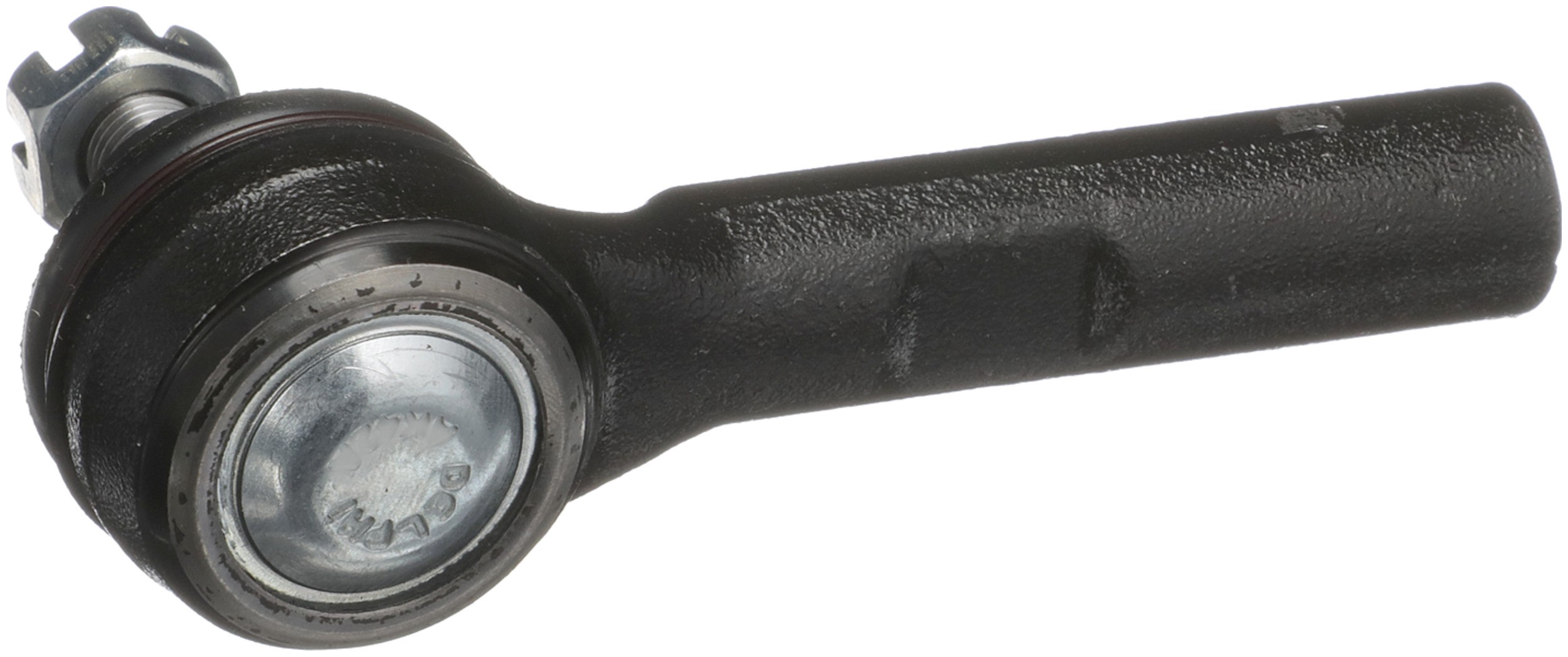

Delphi TA5201 Steering Tie Rod End

Delphi TA5201 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Grade Type	Standard Replacement
36	18.50 MM
627	0.76 LB
662	0.555 IN
662	14.10 MM
Mounting Hardware Included	Yes
Type	Straight
Width	41 MM
Stud Length	14.10 MM
Stud Length	0.555 IN
Pre-greased	Yes
Length	120.00 MM
Color	Black
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Length – Stud Centre to End	100.00 MM
Length – Stud Centre to End	3.937 IN
Height	67.00 MM
Position(s)	Outer
Greaseable	No
Adjustable	No
Dust Boot Included	Yes
Grease Fitting Included	No
1786	0.555 IN
1786	14.10 MM
36	0.728 IN
881	Threaded
9090	Rubber
9091	Steel
Housing Material	Steel
