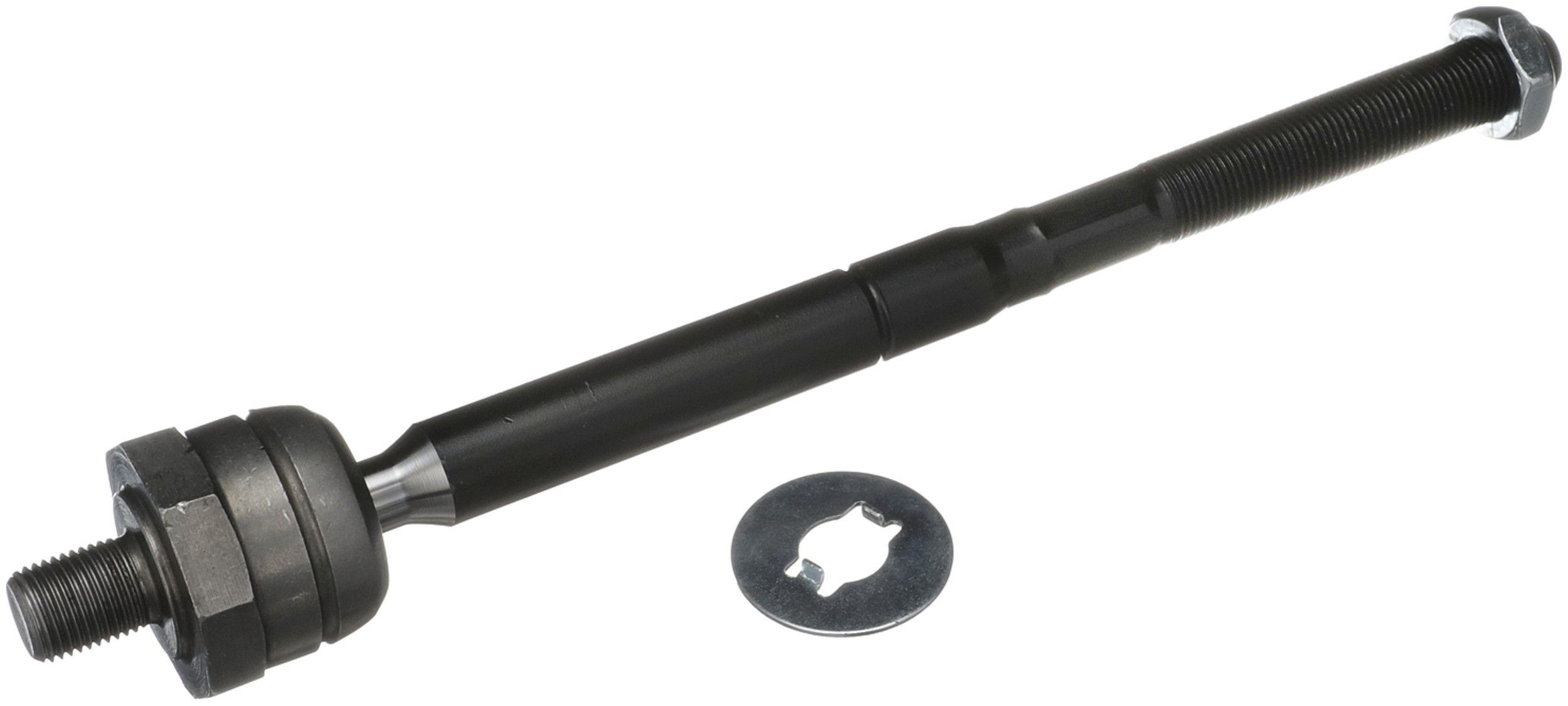

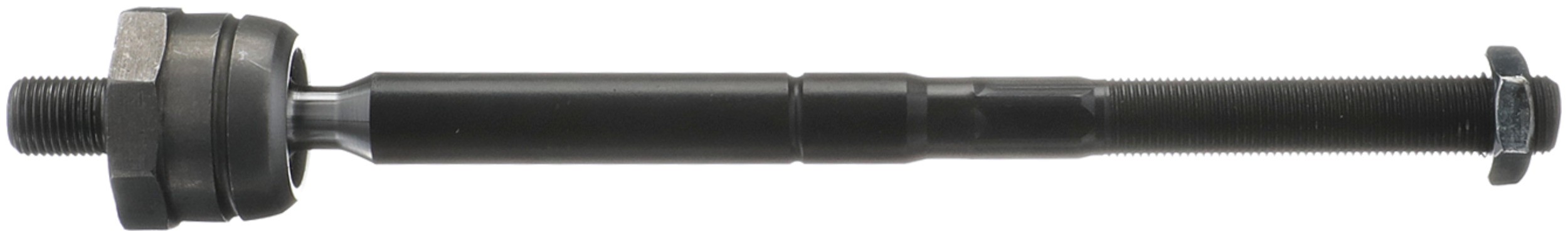

Delphi TA5205 Steering Tie Rod End

Delphi TA5205 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Type	Straight
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	No
Housing Material	Steel
Adjustable	Yes
Dust Boot Included	No
Bearing Material	Plastic
Length	368.00 MM
Width	37 MM
Position(s)	Inner
Greaseable	No
End 2 Thread Direction	Clockwise (Right)
Height	37.00 MM
Length – Stud Centre to End	12.953 IN
Length – Stud Centre to End	329.00 MM
9091	Steel
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
End 1 Thread Direction	Clockwise (Right)
627	1.14 LB
36	18.00 MM
36	0.709 IN
