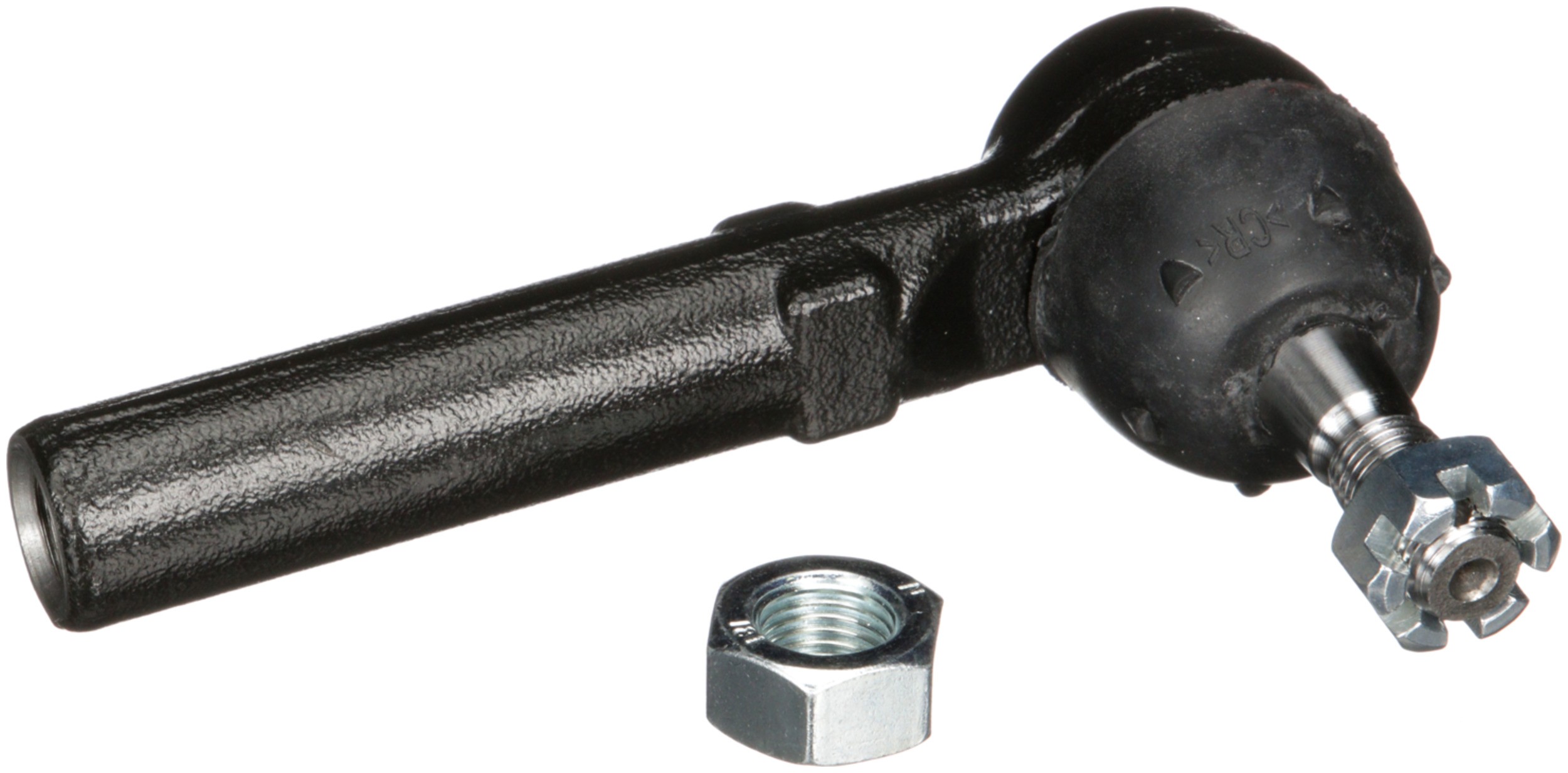

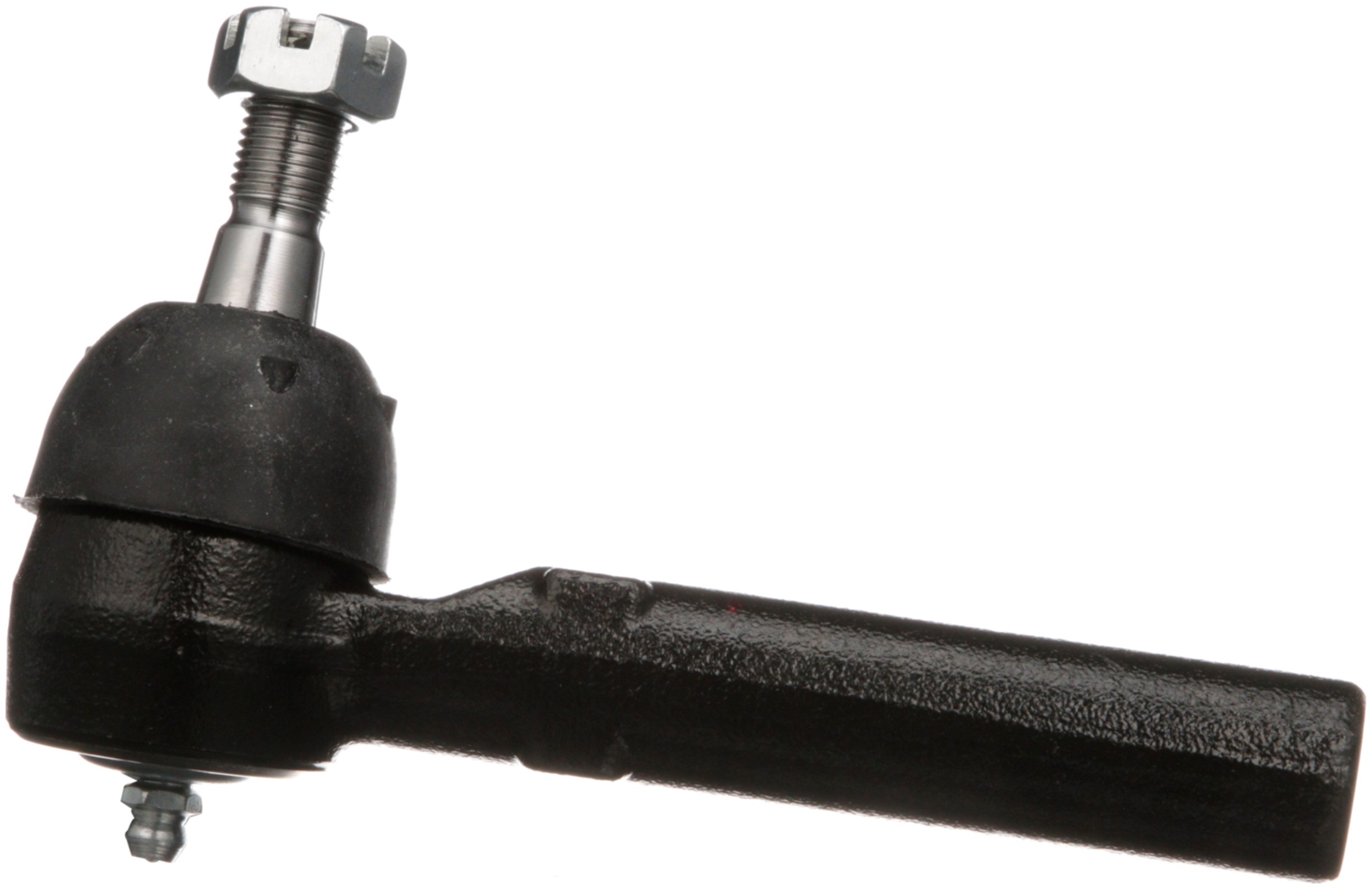

Delphi TA5207 Steering Tie Rod End

Delphi TA5207 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

End 2 Thread Direction	Clockwise (Right)
36	0.866 IN
36	22.00 MM
627	1.25 LB
662	0.591 IN
662	15.00 MM
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Outer
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	Yes
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	Yes
Pre-greased	Yes
End 2 Gender	Female
Color	Black
1786	0.591 IN
1786	15.00 MM
Length – Stud Centre to End	126.00 MM
Length – Stud Centre to End	4.961 IN
Height	95.00 MM
Width	39.5 MM
Stud Length	15.00 MM
Stud Length	0.591 IN
Length	148.00 MM

Vehicle Applications:

Make	Model	Years
Buick	Reatta	1988 to 1991
Buick	Riviera	1986 to 1991
Cadillac	Allante	1987 to 1991
Cadillac	Eldorado	1986 to 1991
Cadillac	Seville	1986 to 1991
Oldsmobile	Toronado	1986 to 1991
