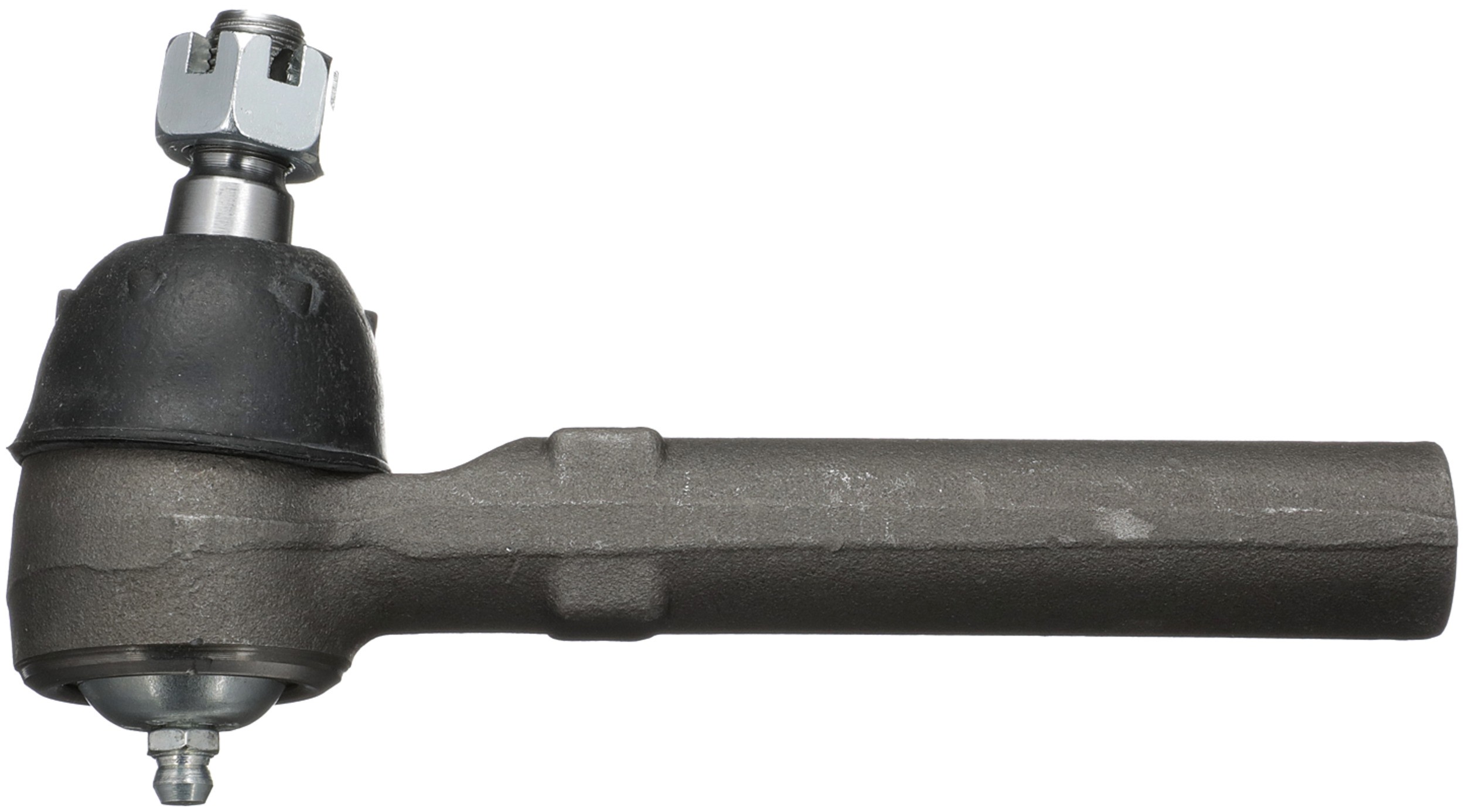

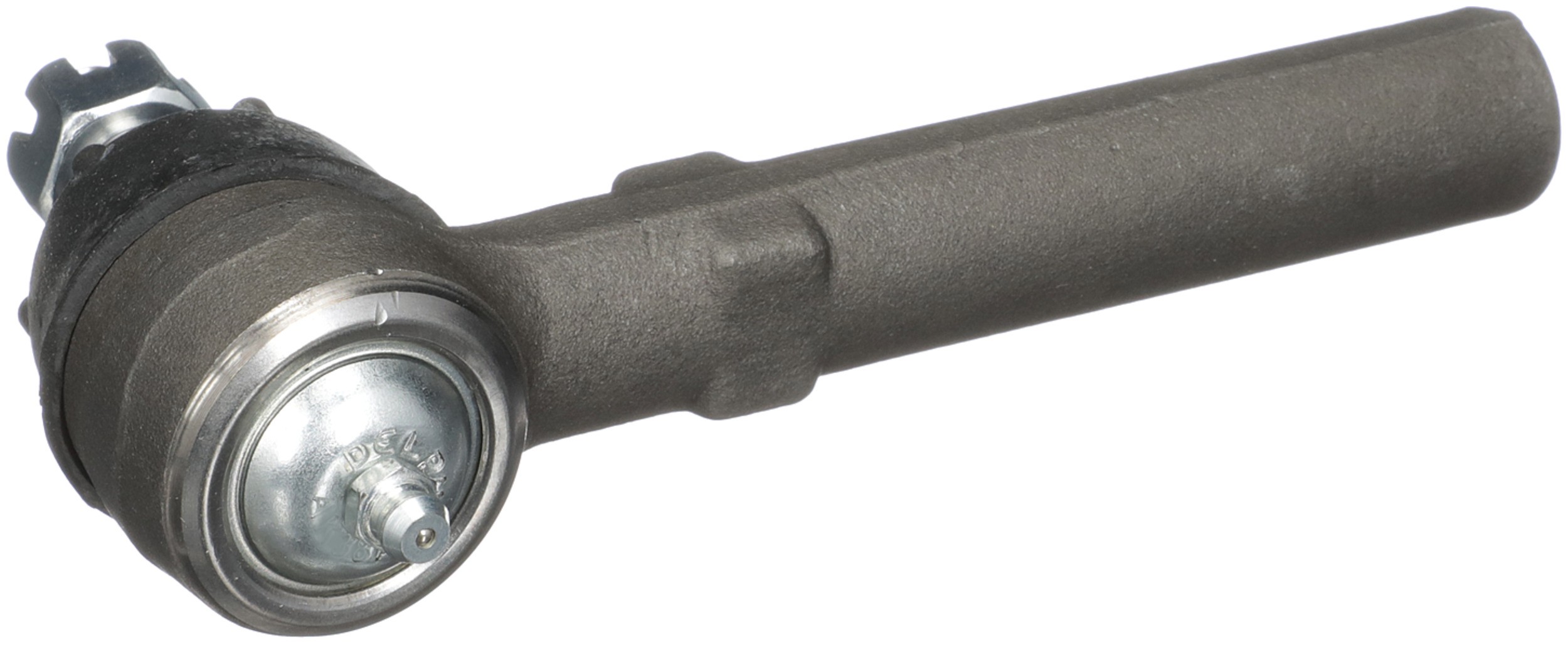

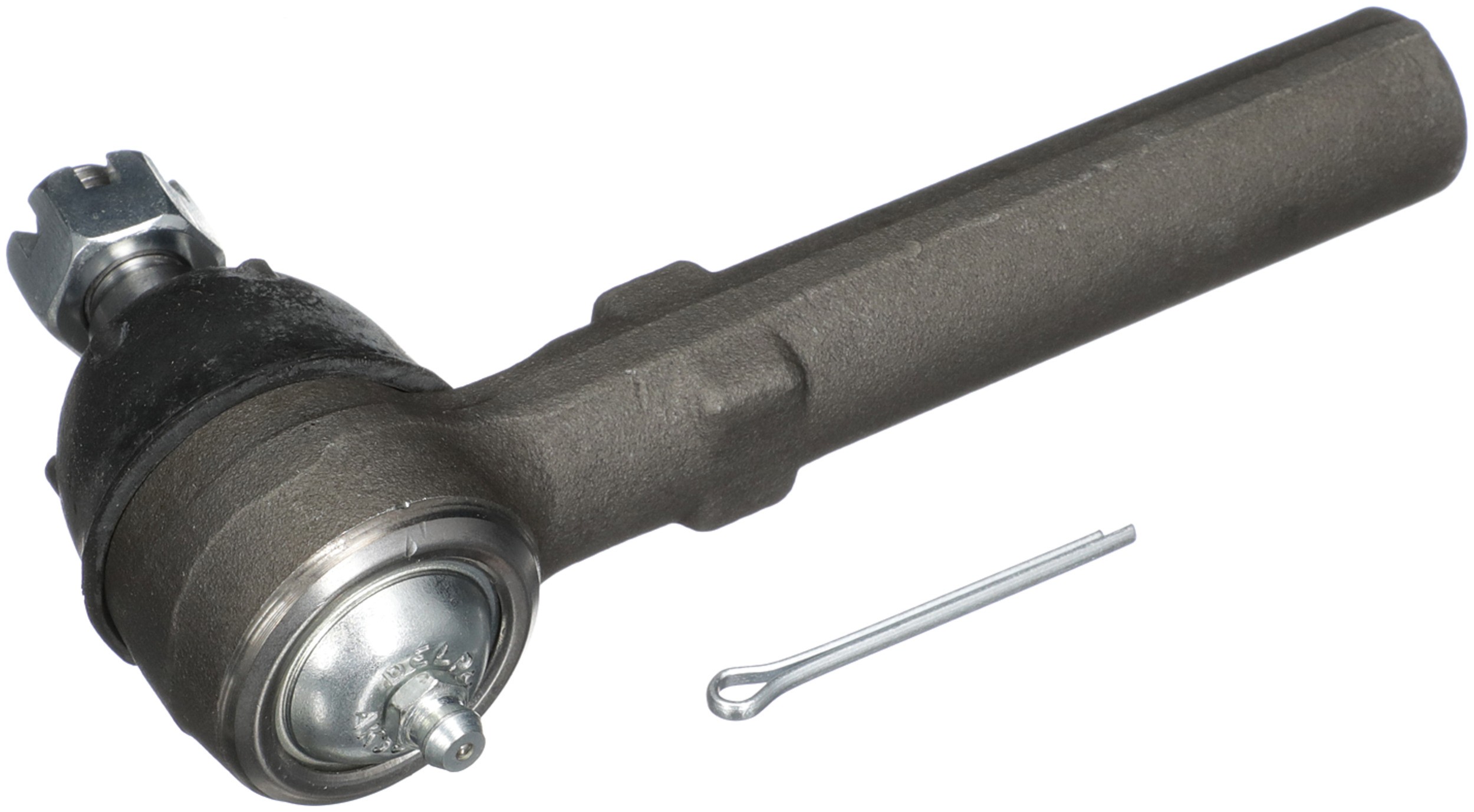

Delphi TA5210 Steering Tie Rod End

Delphi TA5210 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bearing Material	Plastic
1786	0.626 IN
1786	15.90 MM
36	0.866 IN
36	22.00 MM
627	1.1 LB
662	0.626 IN
662	15.90 MM
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Outer
Length – Stud Centre to End	138.50 MM
Length – Stud Centre to End	5.453 IN
Height	87.80 MM
Width	39.5 MM
Stud Length	15.90 MM
Stud Length	0.626 IN
Length	159.00 MM
Color	Black
End 2 Gender	Female
Pre-greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	Yes
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
