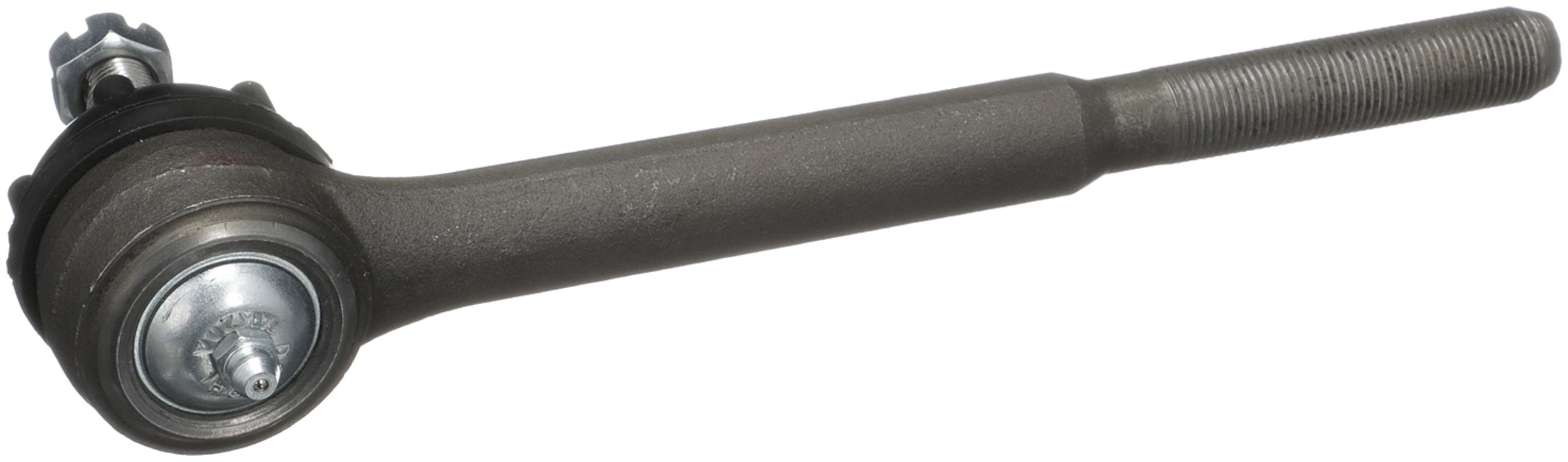

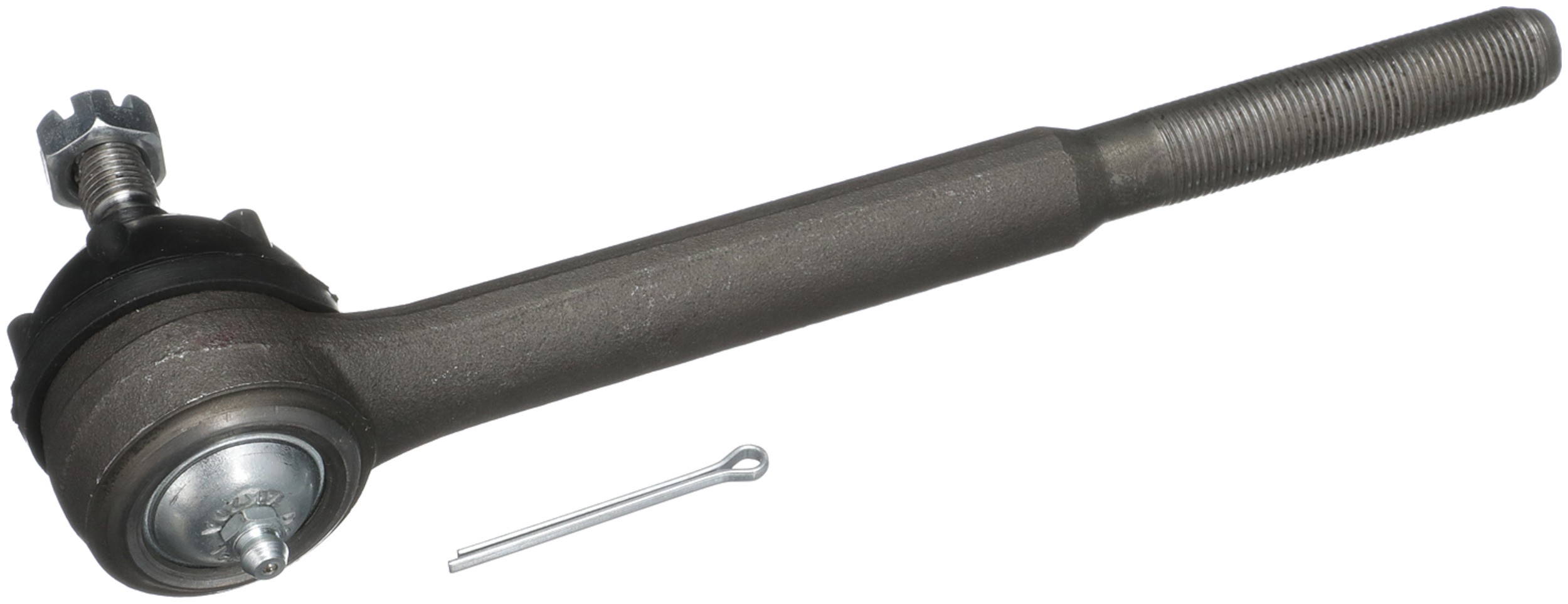

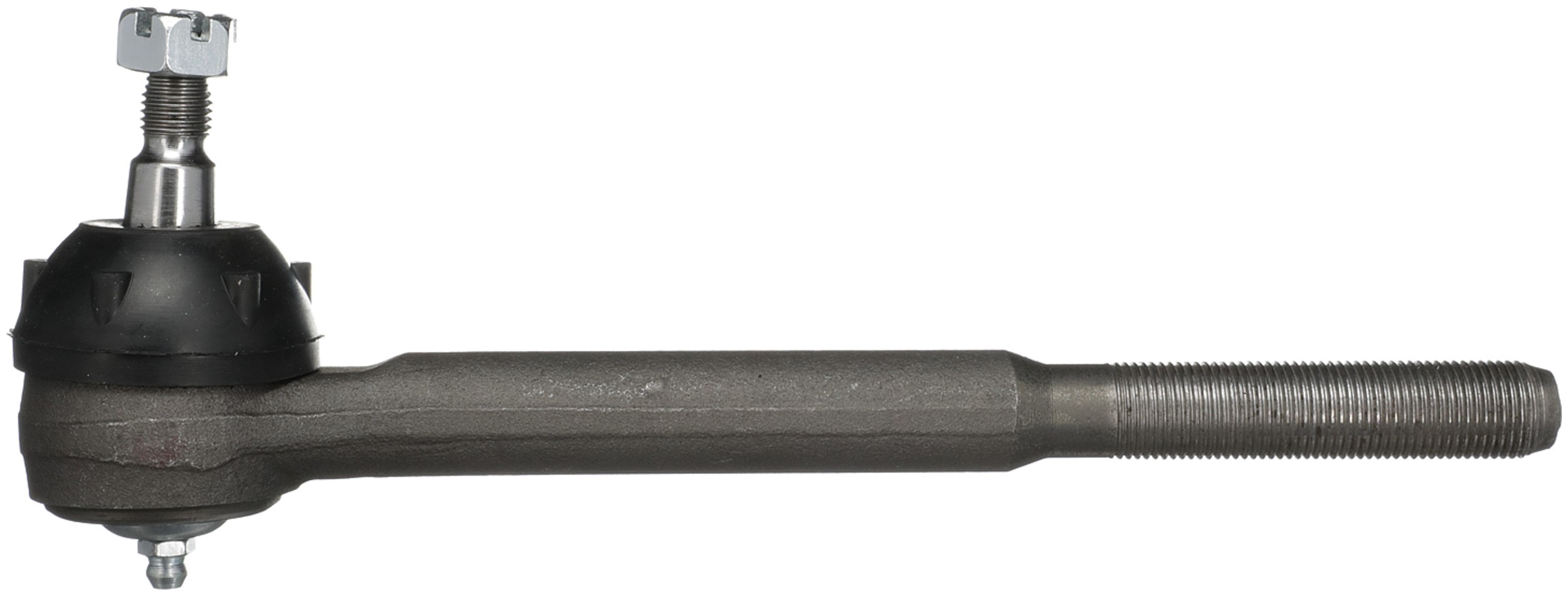

Delphi TA5212 Steering Tie Rod End

Delphi TA5212 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi includes the necessary accessories for a complete job
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

End 1 Thread Direction	Clockwise (Right)
Length	240.00 MM
Stud Length	0.626 IN
Stud Length	15.90 MM
Width	43 MM
Height	86.00 MM
Position(s)	Outer
881	Threaded
9090	Rubber
9091	Steel
1786	0.626 IN
1786	15.90 MM
36	0.669 IN
36	17.00 MM
627	1.72 LB
662	0.626 IN
662	15.90 MM
Color	Gray
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	Yes
Boot Colour	Black
End 2 Thread Direction	Clockwise (Right)
Bearing Material	Plastic

Vehicle Applications:

Make	Model	Years
Buick	GS 350	1968 to 1969
Buick	GS 400	1968 to 1969
Buick	GS 455	1970 to 1970
Buick	GS	1970 to 1970
Buick	Gran Sport	1965 to 1966
Buick	Skylark	1964 to 1970
Buick	Special	1964 to 1969
Buick	Sportwagon	1964 to 1970
Chevrolet	Chevelle	1964 to 1970
Chevrolet	El Camino	1964 to 1970
Chevrolet	Monte Carlo	1970 to 1970
Oldsmobile	442	1965 to 1970
Oldsmobile	Cutlass Supreme	1967 to 1970
Oldsmobile	Cutlass	1964 to 1970
Oldsmobile	F85	1964 to 1970
Oldsmobile	Vista Cruiser	1964 to 1970
Pontiac	GTO	1964 to 1970
Pontiac	LeMans	1964 to 1970
Pontiac	Tempest	1964 to 1970
