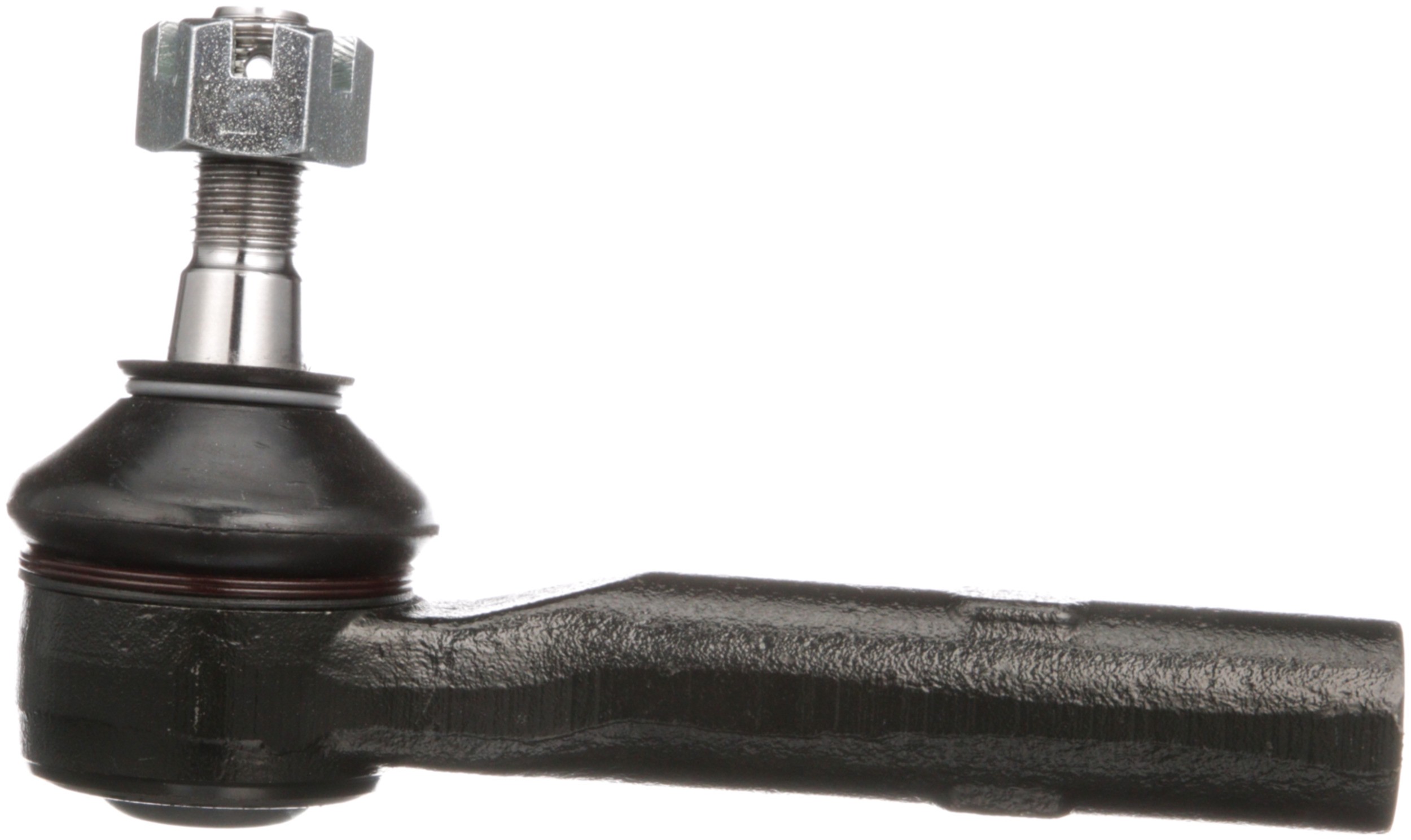

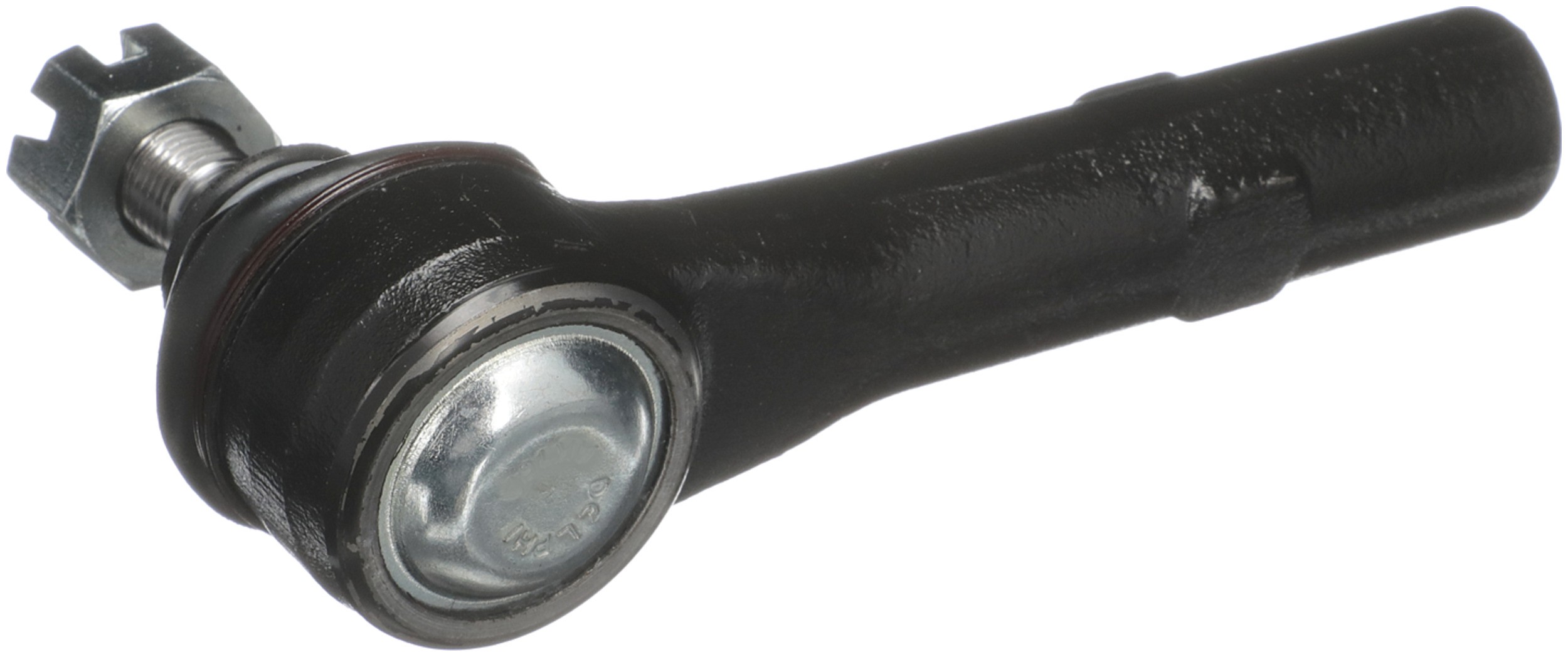

Delphi TA5215 Steering Tie Rod End

Delphi TA5215 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

9091	Steel
Length	161.00 MM
Stud Length	0.709 IN
Stud Length	18.00 MM
Width	46.5 MM
Height	95.10 MM
Length – Stud Centre to End	5.433 IN
Length – Stud Centre to End	138.00 MM
1786	0.709 IN
1786	18.00 MM
36	1.024 IN
36	26.00 MM
627	1.84 LB
662	0.709 IN
662	18.00 MM
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	No
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Female
Color	Black
9090	Rubber
881	Threaded
Position(s)	Outer
