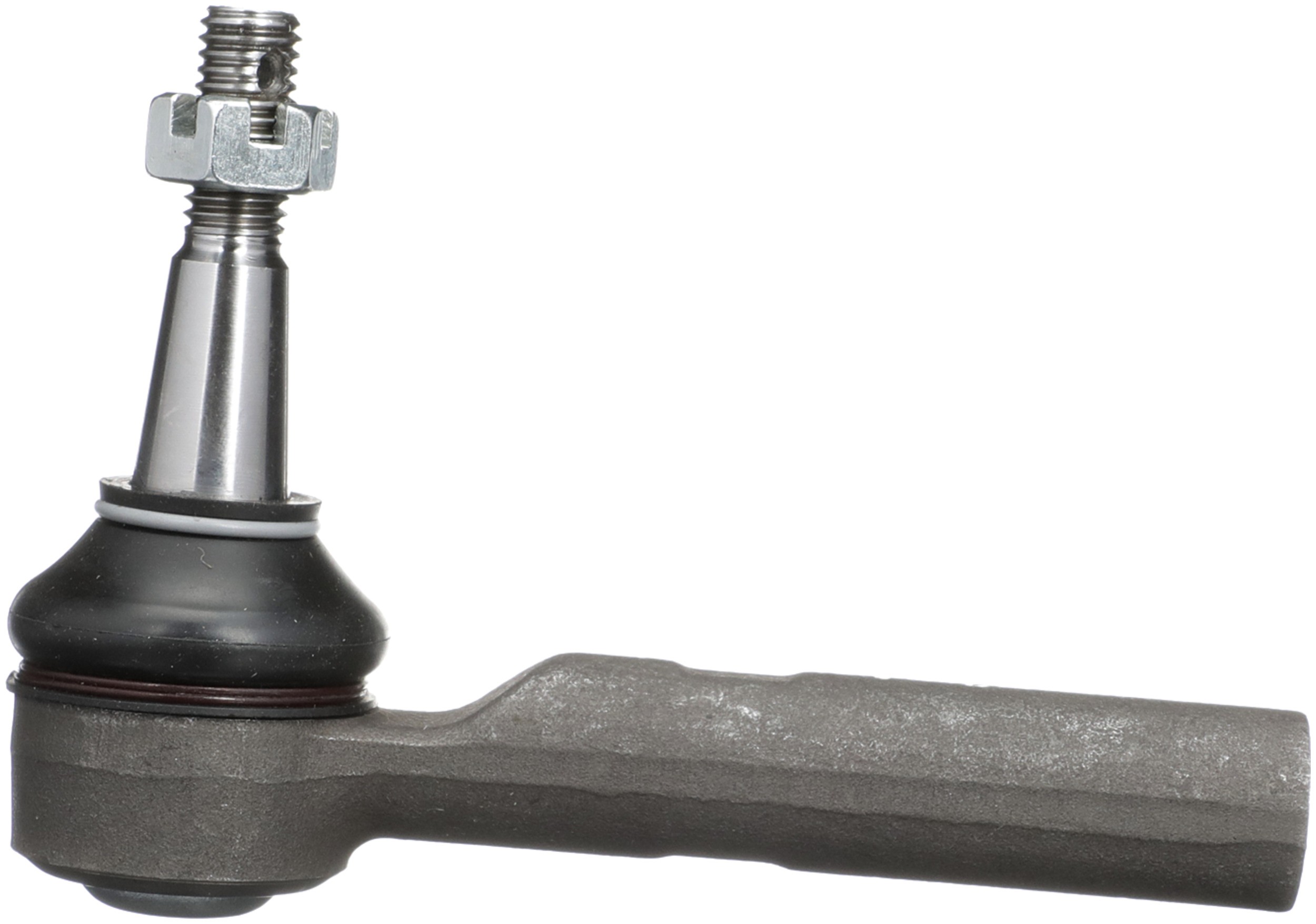

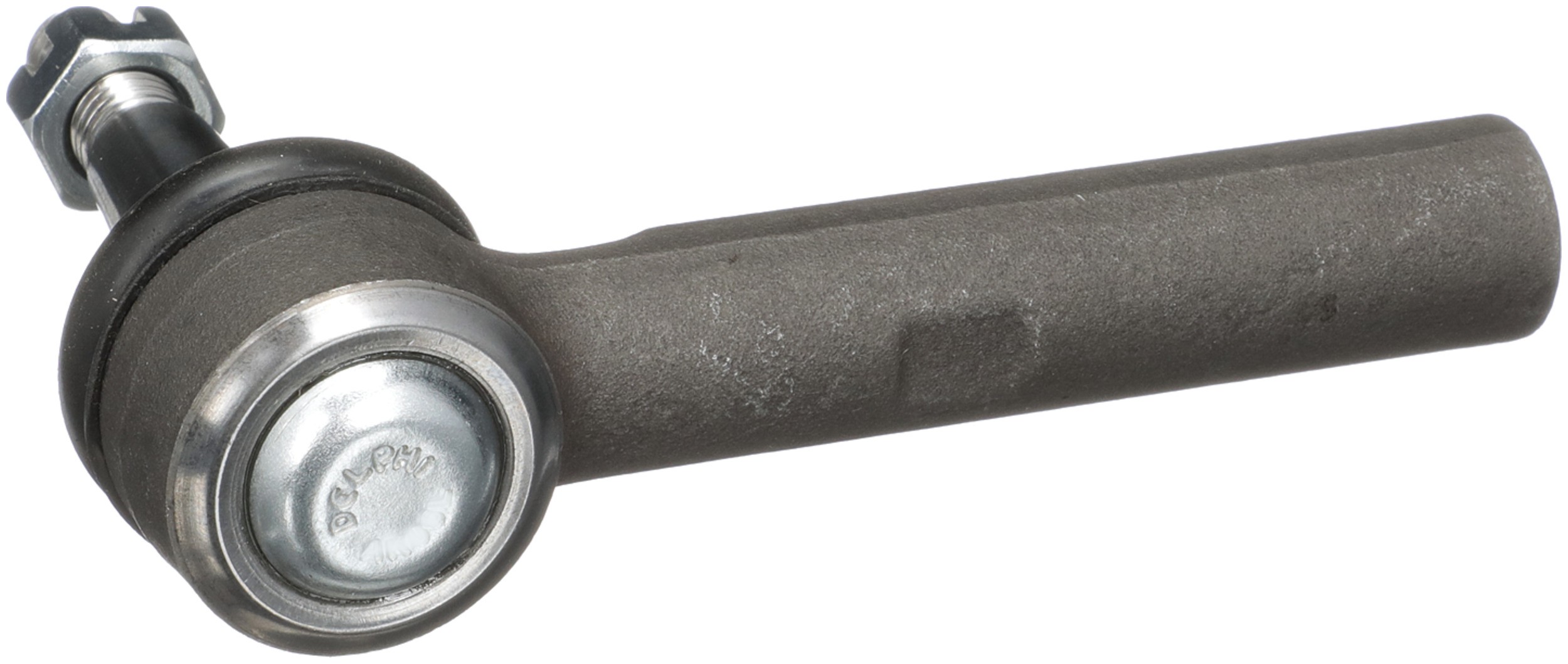

Delphi TA5216 Steering Tie Rod End

Delphi TA5216 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

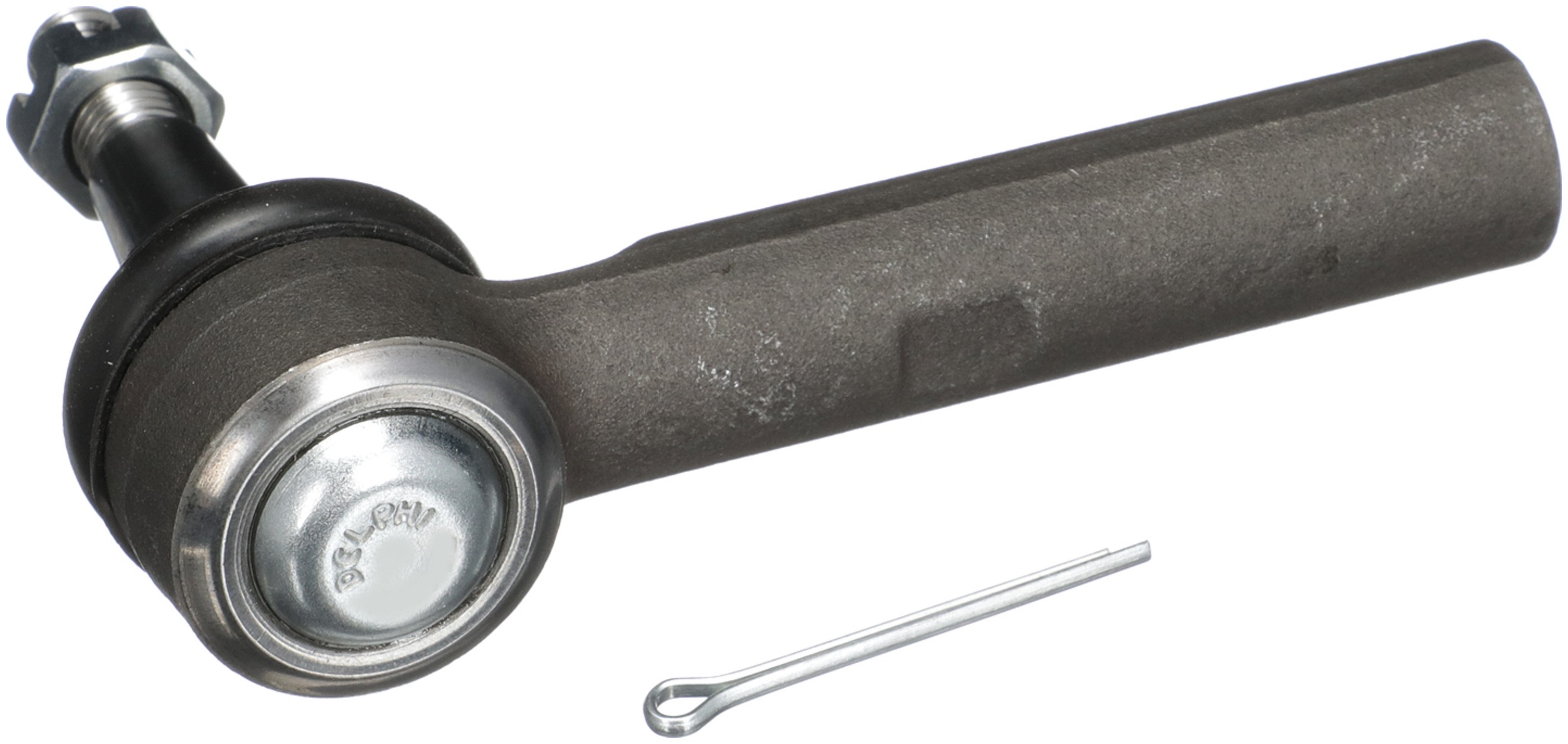

Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Grease Fitting Included	No
Height	110.50 MM
Width	41 MM
Stud Length	18.20 MM
Stud Length	0.717 IN
Length	144.00 MM
Position(s)	Outer
881	Threaded
662	18.20 MM
662	0.717 IN
627	1.19 LB
36	19.80 MM
36	0.780 IN
1786	18.20 MM
1786	0.717 IN
9090	Rubber
9091	Steel
Color	Black
End 2 Gender	Female
Pre-greased	Yes
Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
