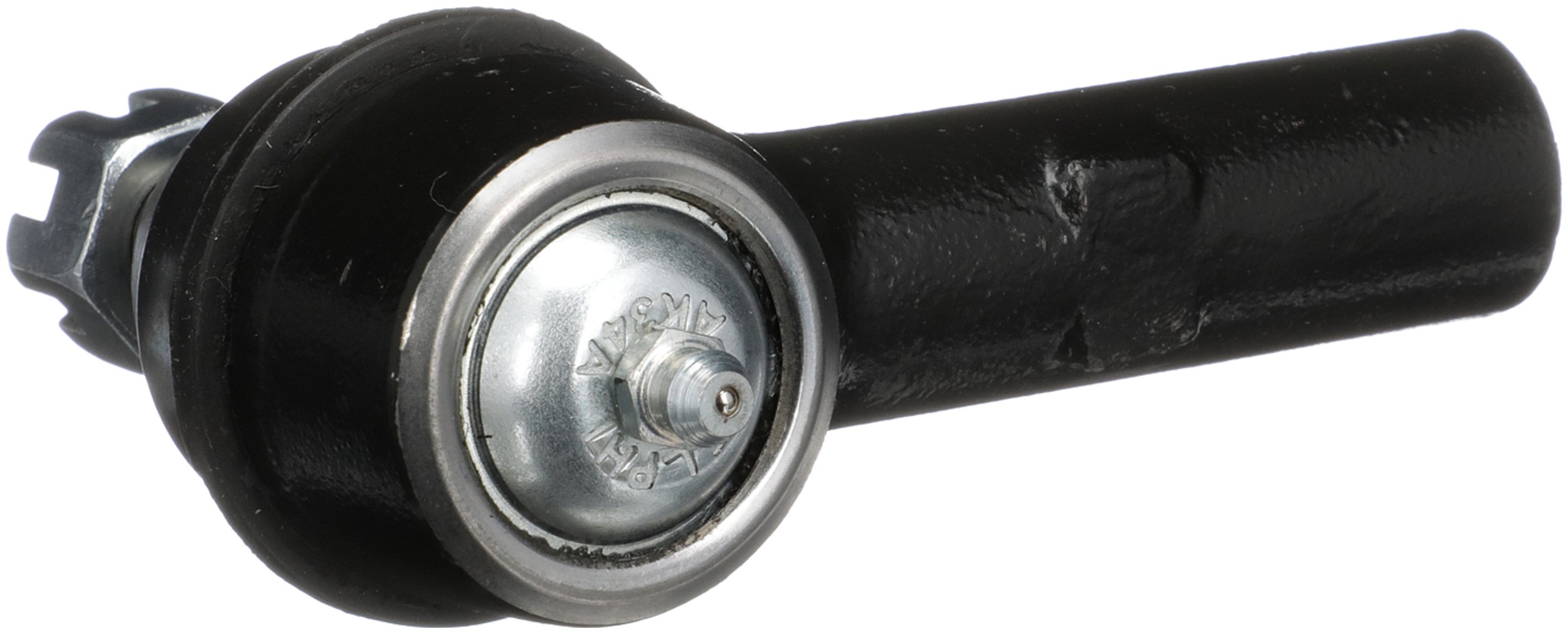

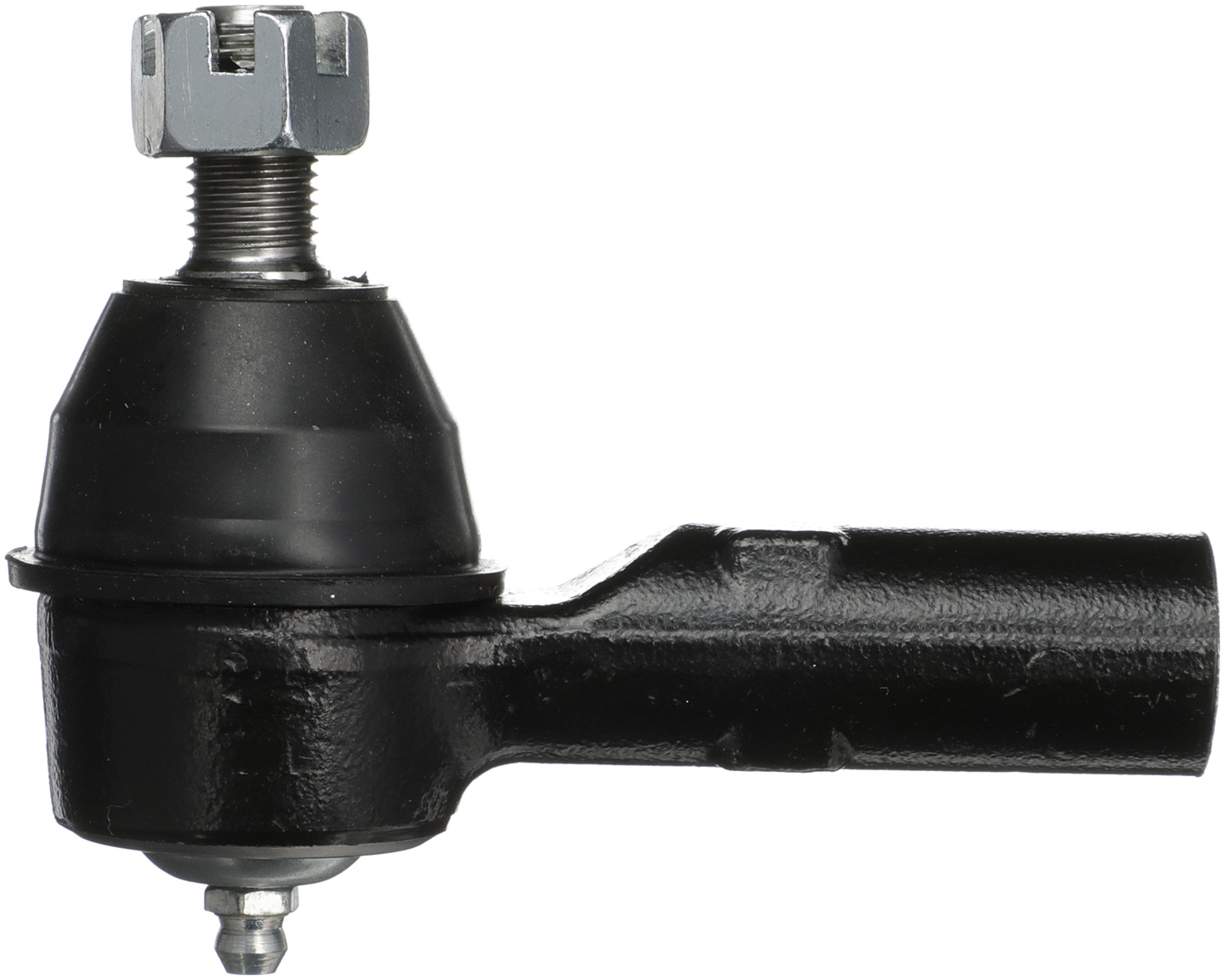

Delphi TA5217 Steering Tie Rod End

Delphi TA5217 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

1786	0.593 IN
Position(s)	Outer
881	Threaded
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	Yes
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
9090	Rubber
9091	Steel
Grease Fitting Included	Yes
Color	Black
End 2 Gender	Female
Dust Boot Included	Yes
Pre-greased	Yes
Length – Stud Centre to End	84.00 MM
Length – Stud Centre to End	3.307 IN
Height	85.00 MM
Width	39.5 MM
Stud Length	15.05 MM
Stud Length	0.593 IN
Length	106.00 MM
662	15.05 MM
662	0.593 IN
627	0.9 LB
36	22.00 MM
36	0.866 IN
1786	15.05 MM
