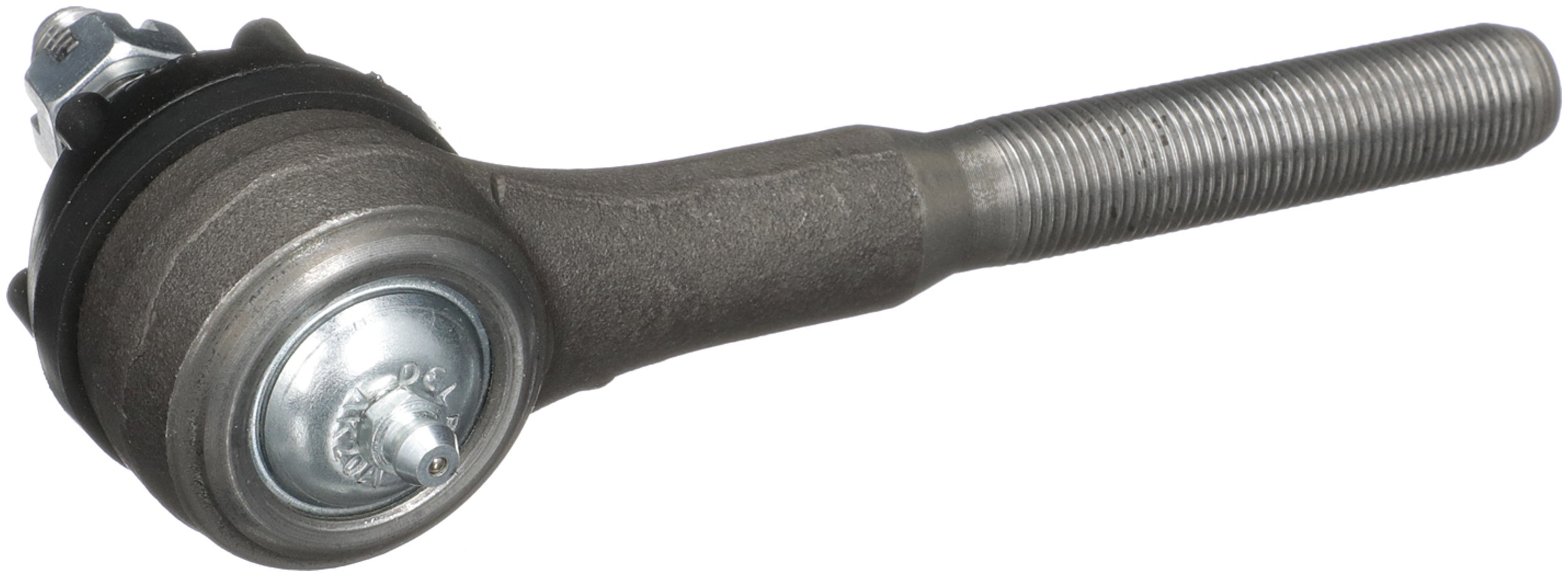

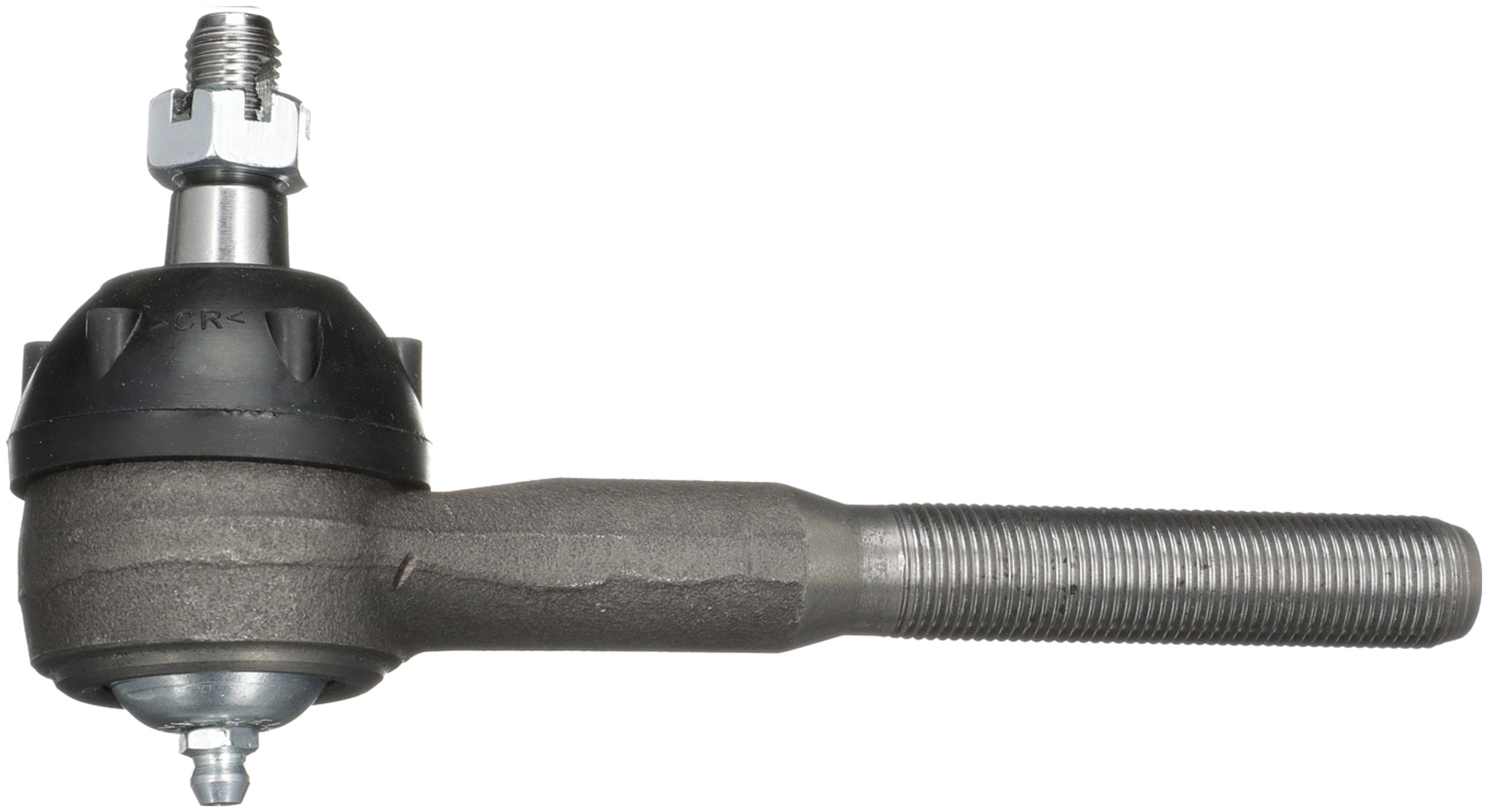

Delphi TA5223 Steering Tie Rod End

Delphi TA5223 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Grease Fitting Included	Yes
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	Yes
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Male
Color	Black
Length	168.00 MM
Stud Length	0.626 IN
Stud Length	15.90 MM
Width	43 MM
Height	86.00 MM
Length – Stud Centre to End	5.713 IN
Length – Stud Centre to End	145.10 MM
Position(s)	Outer
881	Threaded
9090	Rubber
9091	Steel
1786	0.626 IN
1786	15.90 MM
36	0.748 IN
36	19.00 MM
627	1 LB
662	0.626 IN
662	15.90 MM

Vehicle Applications:

Make	Model	Years
Buick	Apollo	1973 to 1974
Chevrolet	Camaro	1968 to 1969
Chevrolet	Chevy II	1968 to 1968
Chevrolet	Nova	1969 to 1974
Oldsmobile	Omega	1973 to 1974
Pontiac	Firebird	1968 to 1968
Pontiac	Ventura	1971 to 1972
