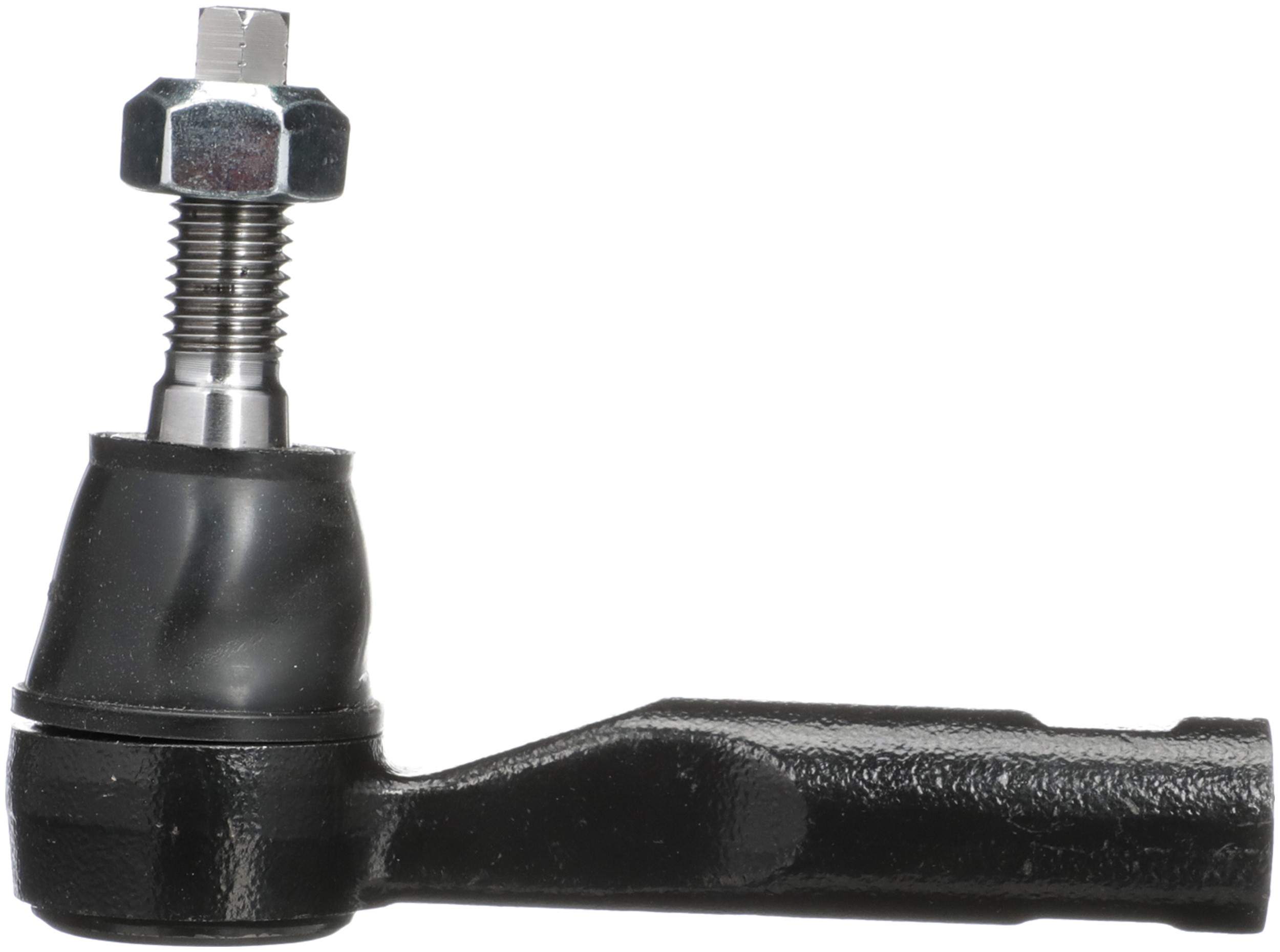

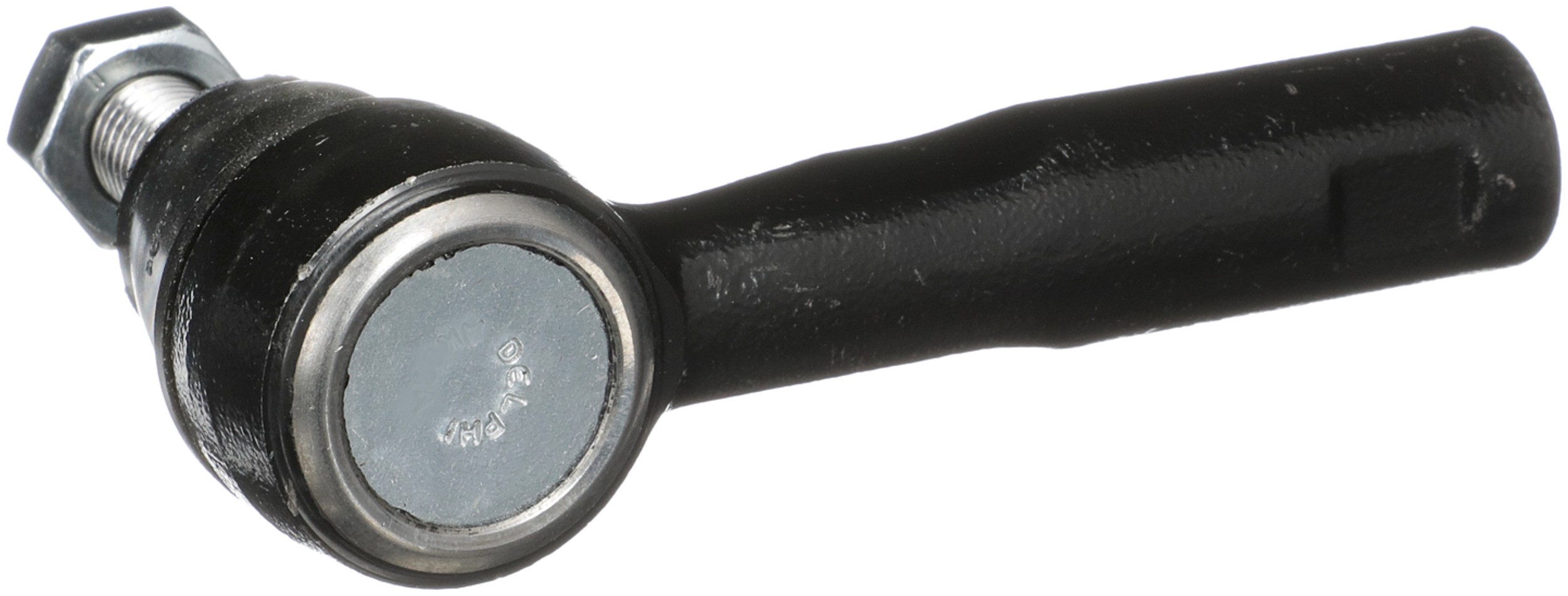

Delphi TA5224 Steering Tie Rod End

Delphi TA5224 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Height	100.00 MM
Width	42 MM
Length	137.00 MM
Stud Length	0.709 IN
Stud Length	18.00 MM
Position(s)	Outer
881	Threaded
End 2 Thread Direction	Clockwise (Right)
End 2 Gender	Female
End 1 Gender	Male
Color	Black
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Pre-greased	Yes
Dust Boot Included	Yes
662	18.00 MM
662	0.709 IN
627	1.35 LB
36	23.60 MM
36	0.929 IN
1786	18.00 MM
1786	0.709 IN
9090	Rubber
9091	Steel

Vehicle Applications:

Make	Model	Years
Chevrolet	Colorado	2006 to 2012
GMC	Canyon	2006 to 2012
Isuzu	i-280	2006 to 2006
Isuzu	i-290	2007 to 2008
Isuzu	i-350	2006 to 2006
Isuzu	i-370	2007 to 2008
