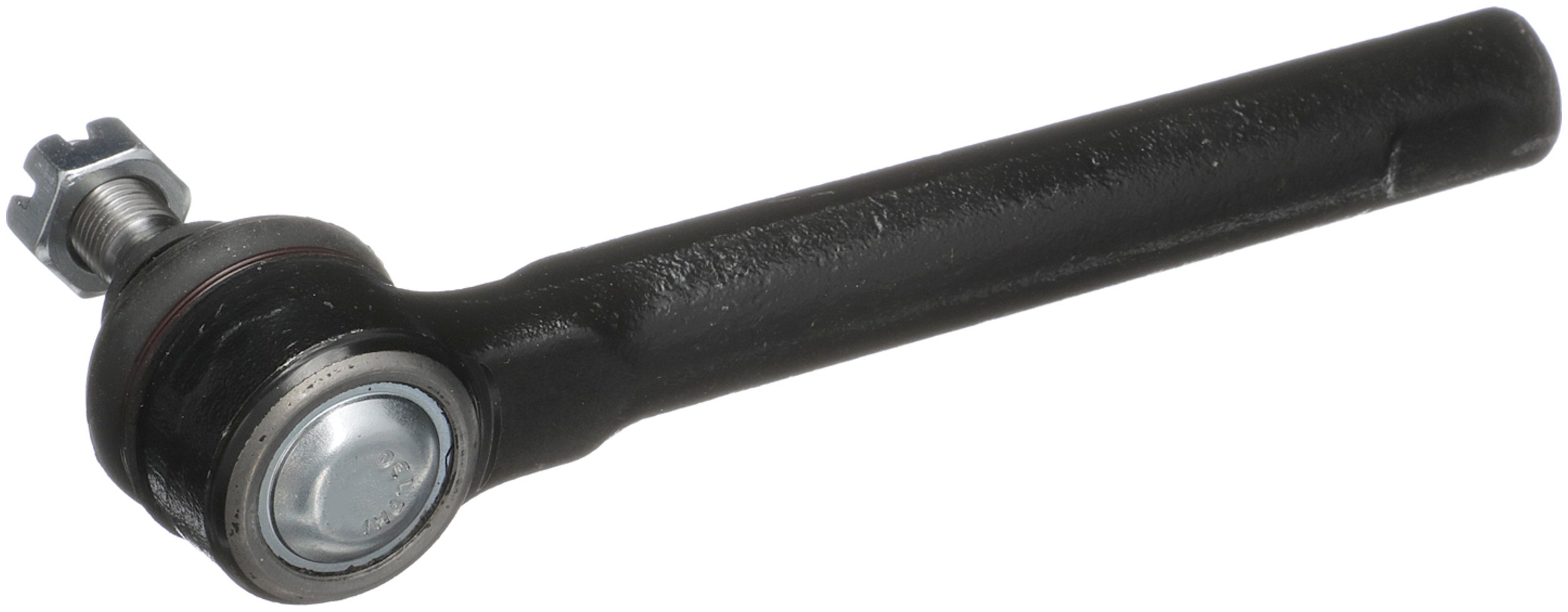

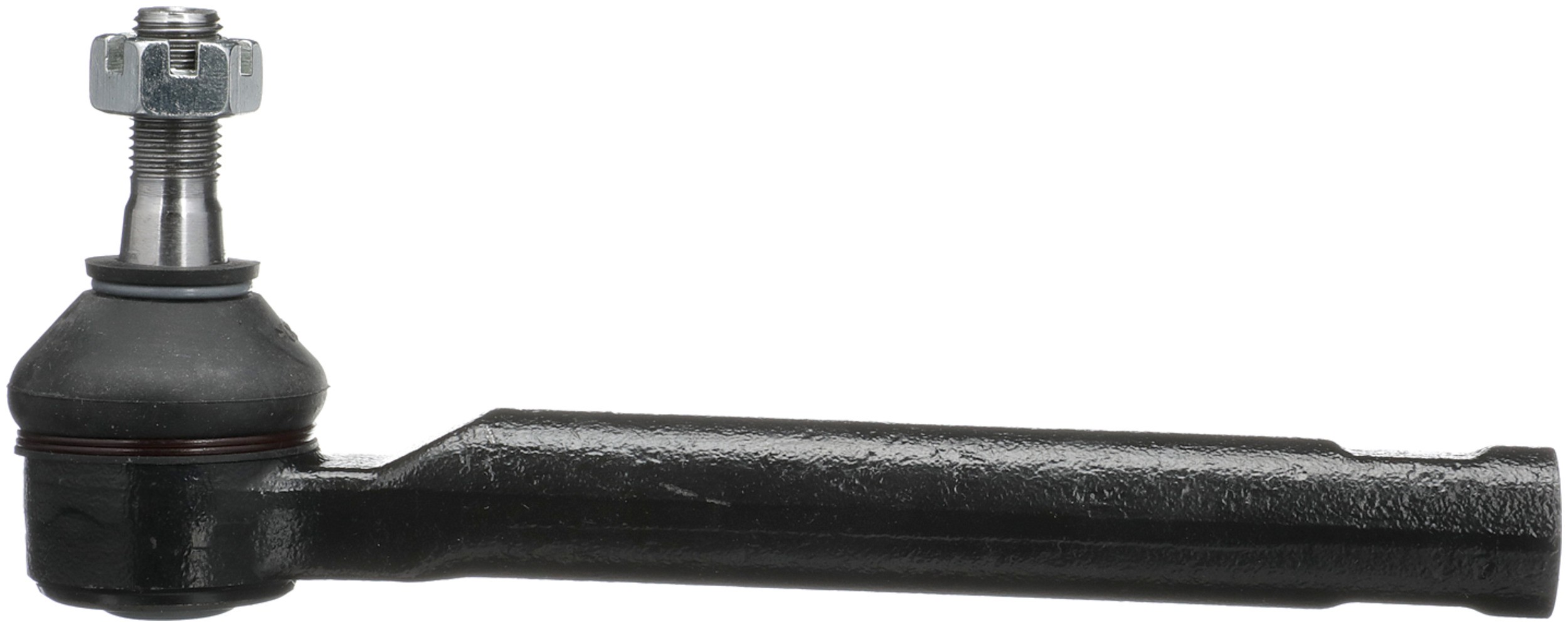

Delphi TA5238 Steering Tie Rod End

Delphi TA5238 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

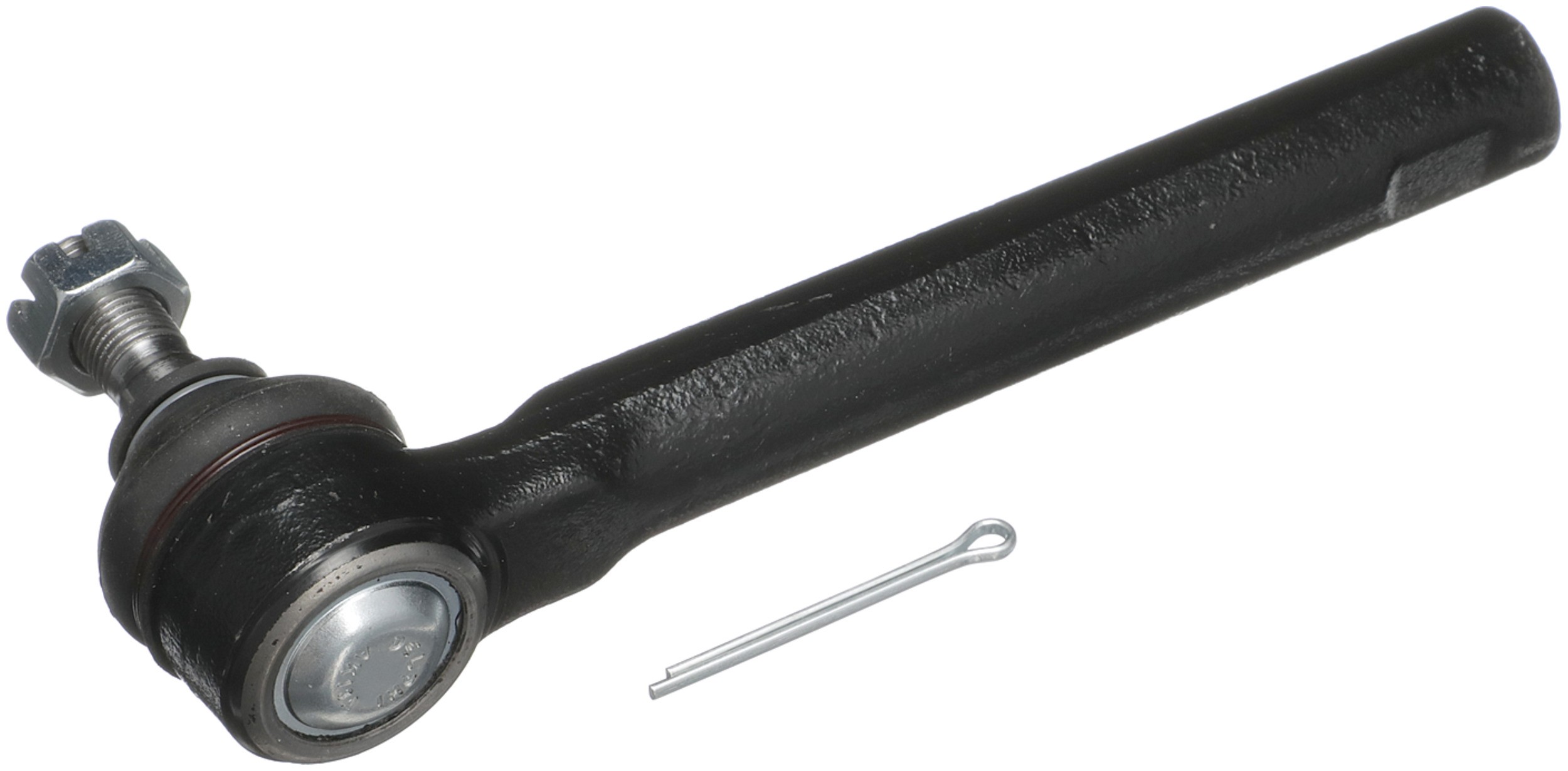

Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Position(s)	Outer
662	15.00 MM
662	0.591 IN
627	1.54 LB
36	22.00 MM
36	0.866 IN
1786	15.00 MM
1786	0.591 IN
881	Threaded
9090	Rubber
9091	Steel
Length – Stud Centre to End	175.50 MM
Length – Stud Centre to End	6.909 IN
Height	77.30 MM
Width	45 MM
Stud Length	15.00 MM
Stud Length	0.591 IN
Length	198.00 MM
Color	Black
End 2 Gender	Female
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
