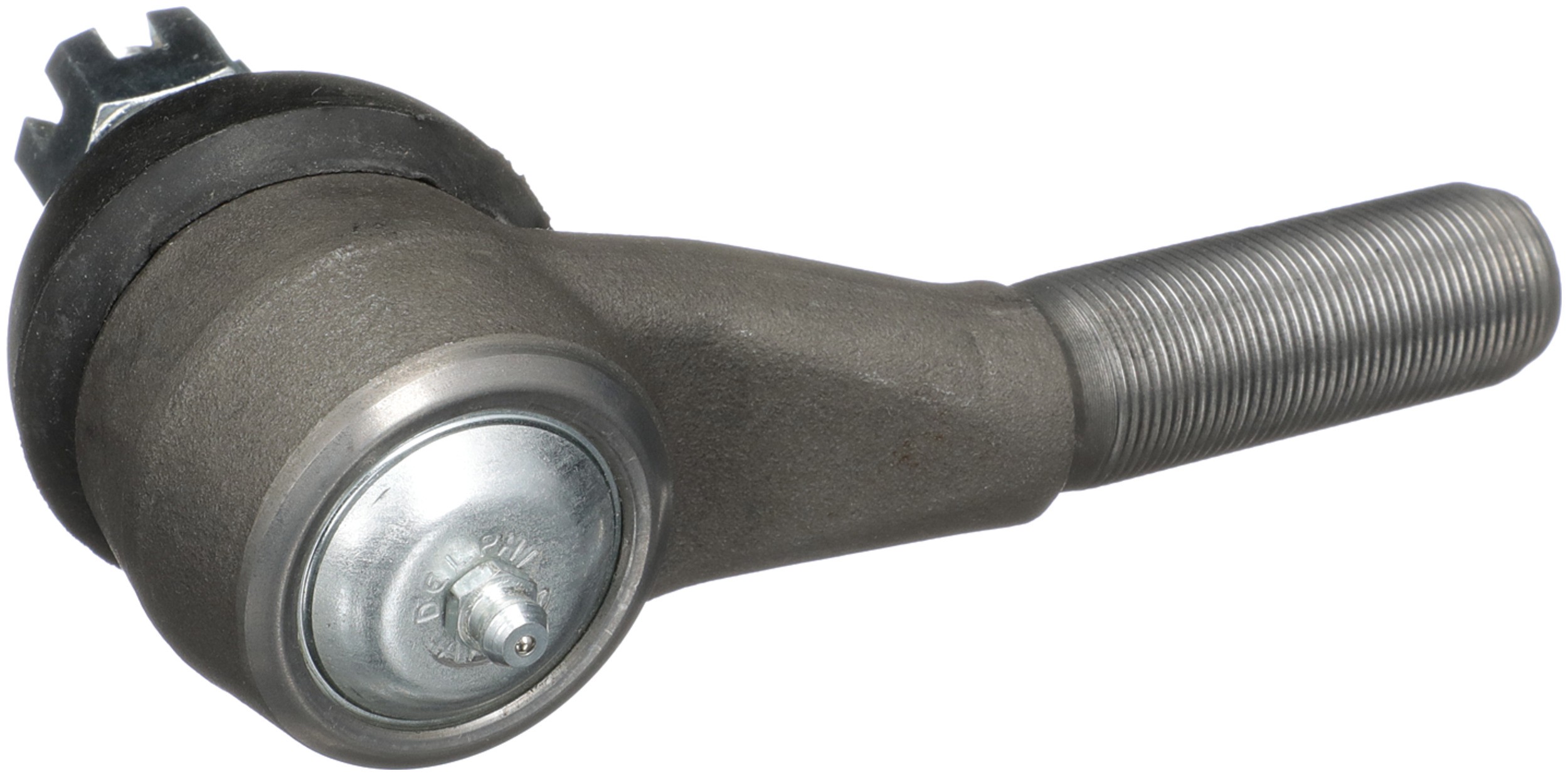

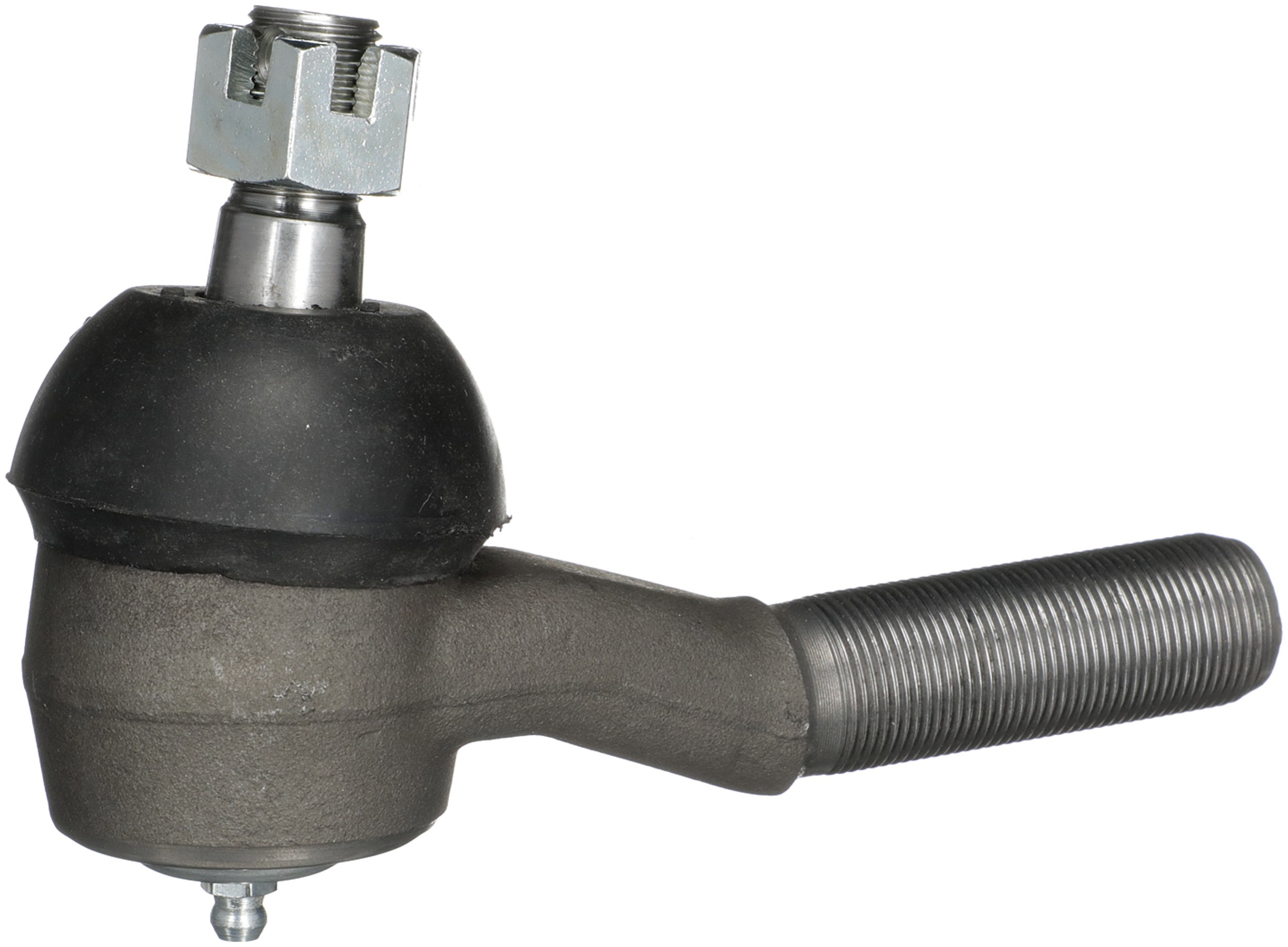

Delphi TA5241 Steering Tie Rod End

Delphi TA5241 Steering Tie Rod End

Features:

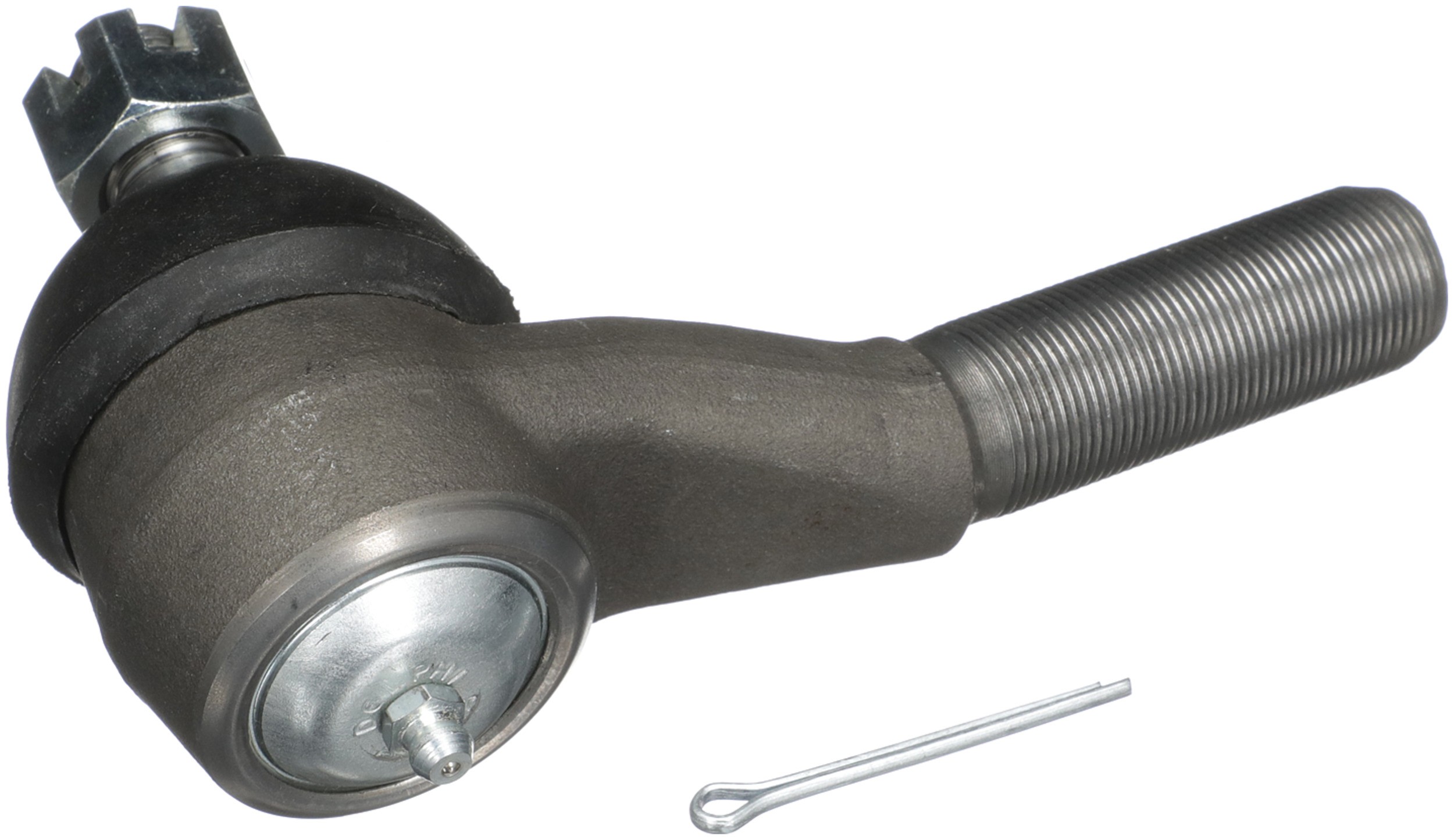

Delphi includes the necessary accessories for a complete job
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

End 2 Thread Direction	Clockwise (Right)
Length – Stud Centre to End	129.50 MM
Length – Stud Centre to End	5.098 IN
Height	104.70 MM
Width	51 MM
Stud Length	19.60 MM
Length	130.00 MM
Stud Length	0.772 IN
Adjustable	No
Greaseable	Yes
Bearing Material	Steel
662	19.60 MM
662	0.772 IN
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Outer
1786	0.772 IN
1786	19.60 MM
36	0.875 IN
36	22.23 MM
627	2.01 LB
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	Yes
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Male
Color	Black
End 1 Thread Direction	Clockwise (Right)
