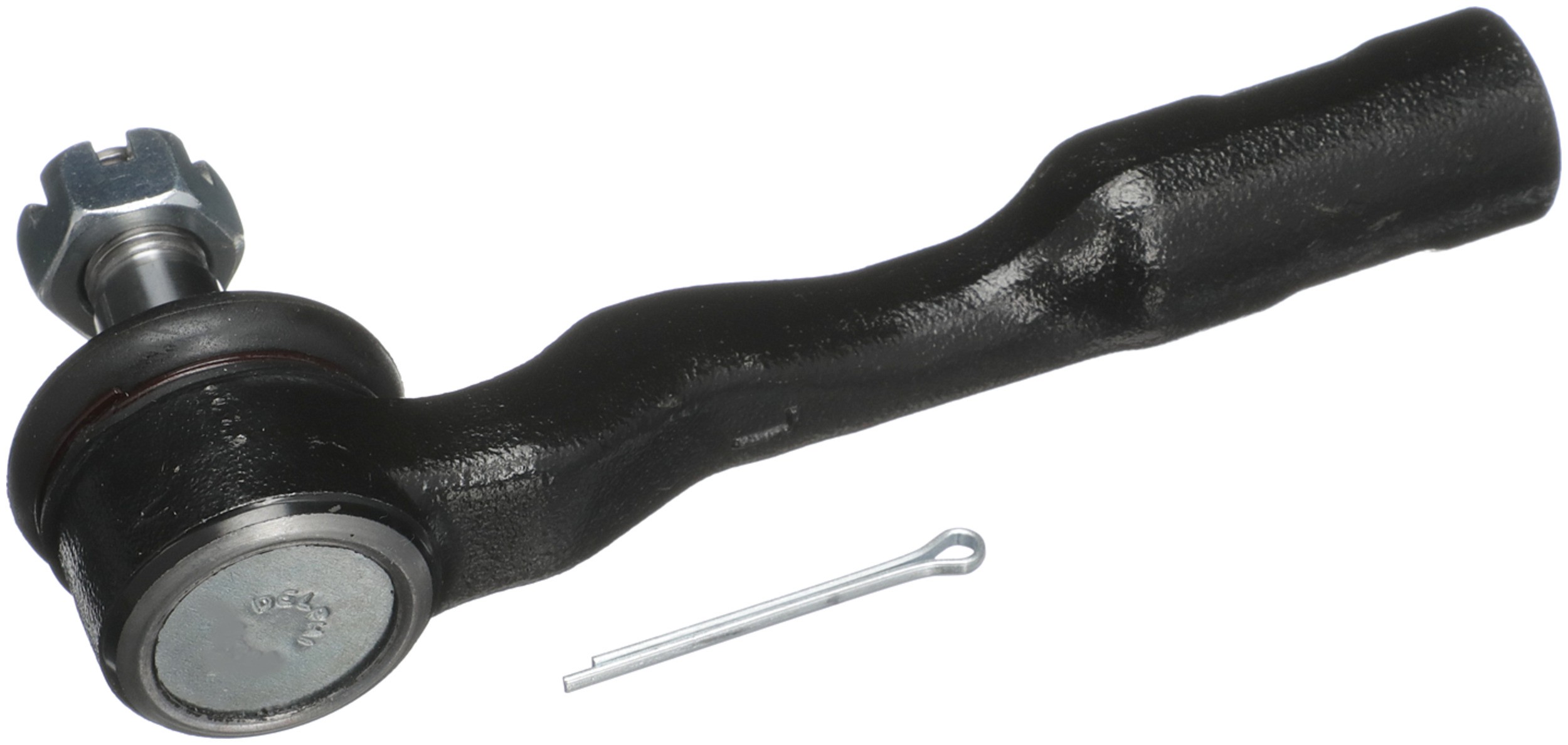

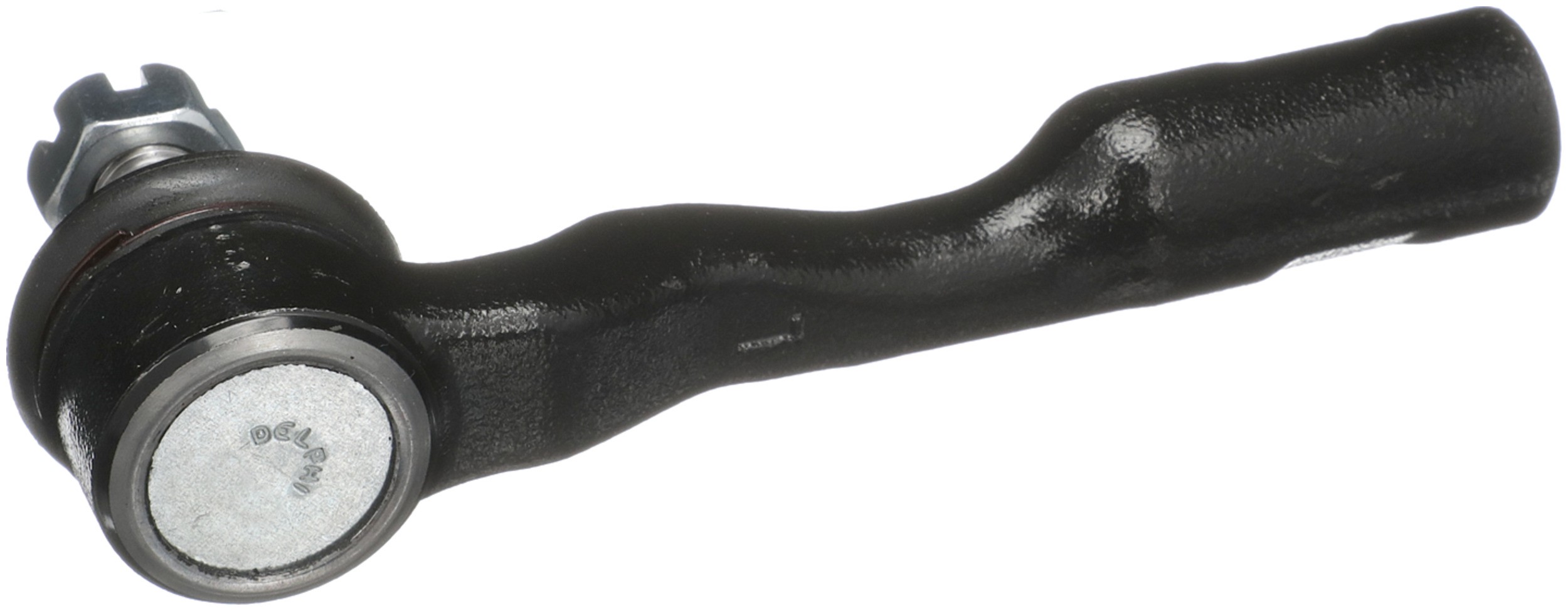

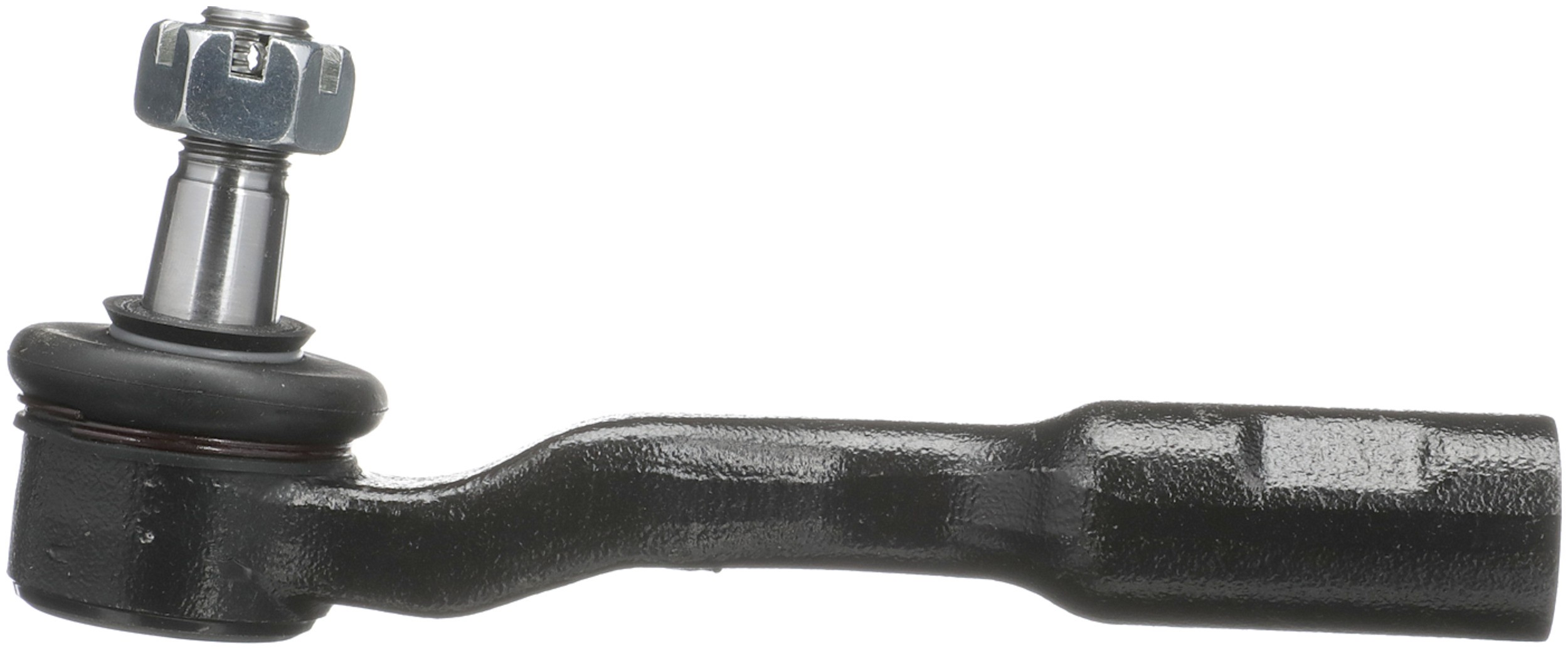

Delphi TA5251 Steering Tie Rod End

Delphi TA5251 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Pre-greased	Yes
Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
End 2 Gender	Female
Color	Black
Position(s)	Left Outer
881	Threaded
9090	Rubber
9091	Steel
Type	Straight
Length – Stud Centre to End	157.50 MM
Dust Boot Included	Yes
36	1.043 IN
1786	16.00 MM
Length – Stud Centre to End	6.201 IN
Height	72.00 MM
Width	39 MM
Stud Length	16.00 MM
Stud Length	0.630 IN
Length	179.00 MM
36	26.50 MM
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Adjustable	No
Housing Material	Steel
662	16.00 MM
662	0.630 IN
1786	0.630 IN
627	1.36 LB
Grease Fitting Included	No
