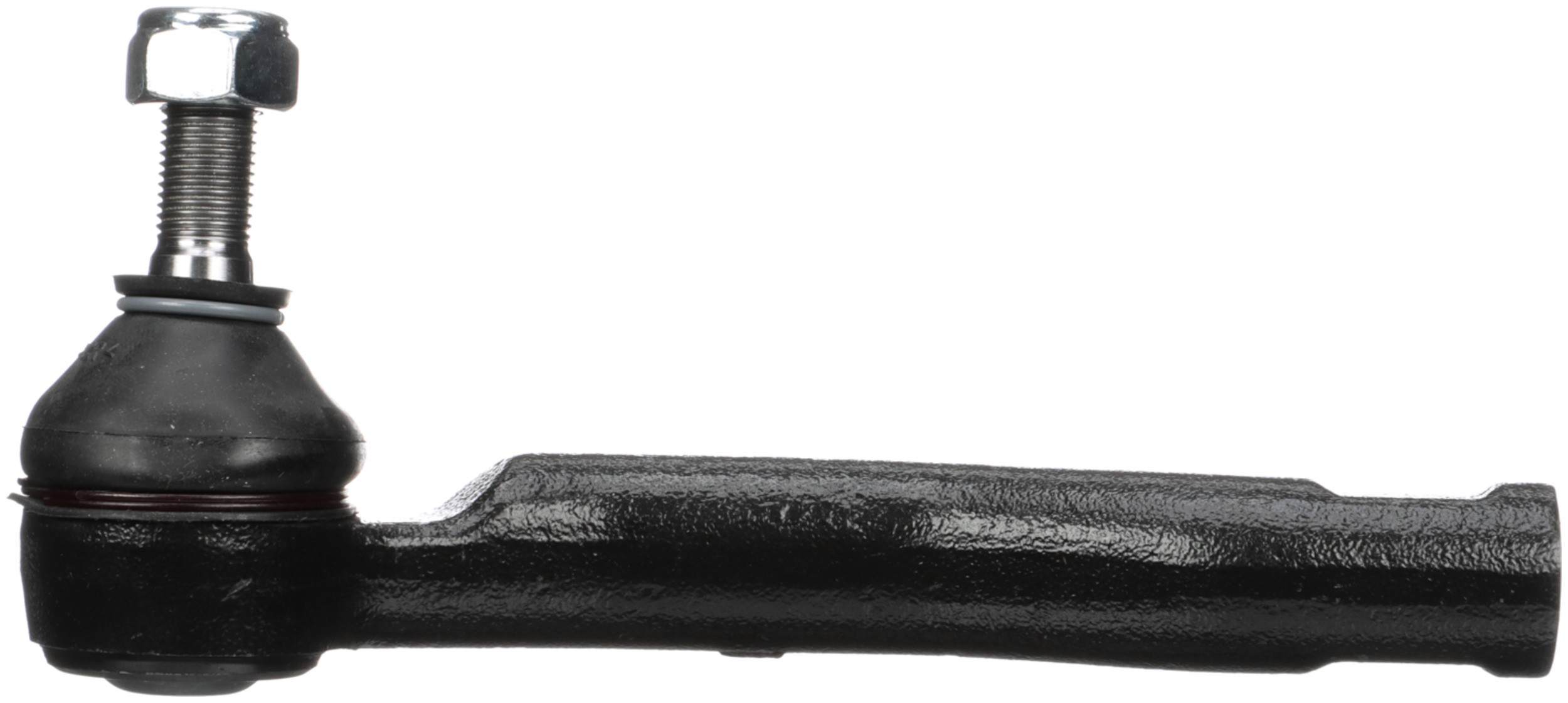

Delphi TA5253 Steering Tie Rod End

Delphi TA5253 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Color	Black
662	0.787 IN
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	No
Adjustable	No
Housing Material	Steel
627	2.76 LB
36	31.50 MM
36	1.240 IN
1786	20.00 MM
1786	0.787 IN
Grease Fitting Included	No
Length	231.00 MM
Stud Length	0.787 IN
Stud Length	20.00 MM
Position(s)	Left Outer
881	Threaded
9090	Rubber
9091	Steel
End 2 Gender	Female
Pre-greased	Yes
662	20.00 MM
Dust Boot Included	Yes
Type	Bent
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Width	53.5 MM
Height	89.30 MM
Length – Stud Centre to End	8.209 IN
Length – Stud Centre to End	208.50 MM
