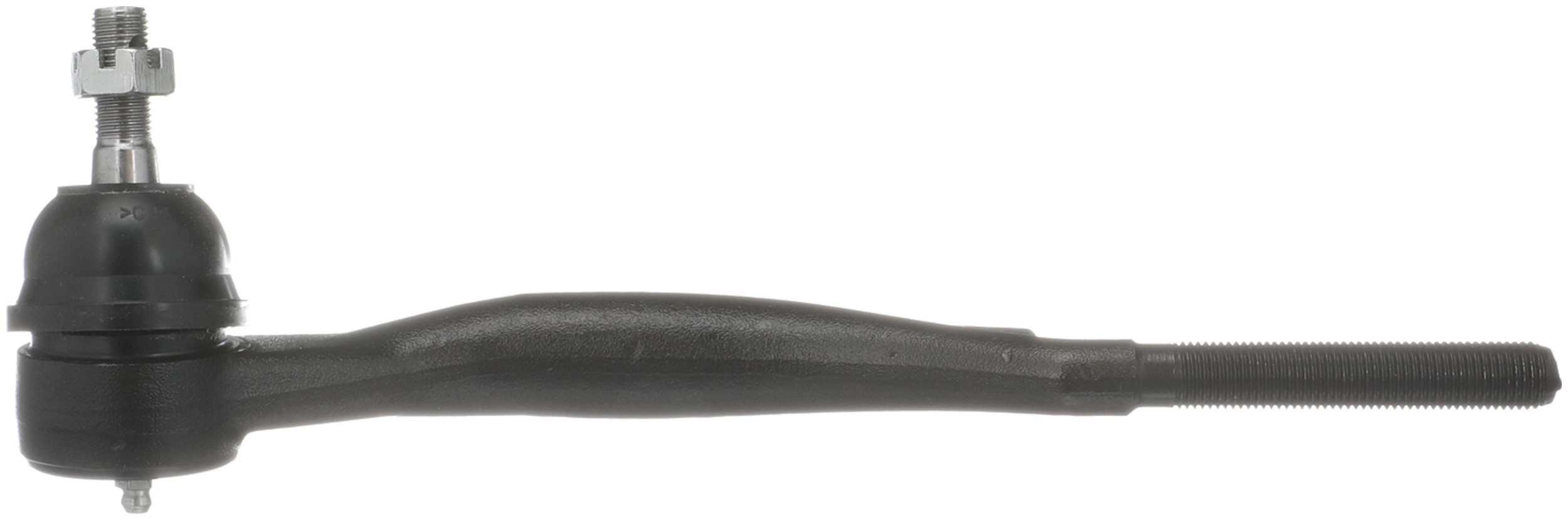

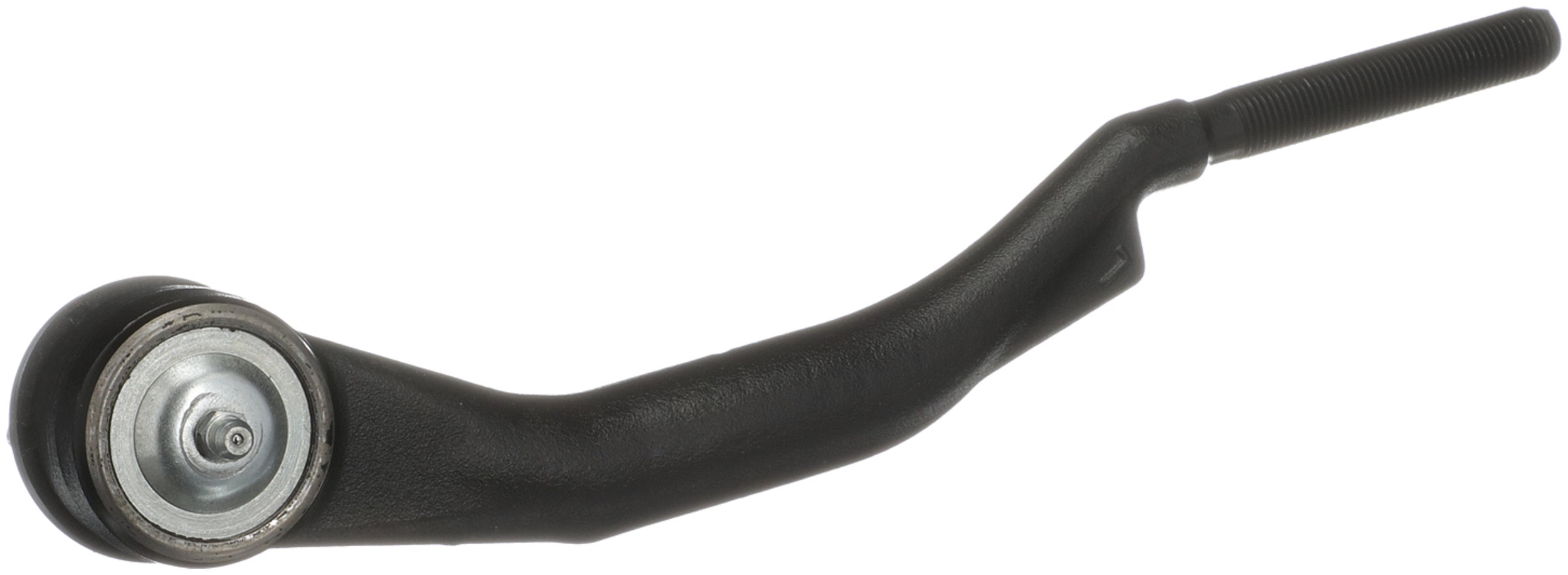

Delphi TA5256 Steering Tie Rod End

Delphi TA5256 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

1786	0.650 IN
End 1 Gender	Male
Length	307.00 MM
Stud Length	0.650 IN
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	Yes
Adjustable	No
662	16.50 MM
662	0.650 IN
End 2 Gender	Male
627	2.53 LB
Pre-greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Type	Bent
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Right Outer
Length – Stud Centre to End	283.00 MM
36	26.00 MM
36	1.024 IN
Length – Stud Centre to End	11.142 IN
Height	101.70 MM
Width	64.5 MM
Stud Length	16.50 MM
Housing Material	Steel
Color	Black
1786	16.50 MM
