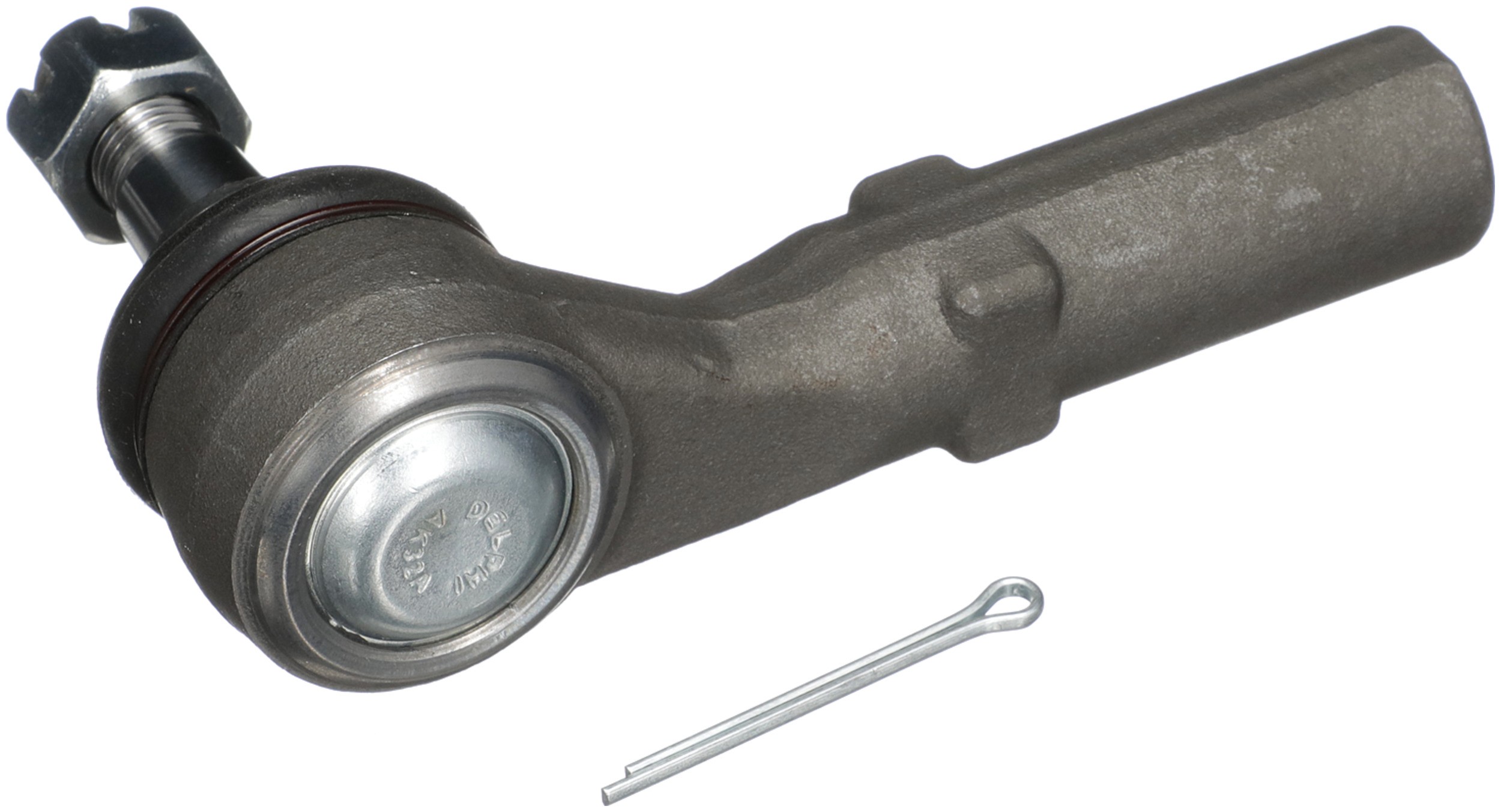

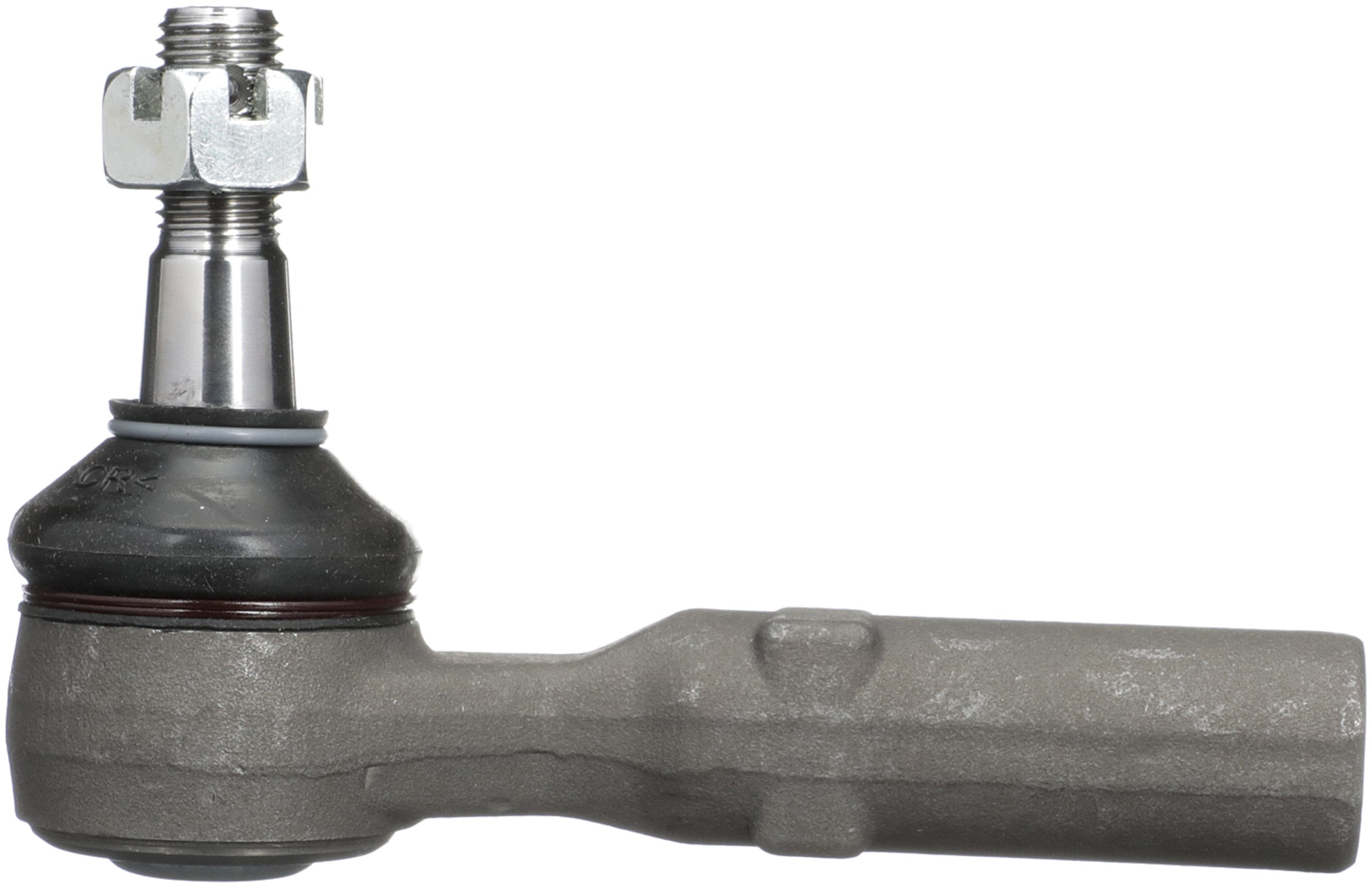

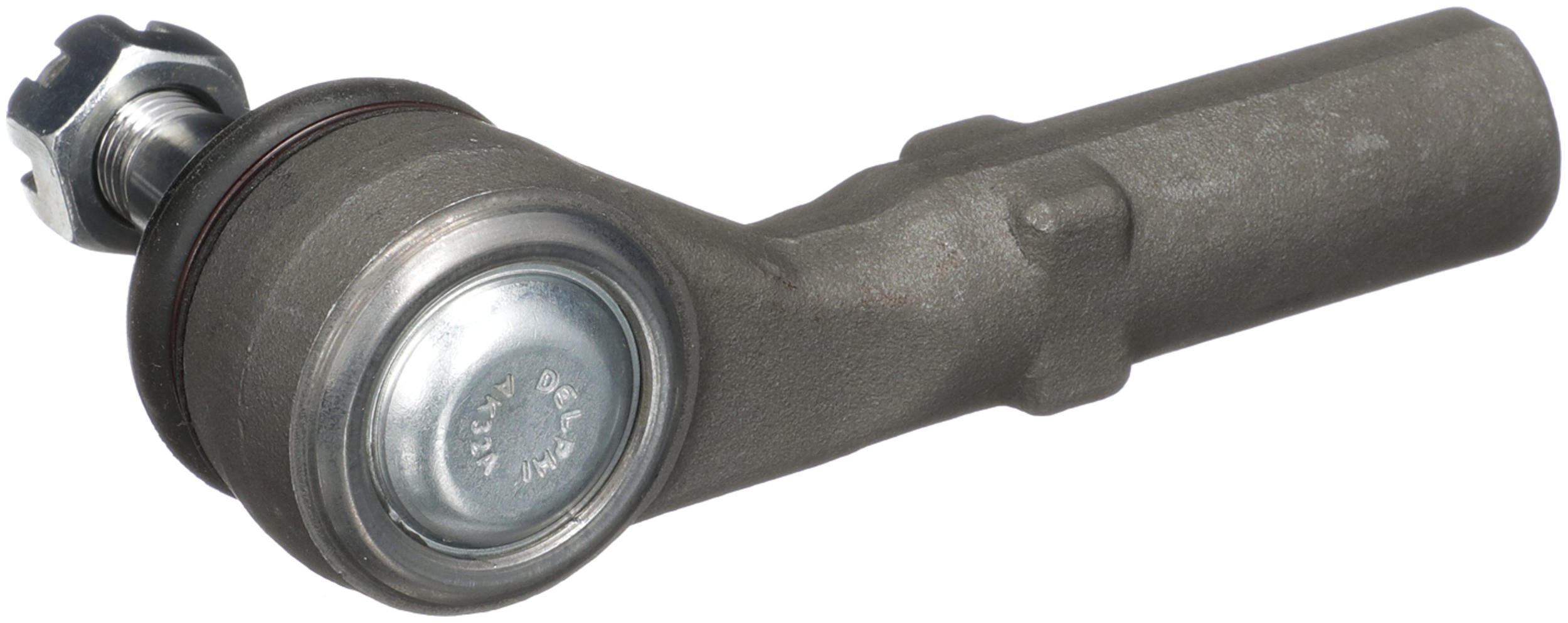

Delphi TA5257 Steering Tie Rod End

Delphi TA5257 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

1786	18.10 MM
Length	144.00 MM
Stud Length	0.713 IN
Stud Length	18.10 MM
Position(s)	Left Outer
881	Threaded
9090	Rubber
9091	Steel
Width	45 MM
Height	91.00 MM
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	No
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Bent
Dust Boot Included	Yes
Pre-greased	Yes
End 2 Gender	Female
End 1 Gender	Male
Color	Black
1786	0.713 IN
36	1.024 IN
36	26.00 MM
627	1.63 LB
662	0.713 IN
662	18.10 MM
