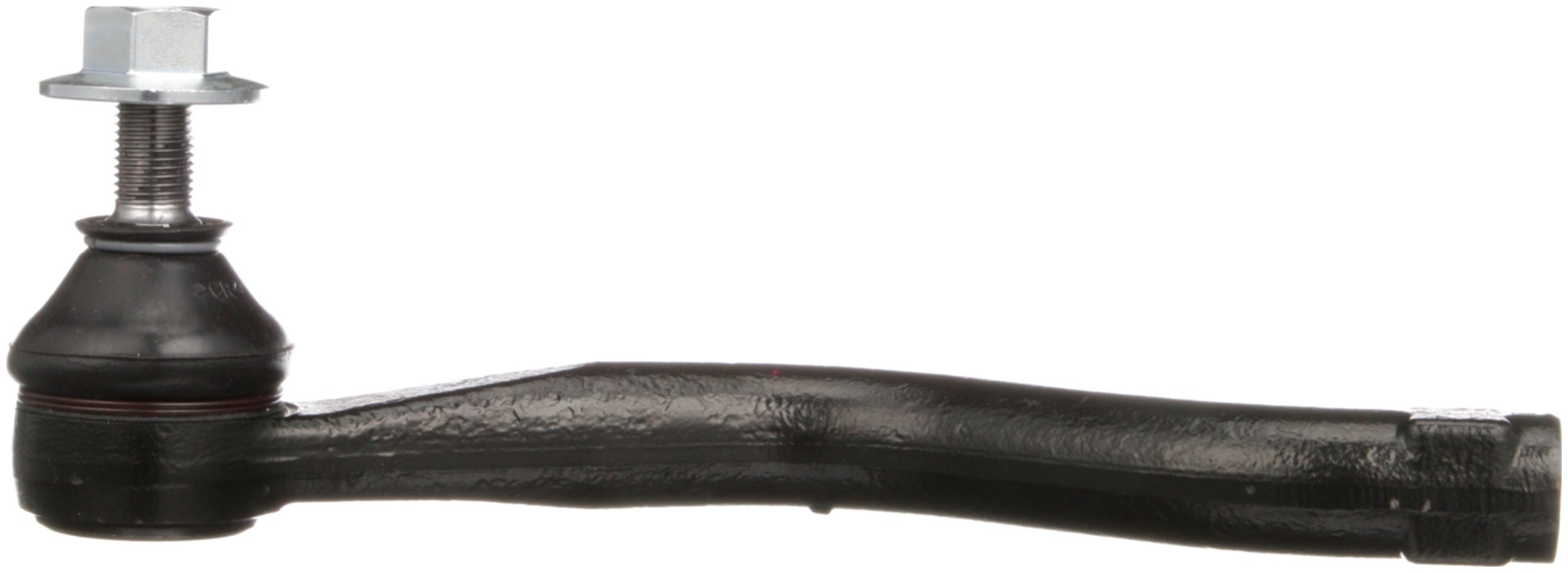

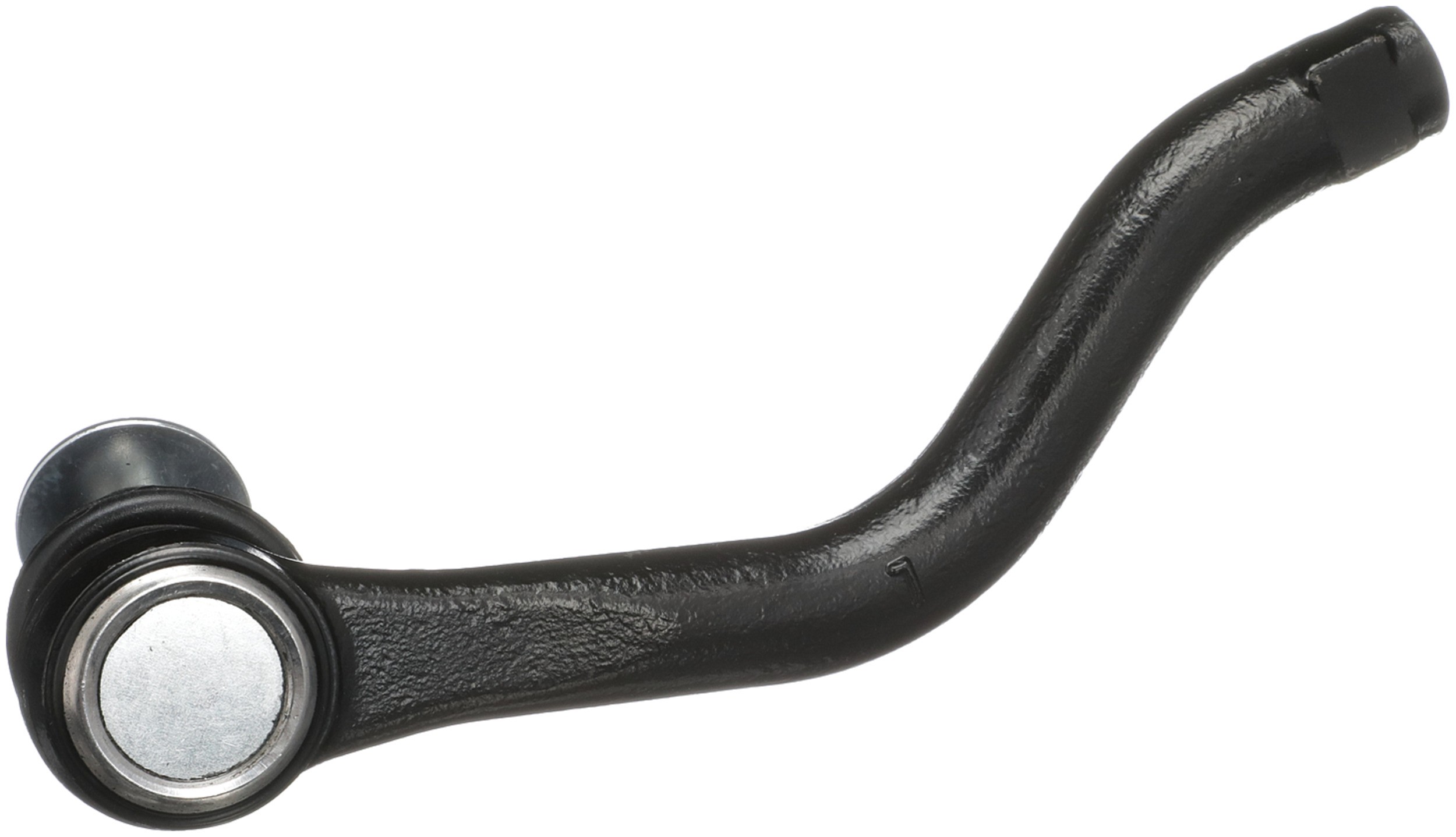

Delphi TA5259 Steering Tie Rod End

Delphi TA5259 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
1786	16.20 MM
36	0.846 IN
36	21.50 MM
627	1.71 LB
881	Threaded
662	0.638 IN
Position(s)	Left Outer
662	16.20 MM
End 2 Thread Direction	Clockwise (Right)
Length – Stud Centre to End	203.00 MM
Length – Stud Centre to End	7.992 IN
9091	Steel
Height	72.00 MM
Width	64.7 MM
Stud Length	16.20 MM
Stud Length	0.638 IN
Length	225.00 MM
9090	Rubber
1786	0.638 IN
Color	Black
End 2 Gender	Female
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Bent
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	No
