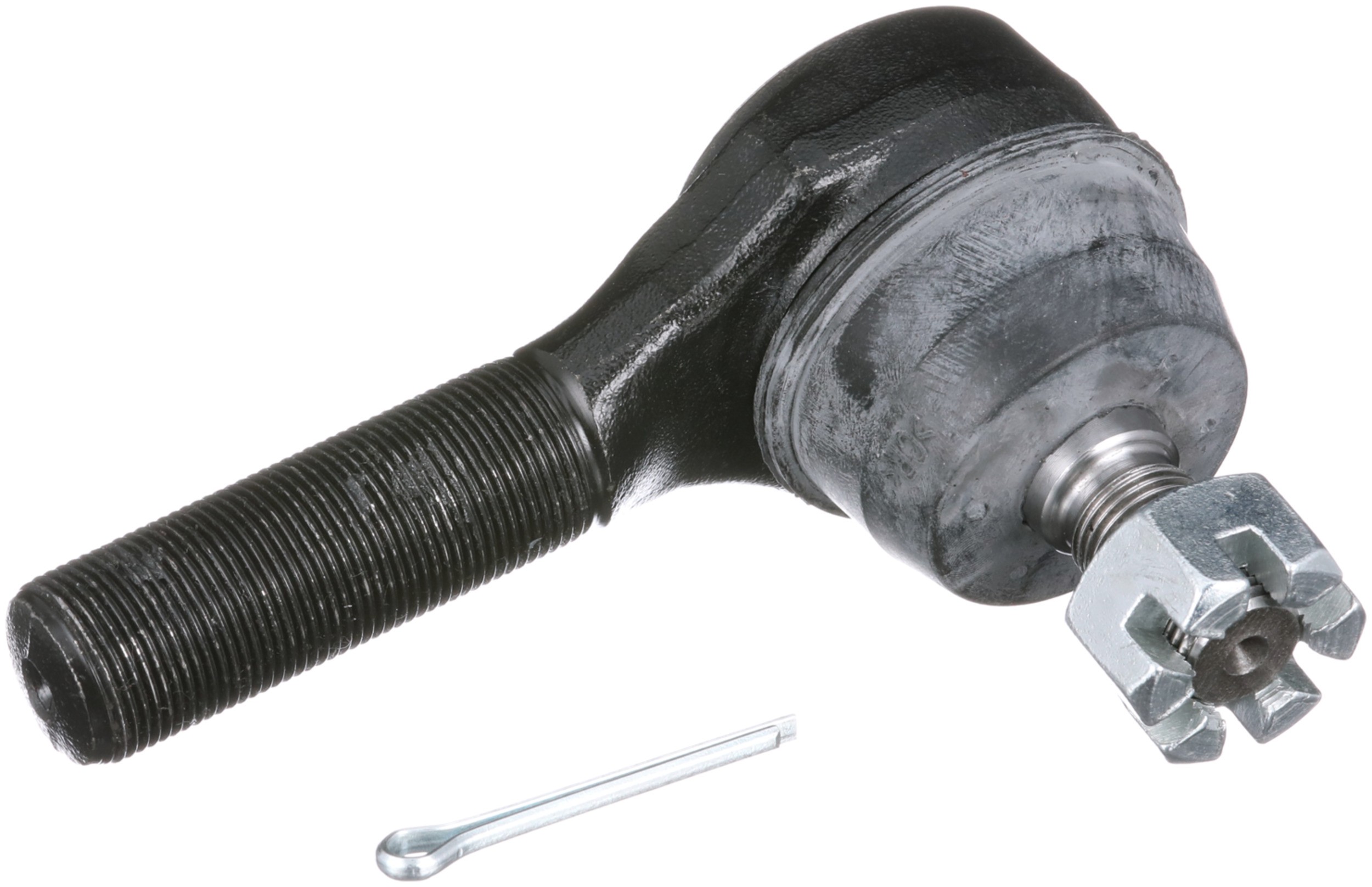

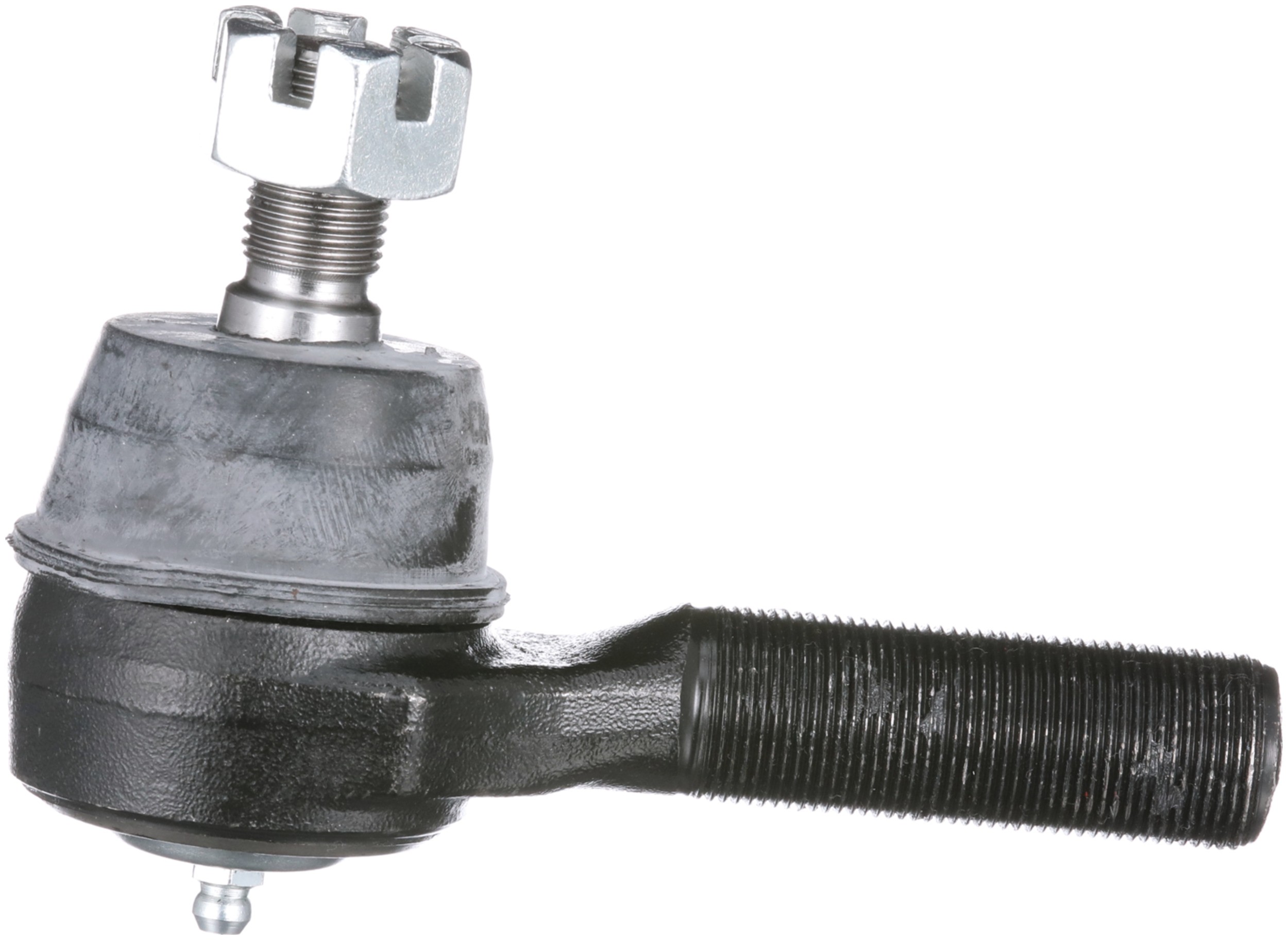

Delphi TA5273 Steering Tie Rod End

Delphi TA5273 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

881	Threaded
9090	Rubber
9091	Steel
Bearing Material	Steel
Greaseable	Yes
Adjustable	No
Housing Material	Steel
Stud Length	0.776 IN
Stud Length	19.70 MM
1786	0.776 IN
1786	19.70 MM
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	Yes
Pre-greased	Yes
36	22.23 MM
627	1.78 LB
End 2 Gender	Male
662	0.776 IN
End 1 Gender	Male
Color	Black
Length	140.00 MM
36	0.875 IN
662	19.70 MM
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Length – Stud Centre to End	113.00 MM
Length – Stud Centre to End	4.449 IN
Height	98.20 MM
Width	53 MM
Position(s)	Outer
