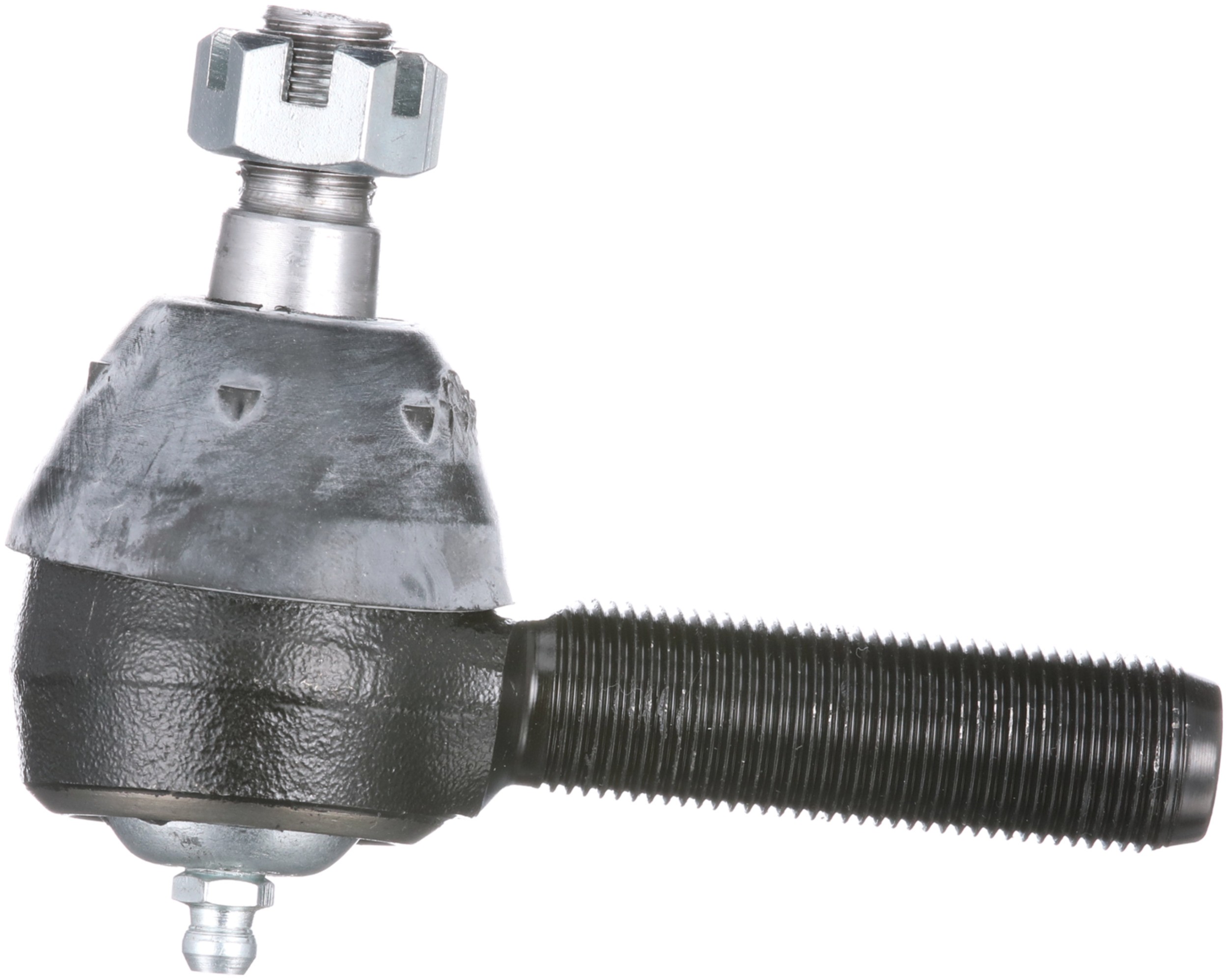

Delphi TA5307 Steering Tie Rod End

Delphi TA5307 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure

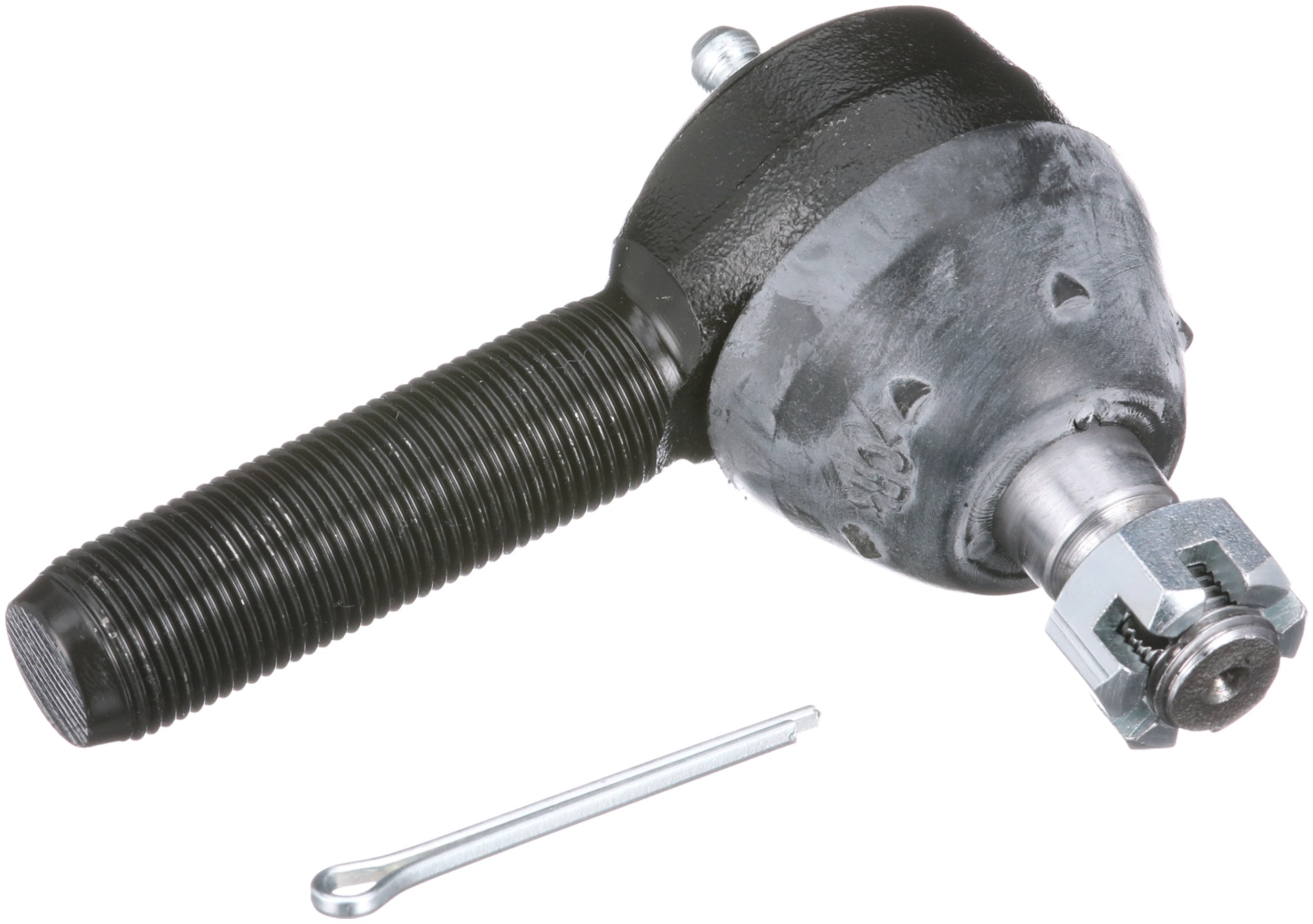

Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	Yes
9091	Steel
Type	Straight
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Length – Stud Centre to End	83.00 MM
Length – Stud Centre to End	3.268 IN
Height	82.00 MM
Width	41 MM
Stud Length	16.00 MM
Stud Length	0.630 IN
Dust Boot Included	Yes
Length	104.00 MM
36	17.46 MM
627	0.99 LB
662	0.630 IN
9090	Rubber
881	Threaded
Position(s)	Inner, Left Inner, Left Inner (At Bell Crank), Left Outer, Left Outer (Steering Arm To Steering Arm), Outer, Right Outer. For the position specific to your vehicle, refer to the Applications.
662	16.00 MM
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
1786	0.630 IN
1786	16.00 MM
36	0.688 IN
Bearing Material	Plastic
Greaseable	Yes
Adjustable	No
Color	Black
End 1 Gender	Male

Vehicle Applications:

Make	Model	Years
Buick	Century	1957 to 1958
Buick	Limited	1958 to 1958
Buick	Roadmaster	1957 to 1958
Buick	Special	1961 to 1962
Buick	Super	1957 to 1958
Dodge	A100 Pickup	1967 to 1970
Dodge	A100	1964 to 1970
Dodge	D100 Pickup	1968 to 1968
Dodge	D100 Series	1961 to 1967
Dodge	D200 Pickup	1968 to 1968
Dodge	D200 Series	1961 to 1967
Dodge	P200	1968 to 1971
Fargo	A100 Van	1964 to 1970
Fargo	A108 Van	1970 to 1970
Fargo	D100 Panel Delivery	1966 to 1967
Fargo	D100 Pickup	1966 to 1968
Fargo	D110 Pickup	1966 to 1966
Fargo	D200 Panel Delivery	1966 to 1967
Fargo	D200 Pickup	1966 to 1968
Fargo	P200 Parcel Delivery	1968 to 1971
Jeep	CJ3	1959 to 1966
Jeep	CJ5	1959 to 1983
Jeep	CJ6	1959 to 1975
Jeep	CJ7	1976 to 1986
Jeep	Commando	1966 to 1973
Jeep	Jeepster	1969 to 1971
Jeep	Scrambler	1981 to 1985
Jeep	Universal Truck	1963 to 1969
Jeep	Universal	1963 to 1966
Oldsmobile	88	1957 to 1957
Oldsmobile	98	1958 to 1959
Oldsmobile	Cutlass	1961 to 1962
Oldsmobile	F85	1961 to 1962
Oldsmobile	Jetfire	1962 to 1962
Oldsmobile	Super 88	1957 to 1959
Pontiac	Bonneville	1958 to 1958
Pontiac	Chieftain	1949 to 1958
Pontiac	Star Chief	1954 to 1958
Pontiac	Streamliner	1946 to 1951
Pontiac	Super Chief	1957 to 1958
Pontiac	Torpedo	1946 to 1948
