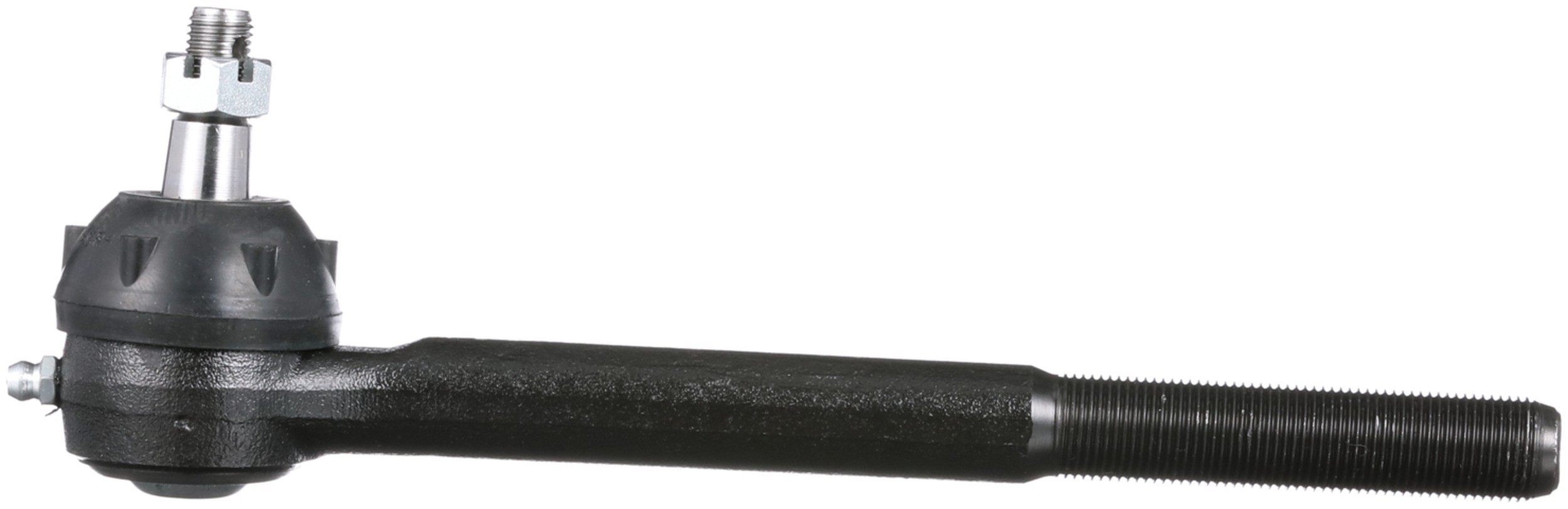

Delphi TA5309 Steering Tie Rod End

Delphi TA5309 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Length	252.00 MM
Stud Length	0.626 IN
Stud Length	15.90 MM
Width	43 MM
Height	84.40 MM
Length – Stud Centre to End	8.583 IN
Length – Stud Centre to End	218.00 MM
1786	15.90 MM
36	0.787 IN
36	20.00 MM
End 2 Gender	Male
End 1 Gender	Male
881	Threaded
9090	Rubber
9091	Steel
Position(s)	Inner
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	Yes
Bearing Material	Plastic
End 2 Thread Direction	Counterclockwise (Left)
Mounting Hardware Included	Yes
Type	Straight
627	1.39 LB
662	0.626 IN
Dust Boot Included	Yes
Grease Fitting Included	Yes
Pre-greased	Yes
Color	Black
662	15.90 MM
1786	0.626 IN

Vehicle Applications:

Make	Model	Years
Buick	GS 455	1971 to 1972
Buick	GS	1971 to 1972
Buick	Skylark	1971 to 1972
Buick	Sportwagon	1971 to 1972
Chevrolet	Chevelle	1971 to 1972
Chevrolet	El Camino	1971 to 1972
Chevrolet	Monte Carlo	1971 to 1972
GMC	Sprint	1971 to 1972
Oldsmobile	442	1971 to 1971
Oldsmobile	Cutlass	1971 to 1972
Oldsmobile	F85	1971 to 1972
Oldsmobile	Vista Cruiser	1971 to 1972
Pontiac	GTO	1971 to 1972
Pontiac	Grand Prix	1971 to 1972
Pontiac	LeMans	1971 to 1972
