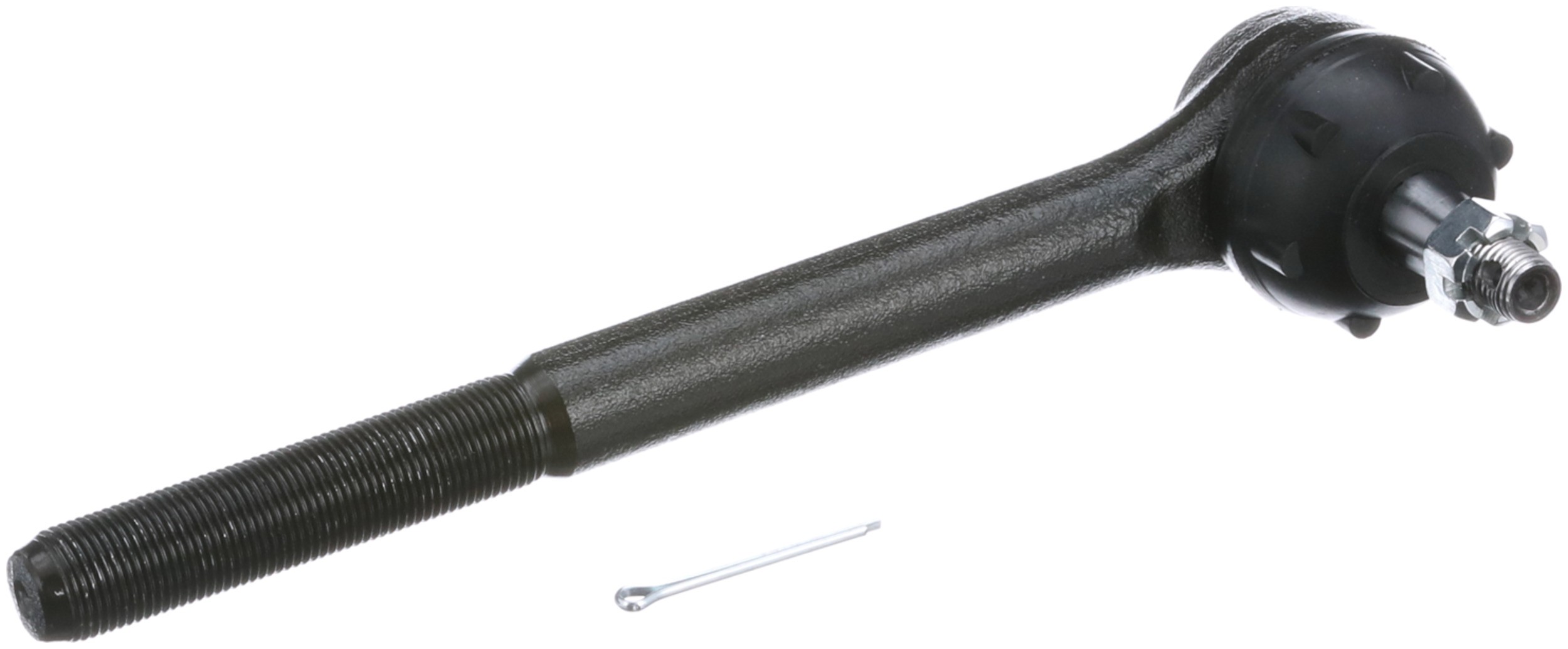

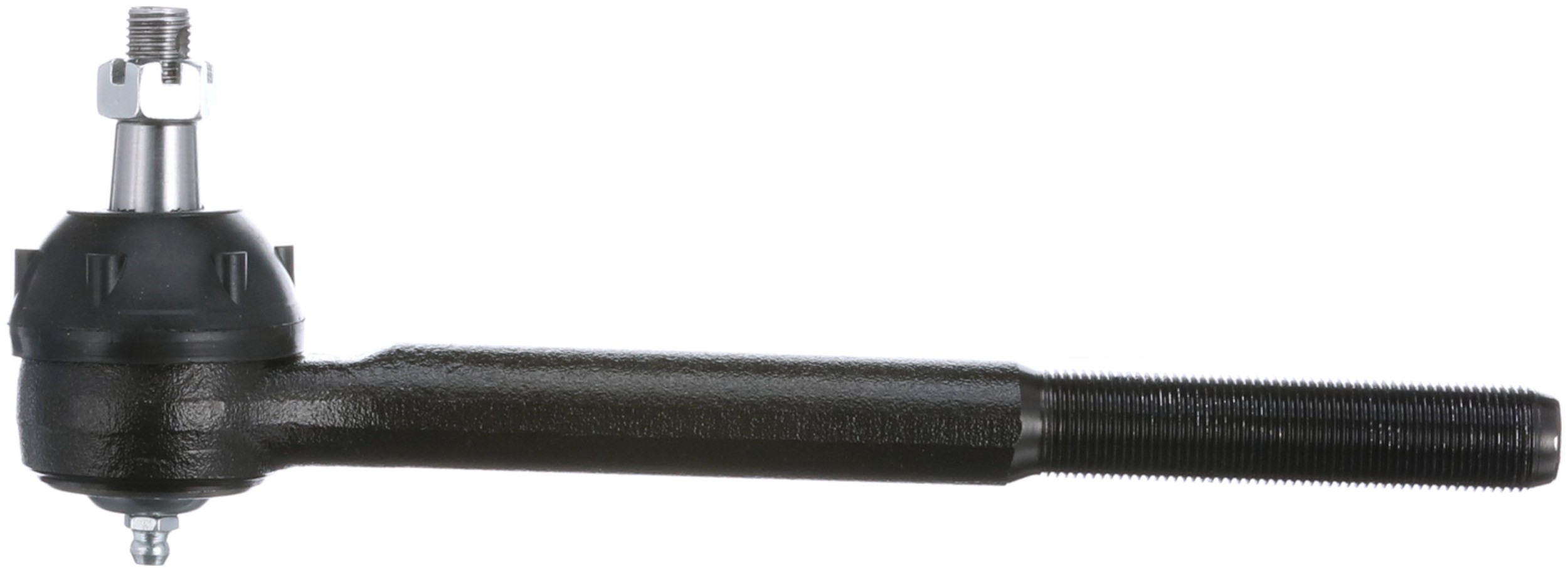

Delphi TA5310 Steering Tie Rod End

Delphi TA5310 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

662	15.90 MM
1786	15.90 MM
36	0.787 IN
Length – Stud Centre to End	8.583 IN
Height	84.40 MM
Width	43 MM
Stud Length	15.90 MM
Stud Length	0.626 IN
Length	240.00 MM
Length – Stud Centre to End	218.00 MM
36	20.00 MM
627	1.39 LB
662	0.626 IN
1786	0.626 IN
881	Threaded
Position(s)	Outer
9091	Steel
9090	Rubber
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	Yes
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	Yes
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Male
Color	Black

Vehicle Applications:

Make	Model	Years
Buick	GS 455	1971 to 1972
Buick	GS	1971 to 1972
Buick	Skylark	1971 to 1972
Buick	Sportwagon	1971 to 1972
Chevrolet	Chevelle	1971 to 1972
Chevrolet	El Camino	1971 to 1972
Chevrolet	Monte Carlo	1971 to 1972
GMC	Sprint	1971 to 1972
Oldsmobile	442	1971 to 1971
Oldsmobile	Cutlass Supreme	1971 to 1972
Oldsmobile	Cutlass	1971 to 1972
Oldsmobile	F85	1971 to 1972
Oldsmobile	Vista Cruiser	1971 to 1972
Pontiac	GTO	1971 to 1972
Pontiac	LeMans	1971 to 1972
