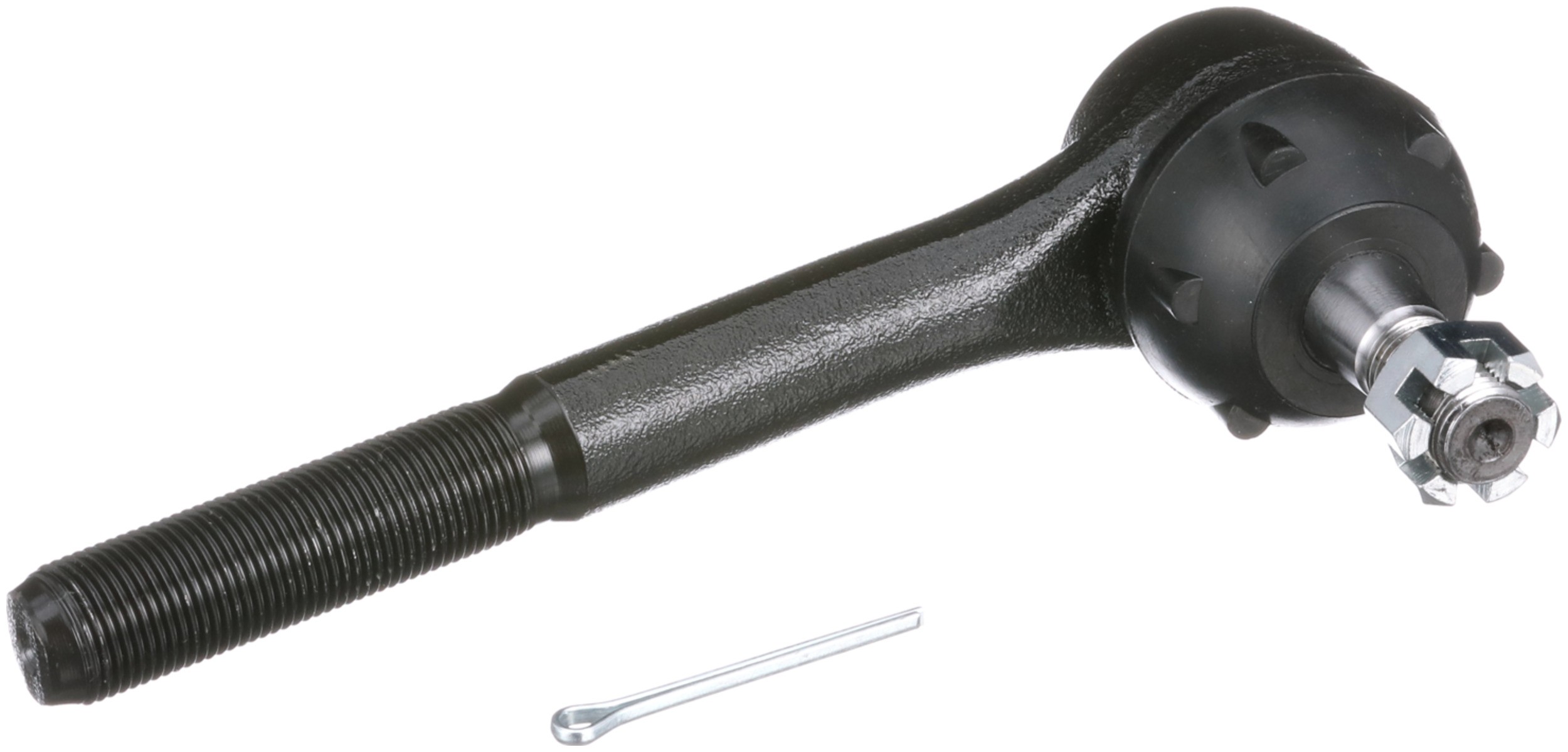

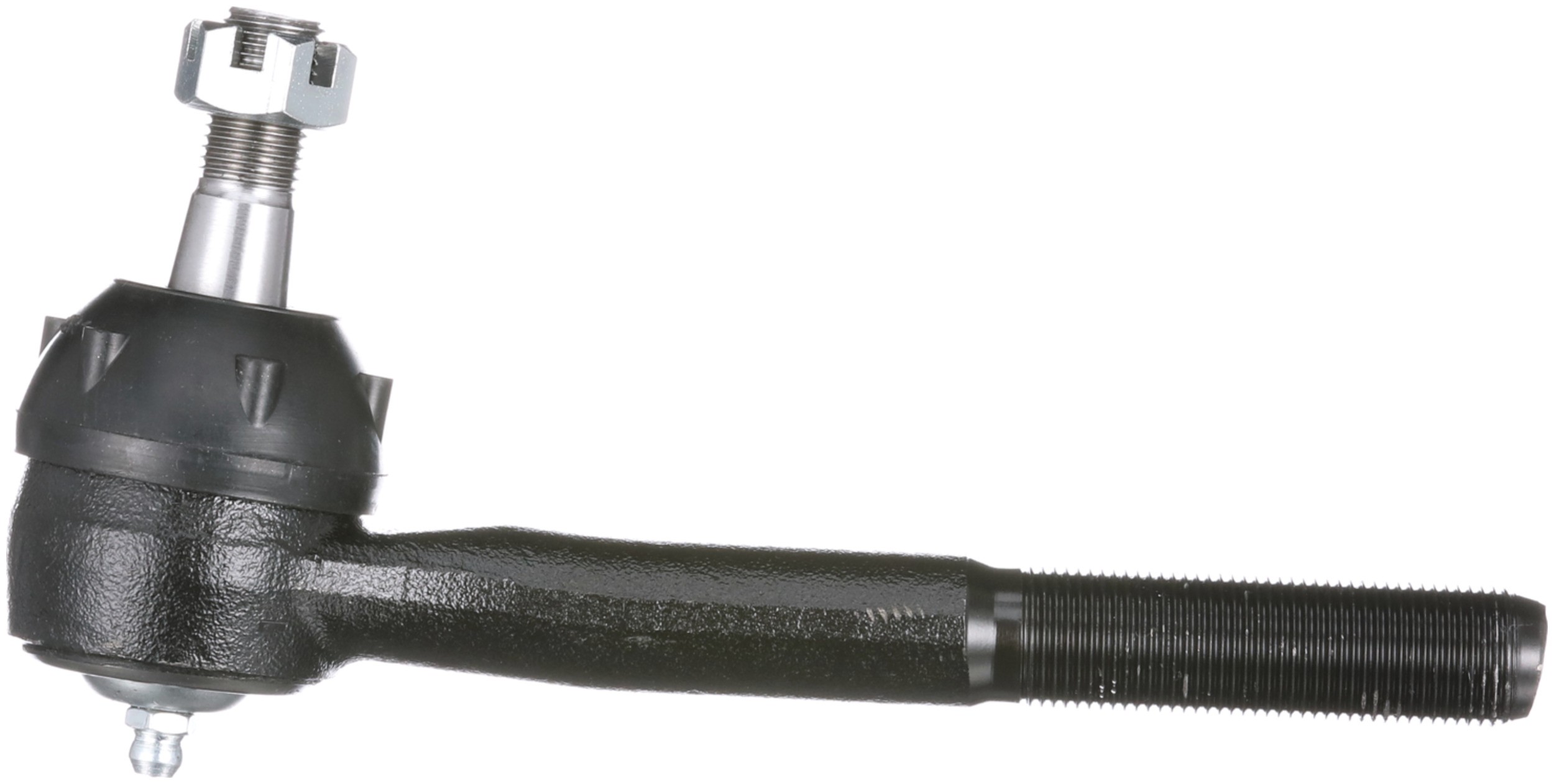

Delphi TA5311 Steering Tie Rod End

Delphi TA5311 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

End 1 Gender	Male
Color	Black
627	1.13 LB
36	19.00 MM
36	0.748 IN
1786	15.90 MM
9091	Steel
Height	92.00 MM
Length – Stud Centre to End	6.378 IN
9090	Rubber
1786	0.626 IN
Length	185.00 MM
Length – Stud Centre to End	162.00 MM
Stud Length	0.626 IN
662	15.90 MM
662	0.626 IN
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	Yes
Adjustable	No
881	Threaded
Position(s)	Outer
Stud Length	15.90 MM
Width	43 MM
Dust Boot Included	Yes
Grease Fitting Included	Yes
Type	Straight
Pre-greased	Yes
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
End 2 Gender	Male

Vehicle Applications:

Make	Model	Years
Chevrolet	Blazer	1971 to 1972
Chevrolet	C10 Pickup	1971 to 1972
Chevrolet	C10 Suburban	1971 to 1972
Chevrolet	G10 Van	1971 to 1972
Chevrolet	P10 Van	1971 to 1972
GMC	C15/C1500 Pickup	1971 to 1972
GMC	C15/C1500 Suburban	1971 to 1972
GMC	G15/G1500 Van	1971 to 1972
GMC	Jimmy	1971 to 1972
GMC	P15/P1500 Van	1971 to 1972
