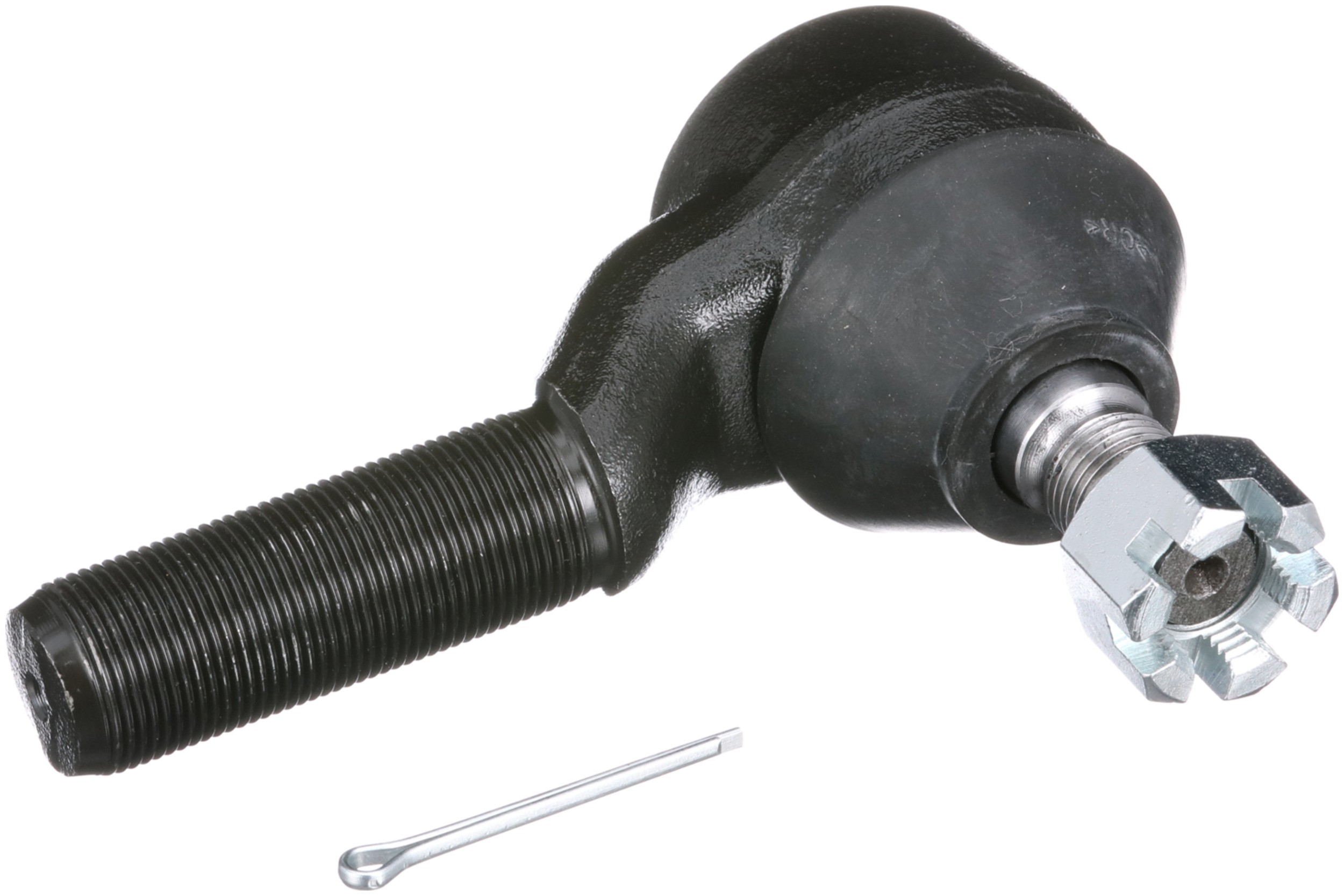

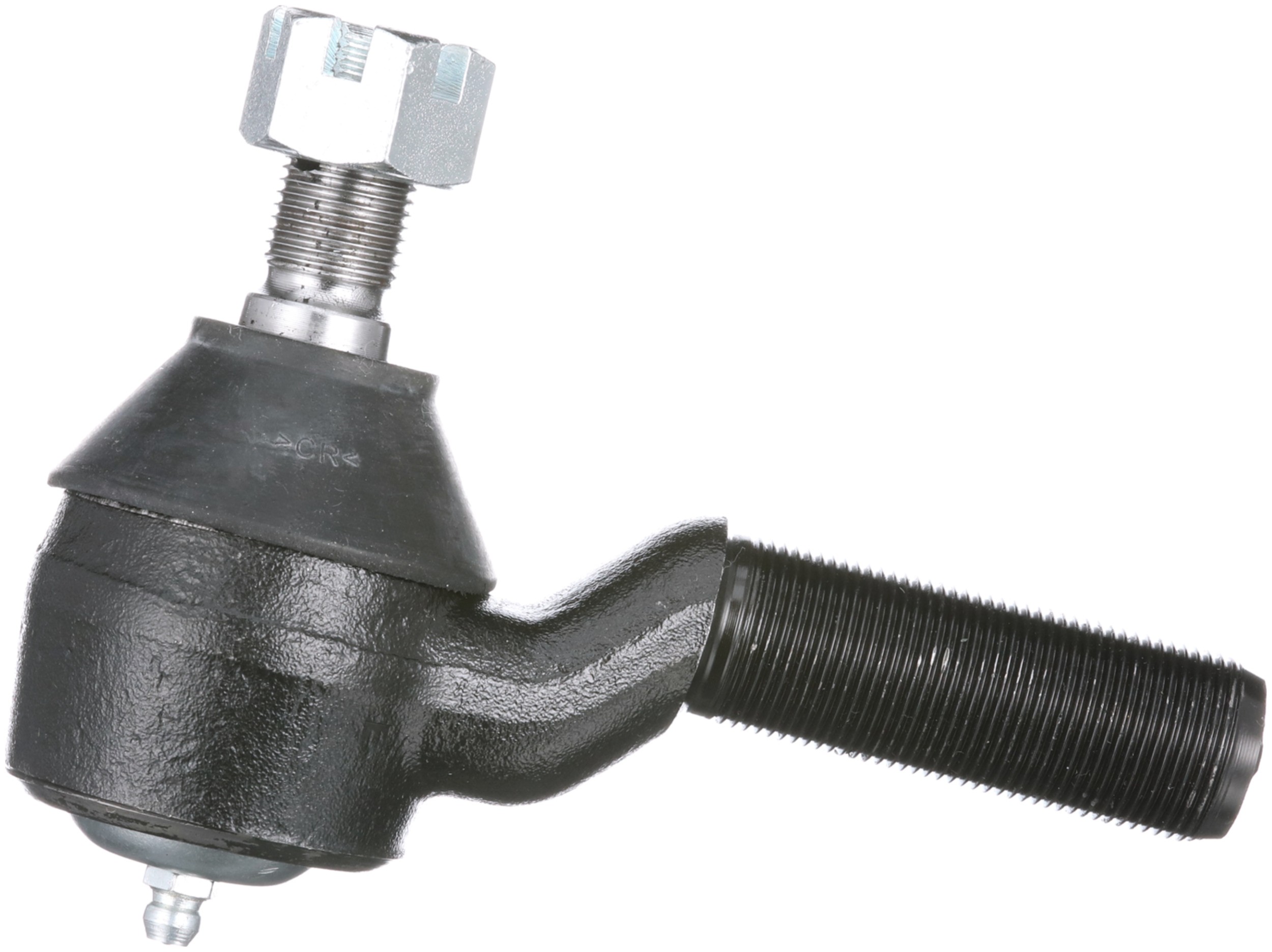

Delphi TA5315 Steering Tie Rod End

Delphi TA5315 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	Yes
Bearing Material	Steel
End 2 Thread Direction	Counterclockwise (Left)
36	22.23 MM
662	19.70 MM
662	0.776 IN
627	1.87 LB
Stud Length	0.776 IN
Length	140.00 MM
Length – Stud Centre to End	113.00 MM
Length – Stud Centre to End	4.449 IN
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Right Outer
Height	97.00 MM
Width	51 MM
Stud Length	19.70 MM
Color	Black
36	0.875 IN
1786	19.70 MM
1786	0.776 IN
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Type	Bent
Mounting Hardware Included	Yes

Vehicle Applications:

Make	Model	Years
Chevrolet	Blazer	1973 to 1974
Chevrolet	K10 Pickup	1973 to 1974
Chevrolet	K10 Suburban	1973 to 1976
Chevrolet	K10	1975 to 1976
Chevrolet	K20 Pickup	1973 to 1974
Chevrolet	K20 Suburban	1973 to 1976
Chevrolet	K20	1975 to 1976
Chevrolet	K5 Blazer	1975 to 1976
GMC	Jimmy	1975 to 1976
GMC	K15 Suburban	1975 to 1976
GMC	K15	1975 to 1976
GMC	K25 Suburban	1975 to 1976
GMC	K25/K2500 Pickup	1973 to 1974
GMC	K25	1975 to 1976
