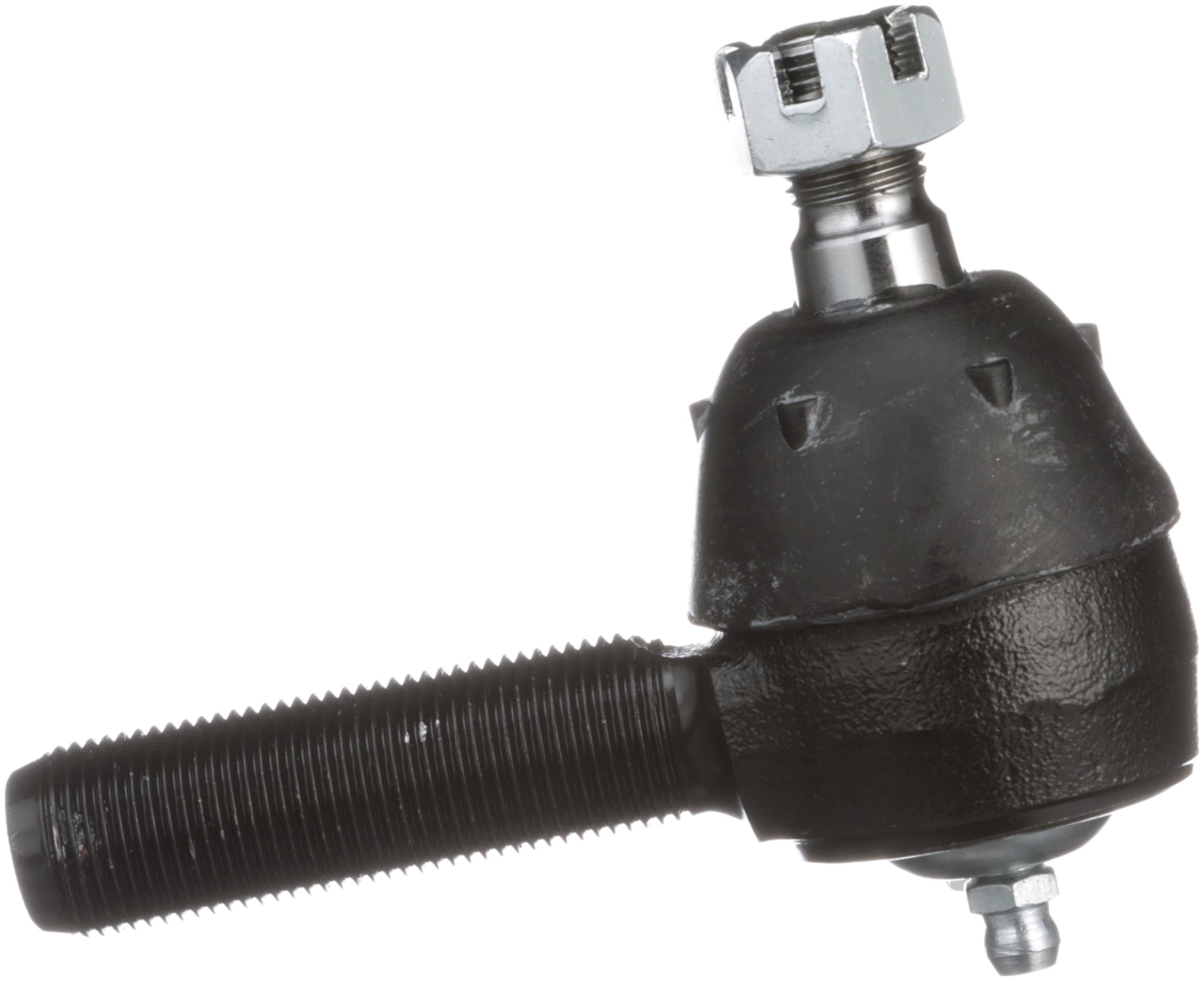

Delphi TA5316 Steering Tie Rod End

Delphi TA5316 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Height	79.80 MM
Width	41 MM
Stud Length	16.00 MM
Stud Length	0.630 IN
Length	104.00 MM
881	Threaded
Position(s)	At Pitman Arm, Left Inner, Left Outer, Left Outer (Steering Arm To Steering Arm), Outer, Right (At Connecting Rod – Bell Crank To Connectin, Right Outer (Steering Arm To Steering Arm). For the position specific to your vehicle, refer to the Applications.
627	0.79 LB
662	0.630 IN
662	16.00 MM
9091	Steel
9090	Rubber
Length – Stud Centre to End	3.268 IN
Length – Stud Centre to End	83.00 MM
1786	0.630 IN
1786	16.00 MM
36	0.688 IN
36	17.46 MM
End 2 Thread Direction	Counterclockwise (Left)
Bearing Material	Plastic
Greaseable	Yes
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	Yes
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Male
Color	Black

Vehicle Applications:

Make	Model	Years
Jeep	475	1956 to 1956
Jeep	6-226	1956 to 1964
Jeep	6-230	1963 to 1965
Jeep	CJ3	1959 to 1966
Jeep	CJ5	1959 to 1983
Jeep	CJ5A	1966 to 1968
Jeep	CJ6	1959 to 1975
Jeep	CJ6A	1966 to 1968
Jeep	CJ7	1976 to 1986
Jeep	Commando	1966 to 1973
Jeep	DJ3	1959 to 1965
Jeep	Dispatcher	1963 to 1965
Jeep	F-134	1963 to 1965
Jeep	F4	1957 to 1960
Jeep	FC150	1957 to 1964
Jeep	FC170	1957 to 1964
Jeep	Gladiator	1963 to 1965
Jeep	J-200	1963 to 1965
Jeep	J-210	1963 to 1965
Jeep	J-220	1963 to 1965
Jeep	J-230	1963 to 1965
Jeep	J-2500	1965 to 1973
Jeep	J-2600	1965 to 1973
Jeep	J-2700	1965 to 1965
Jeep	J-2800	1965 to 1965
Jeep	J-300	1963 to 1965
Jeep	J-310	1963 to 1965
Jeep	J-320	1963 to 1965
Jeep	J-330	1963 to 1965
Jeep	J-3500	1965 to 1965
Jeep	J-3600	1965 to 1965
Jeep	J-3700	1965 to 1965
Jeep	J-3800	1965 to 1971
Jeep	J-4500	1971 to 1973
Jeep	J-4600	1971 to 1973
Jeep	J-4700	1971 to 1973
Jeep	J-4800	1971 to 1973
Jeep	Jeepster	1966 to 1971
Jeep	Scrambler	1981 to 1985
Jeep	Truck	1963 to 1964
Jeep	Universal Truck	1963 to 1969
Jeep	Universal	1961 to 1967
Jeep	Utility Wagon	1963 to 1964
Jeep	Wagoneer	1972 to 1973
Jeep	Willys	1943 to 1958
Willys	MB	1941 to 1942
