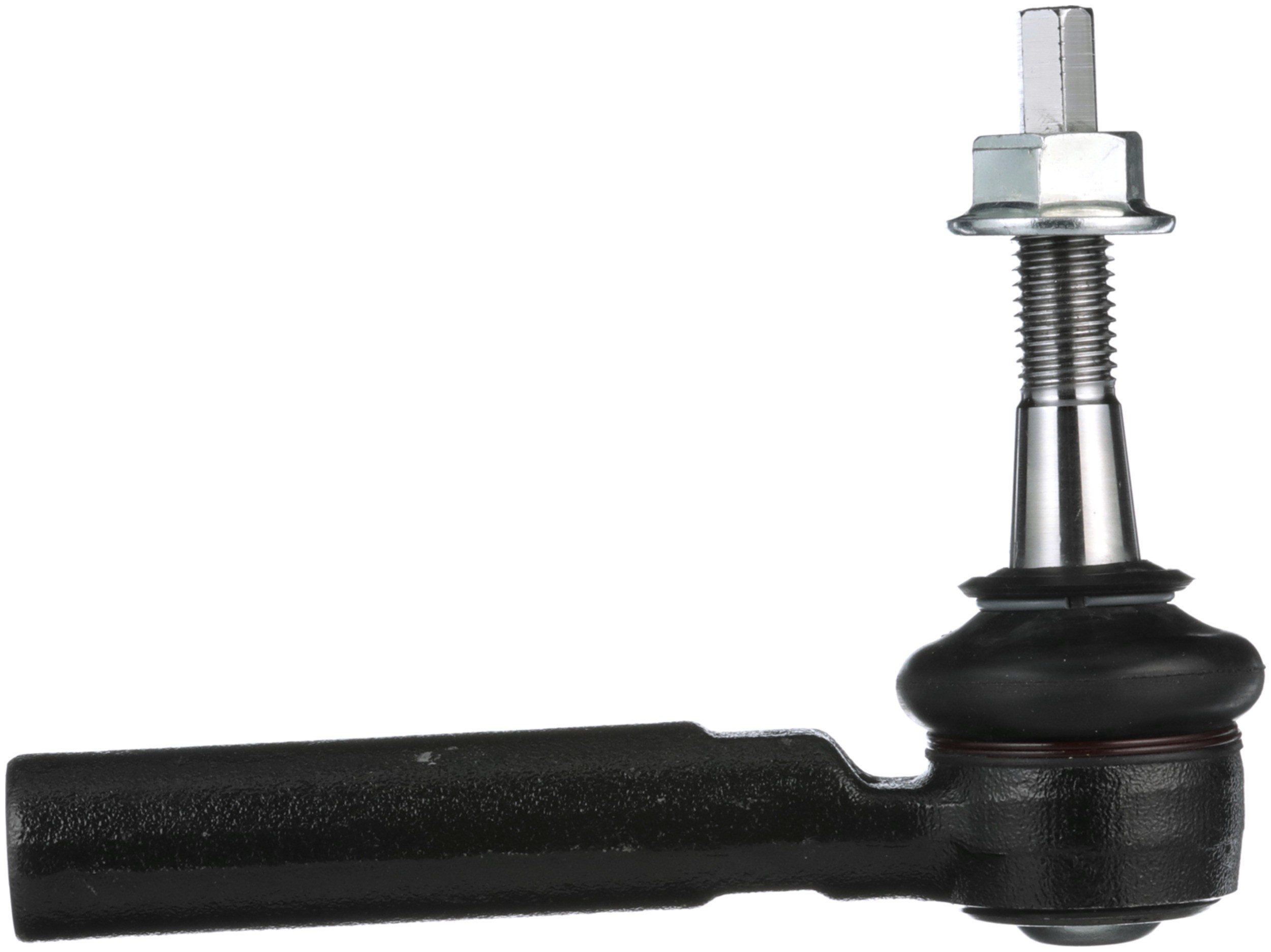

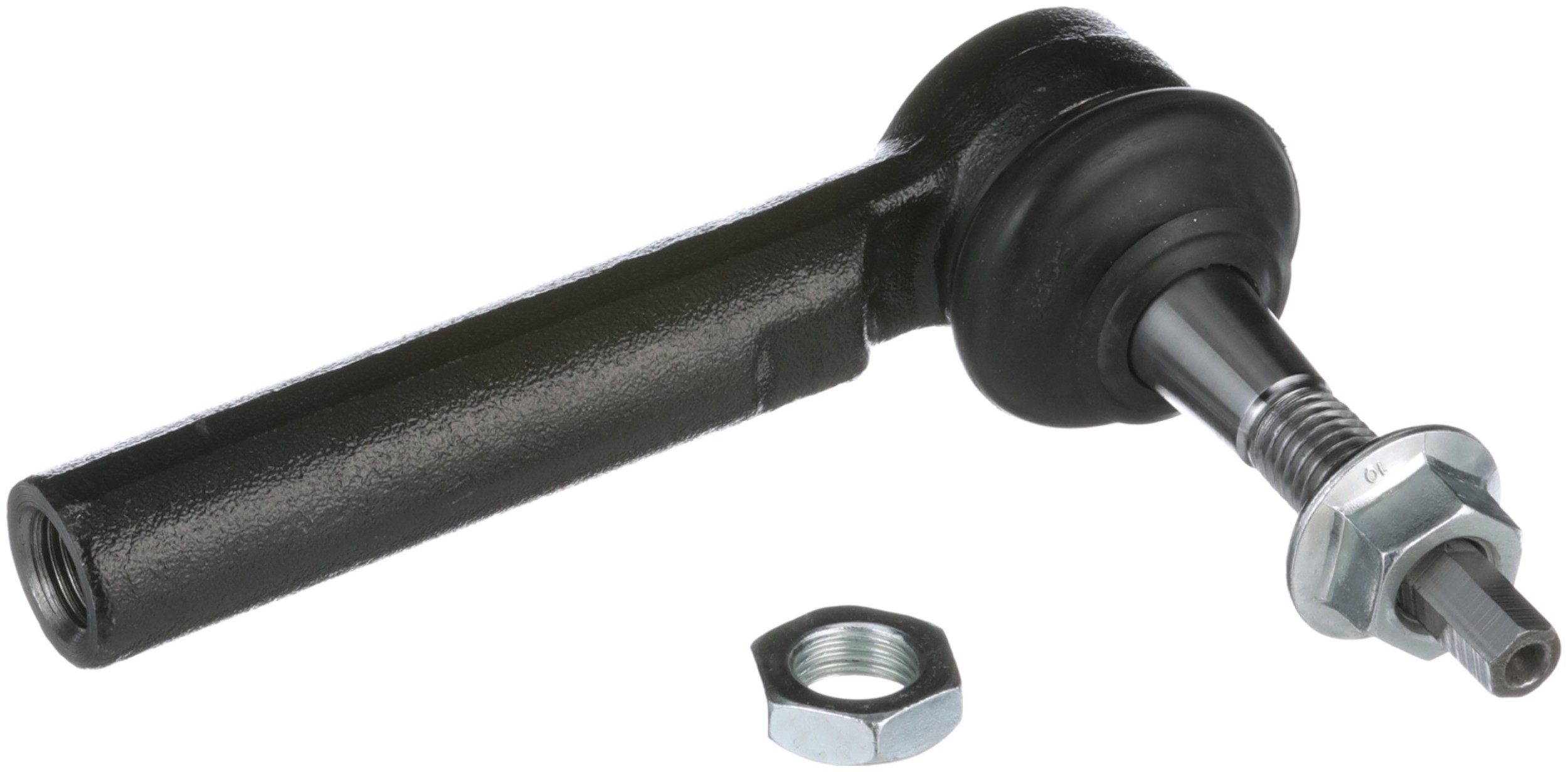

Delphi TA5317 Steering Tie Rod End

Delphi TA5317 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

1786	19.20 MM
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Outer
662	19.20 MM
662	0.756 IN
627	1.56 LB
Length	164.00 MM
Stud Length	0.756 IN
Stud Length	19.20 MM
Width	43 MM
Height	123.00 MM
36	25.00 MM
36	0.984 IN
End 2 Gender	Female
1786	0.756 IN
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Pre-greased	Yes
Length – Stud Centre to End	5.551 IN
Length – Stud Centre to End	141.00 MM
Color	Black

Vehicle Applications:

Make	Model	Years
Cadillac	Escalade ESV	2015 to 2020
Cadillac	Escalade	2015 to 2020
Chevrolet	Silverado 1500 LD	2019 to 2019
Chevrolet	Silverado 1500	2014 to 2018
Chevrolet	Suburban	2015 to 2020
Chevrolet	Tahoe	2015 to 2020
GMC	Sierra 1500 Limited	2019 to 2019
GMC	Sierra 1500	2014 to 2018
GMC	Yukon XL	2015 to 2020
GMC	Yukon	2015 to 2020
