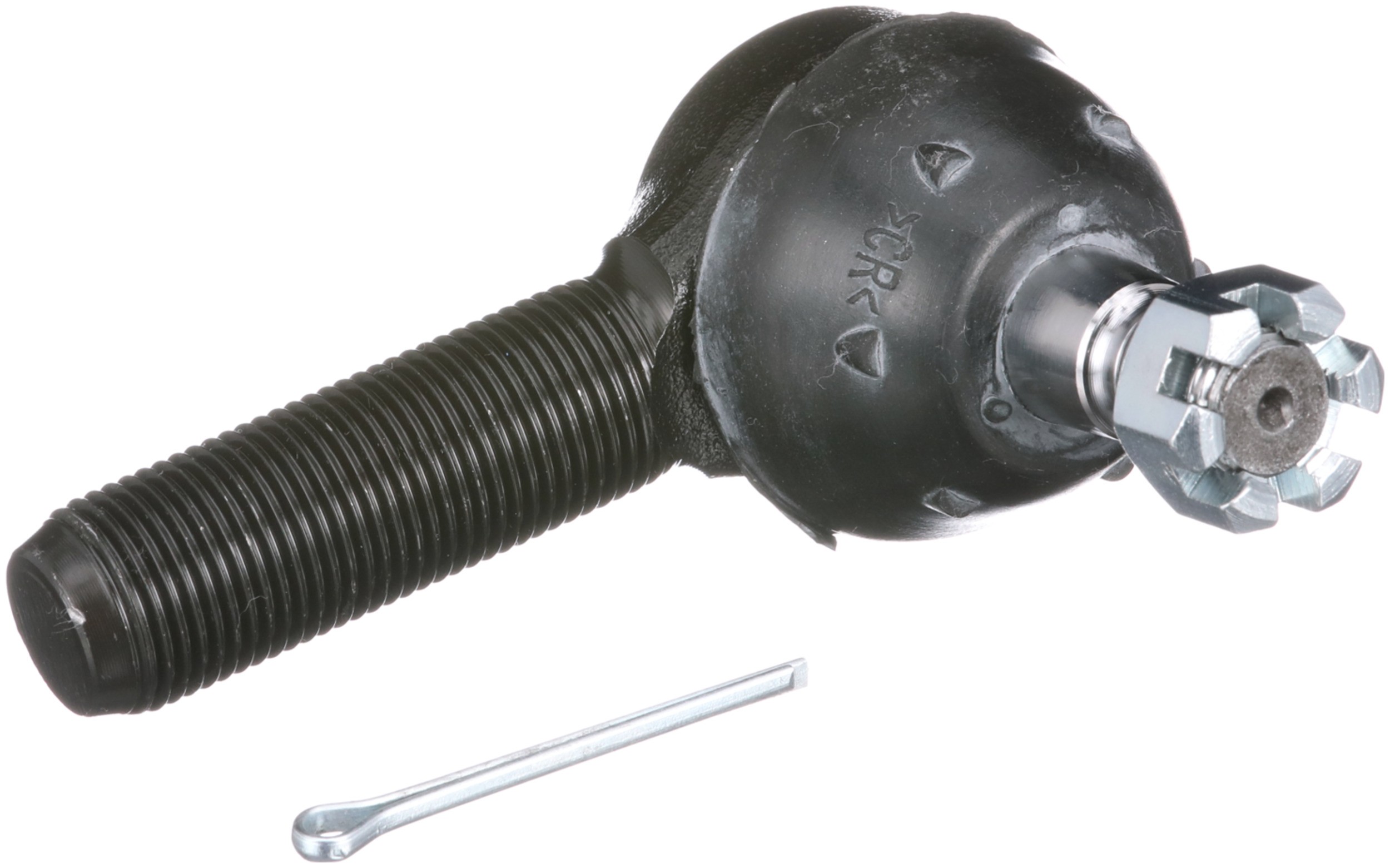

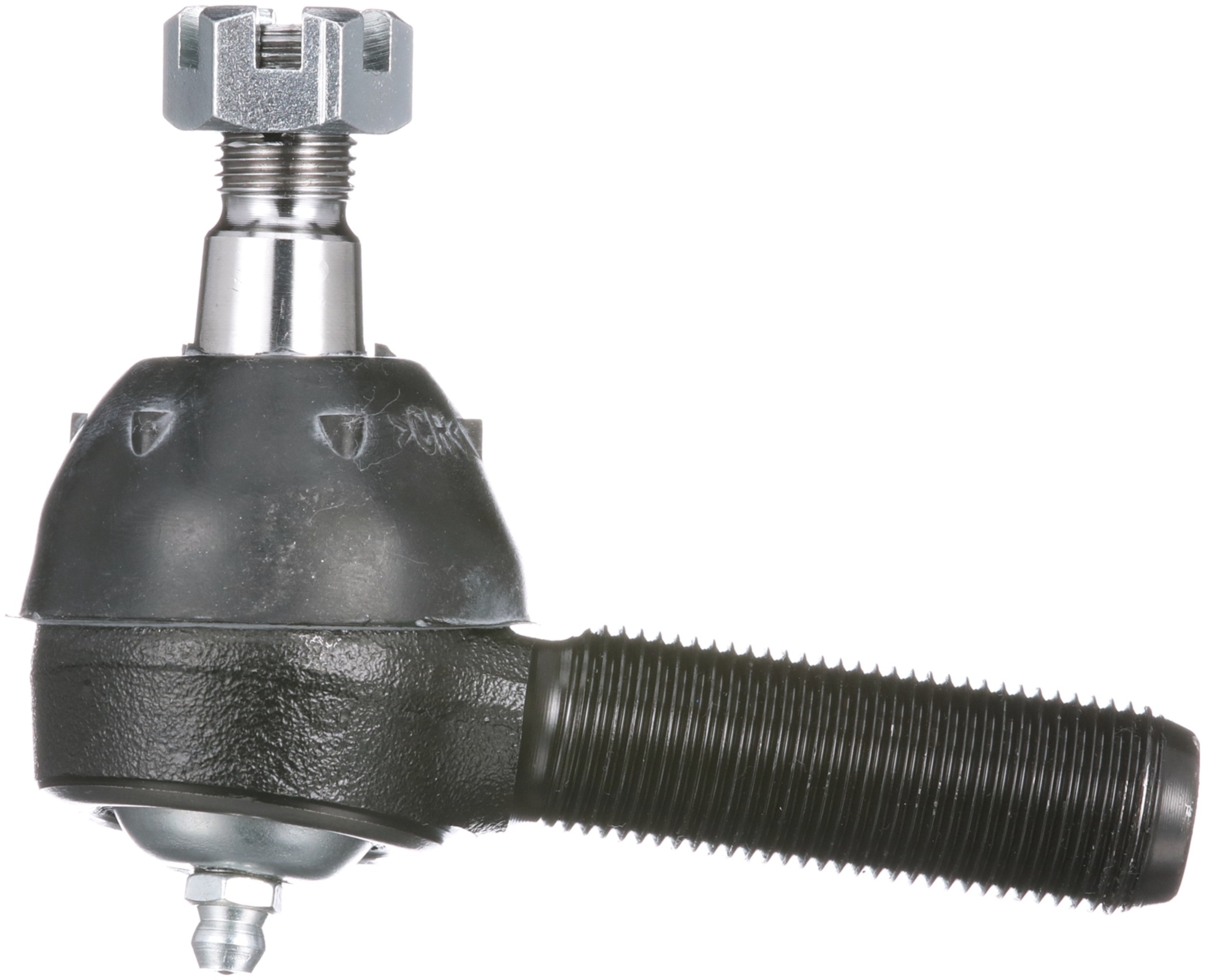

Delphi TA5333 Steering Tie Rod End

Delphi TA5333 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Bearing Material	Plastic
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	Yes
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Male
9090	Rubber
9091	Steel
Color	Black
Length – Stud Centre to End	80.00 MM
881	Threaded
Position(s)	Outer
Length – Stud Centre to End	3.150 IN
Height	79.80 MM
Width	41 MM
Stud Length	16.00 MM
Stud Length	0.630 IN
Length	101.00 MM
1786	0.630 IN
1786	16.00 MM
36	0.750 IN
36	19.05 MM
627	0.79 LB
662	0.630 IN
662	16.00 MM
End 2 Thread Direction	Counterclockwise (Left)
Greaseable	Yes
