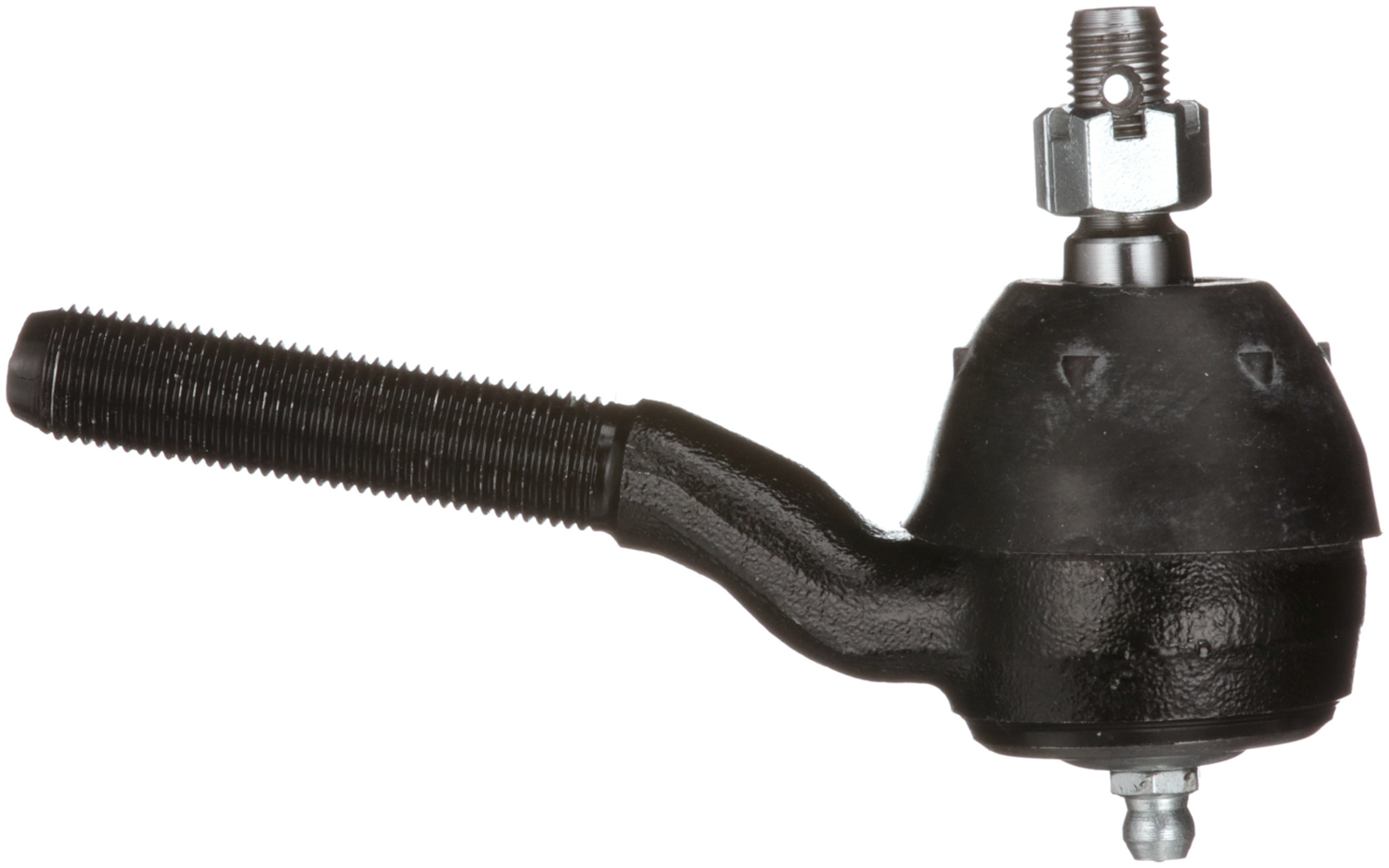

Delphi TA5336 Steering Tie Rod End

Delphi TA5336 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Stud Length	13.20 MM
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Length – Stud Centre to End	104.00 MM
Length – Stud Centre to End	4.094 IN
Height	76.30 MM
Width	39 MM
Adjustable	No
Stud Length	0.520 IN
Length	125.00 MM
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Outer
1786	0.520 IN
1786	13.20 MM
36	0.500 IN
36	12.70 MM
627	0.66 LB
662	0.520 IN
662	13.20 MM
Greaseable	Yes
Color	Black
End 1 Gender	Male
End 2 Gender	Male
Pre-greased	Yes
Grease Fitting Included	Yes
Dust Boot Included	Yes
Type	Bent
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
