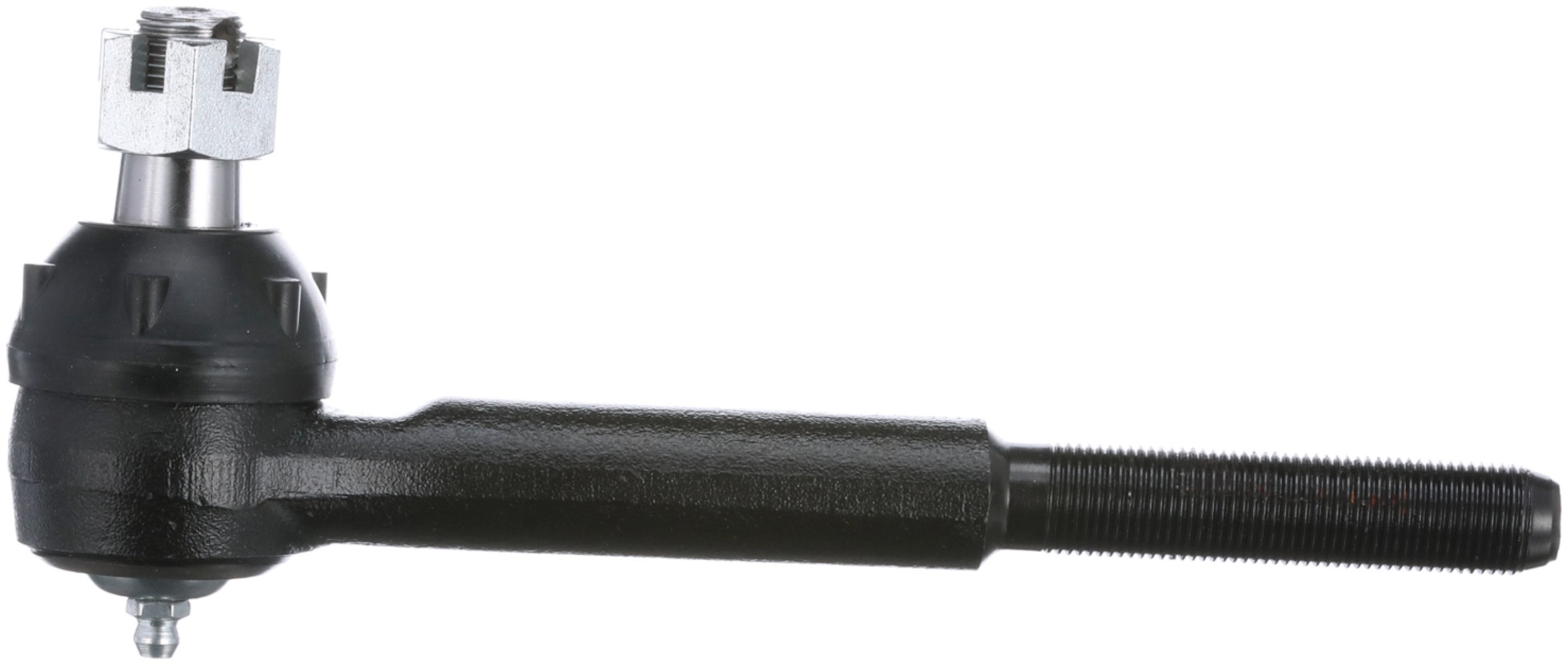

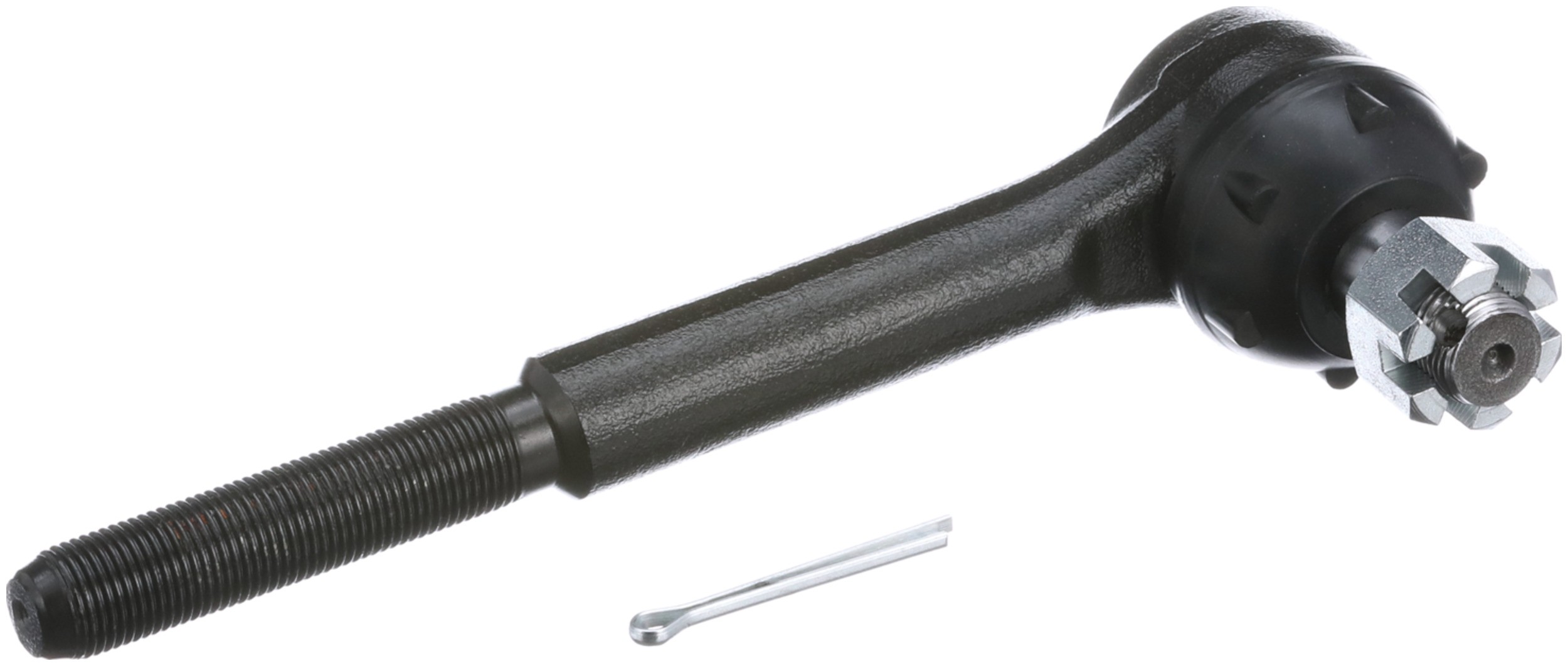

Delphi TA5347 Steering Tie Rod End

Delphi TA5347 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Dust Boot Included	Yes
Grease Fitting Included	Yes
Pre-greased	Yes
Stud Length	19.10 MM
End 2 Gender	Male
Height	90.80 MM
End 1 Gender	Male
Color	Black
Width	43 MM
End 2 Thread Direction	Counterclockwise (Left)
Bearing Material	Plastic
Greaseable	Yes
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Stud Length	0.752 IN
Length	213.00 MM
1786	0.752 IN
1786	19.10 MM
36	0.787 IN
36	20.00 MM
Length – Stud Centre to End	190.00 MM
Length – Stud Centre to End	7.480 IN
627	1.54 LB
662	0.752 IN
662	19.10 MM
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Left Outer, Outer, Right Inner. For the position specific to your vehicle, refer to the Applications.
Type	Straight

Vehicle Applications:

Make	Model	Years
Chevrolet	C20 Panel	1967 to 1967
Chevrolet	C20 Pickup	1965 to 1970
Chevrolet	C20 Suburban	1967 to 1970
Chevrolet	C30 Panel	1965 to 1966
Chevrolet	C30 Pickup	1965 to 1970
Chevrolet	G30 Van	1970 to 1970
Chevrolet	P20 Van	1968 to 1970
Chevrolet	P30 Van	1968 to 1970
GMC	1000	1966 to 1966
GMC	C25/C2500 Pickup	1967 to 1970
GMC	C35/C3500 Pickup	1967 to 1970
GMC	P25/P2500 Van	1968 to 1970
GMC	P35/P3500 Van	1968 to 1970
