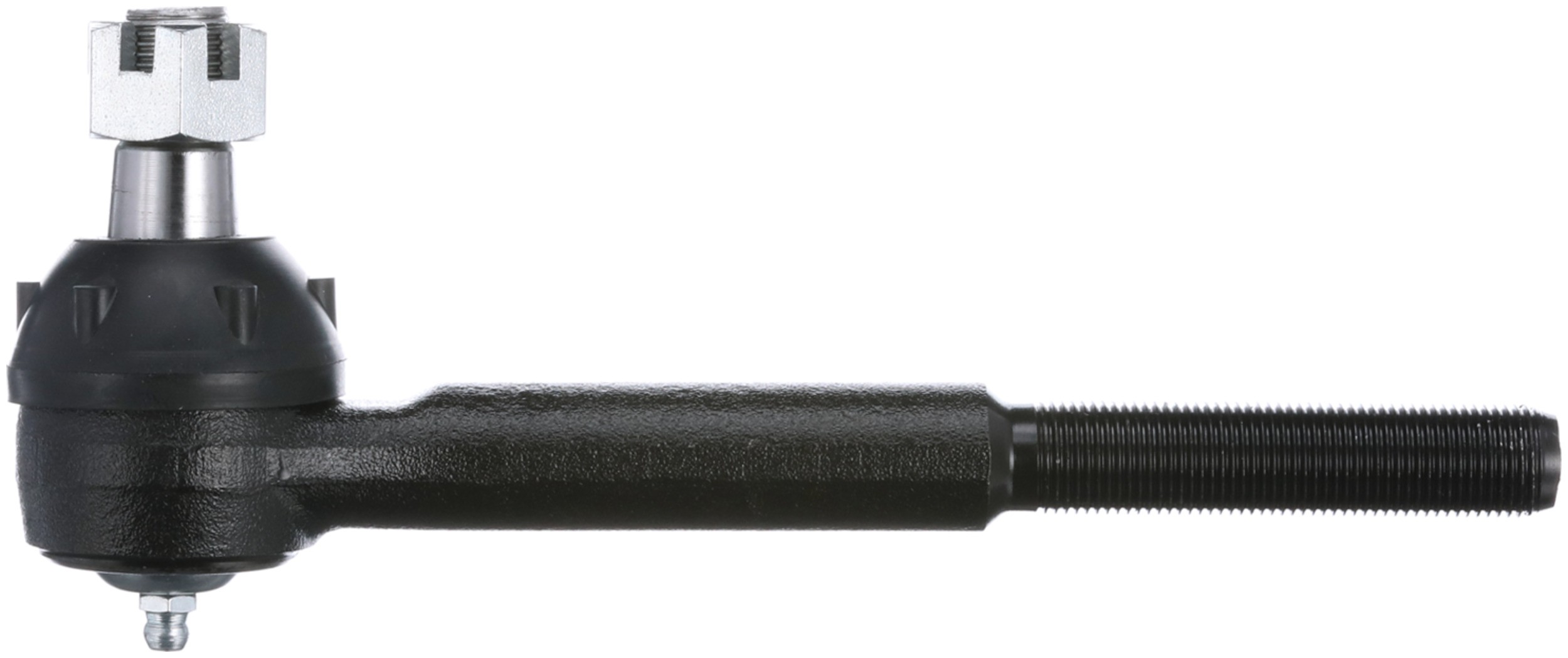

Delphi TA5348 Steering Tie Rod End

Delphi TA5348 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

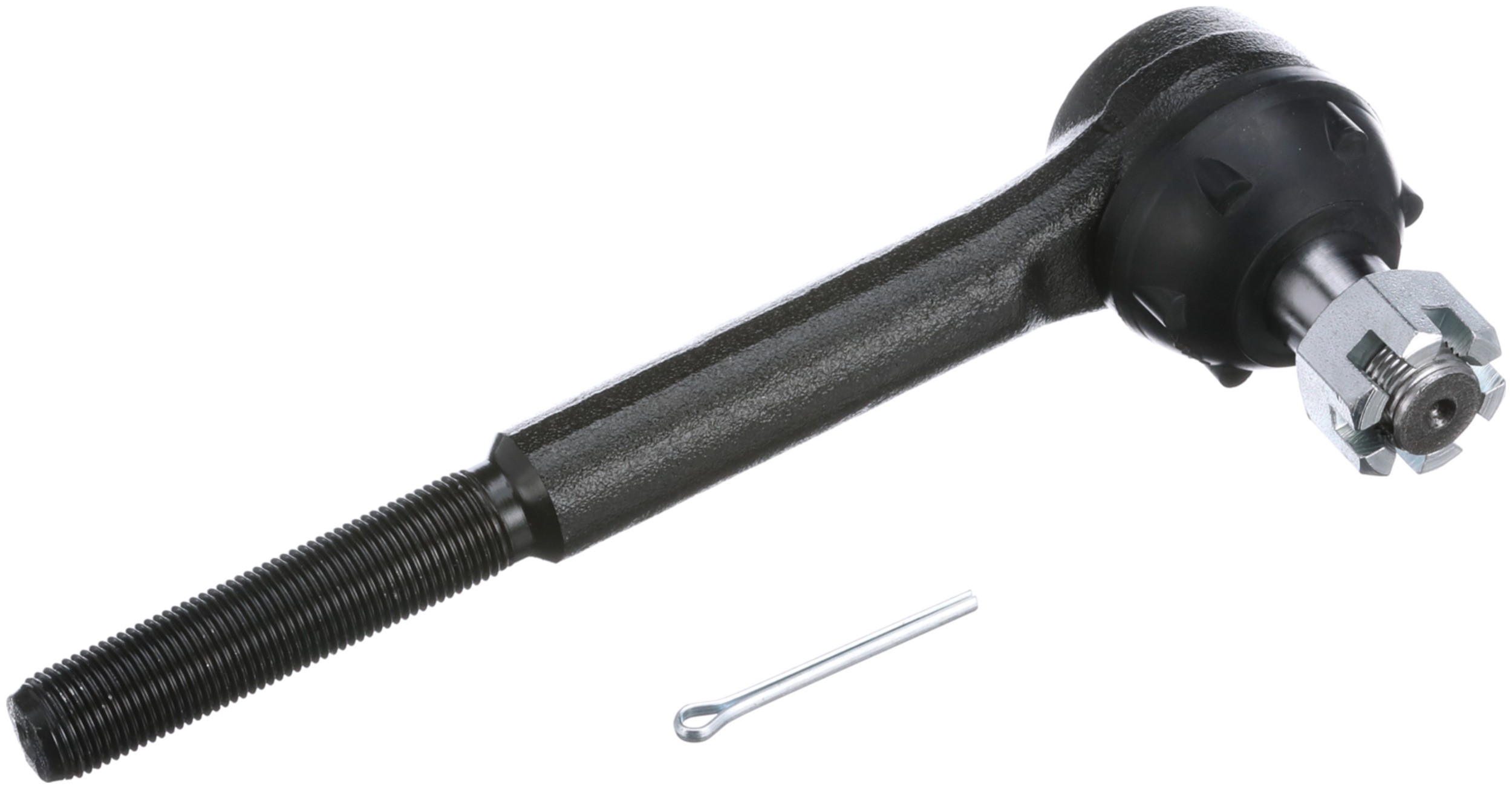

Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Dust Boot Included	Yes
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	Yes
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
Grease Fitting Included	Yes
Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Male
Color	Black
662	19.10 MM
662	0.752 IN
627	1.54 LB
36	20.00 MM
36	0.787 IN
1786	19.10 MM
1786	0.752 IN
Position(s)	Inner, Left Inner. For the position specific to your vehicle, refer to the Applications.
881	Threaded
9090	Rubber
9091	Steel
Length	213.00 MM
Stud Length	0.752 IN
Stud Length	19.10 MM
Width	43 MM
Height	90.80 MM
Length – Stud Centre to End	7.480 IN
Length – Stud Centre to End	190.00 MM

Vehicle Applications:

Make	Model	Years
Chevrolet	C20 Panel	1967 to 1967
Chevrolet	C20 Pickup	1965 to 1970
Chevrolet	C20 Suburban	1967 to 1970
Chevrolet	C30 Panel	1965 to 1966
Chevrolet	C30 Pickup	1965 to 1970
Chevrolet	G30 Van	1970 to 1970
Chevrolet	P20 Van	1968 to 1970
Chevrolet	P30 Van	1968 to 1970
GMC	1000	1966 to 1966
GMC	C25/C2500 Pickup	1967 to 1970
GMC	C35/C3500 Pickup	1967 to 1970
GMC	P25/P2500 Van	1968 to 1970
GMC	P35/P3500 Van	1968 to 1970
