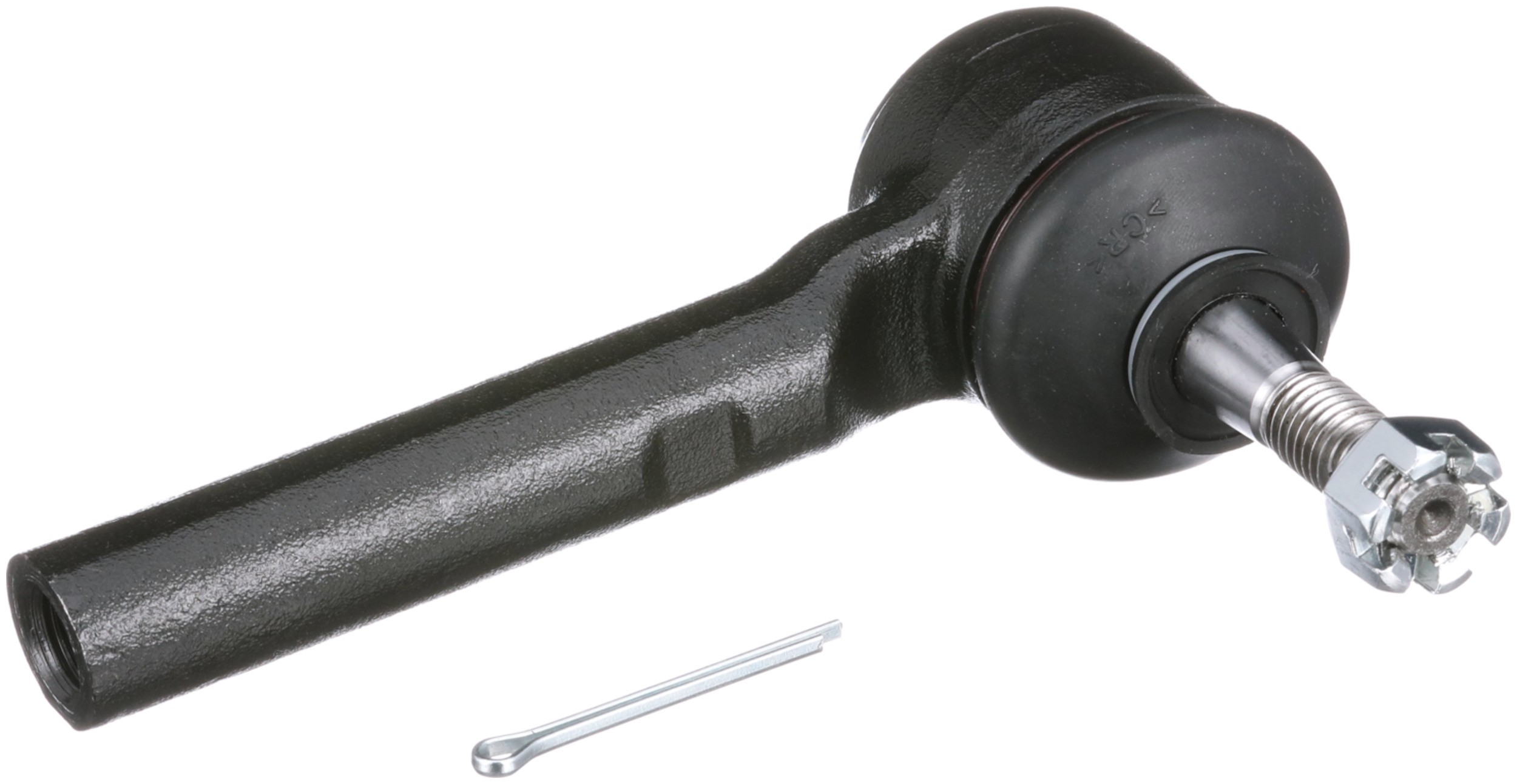

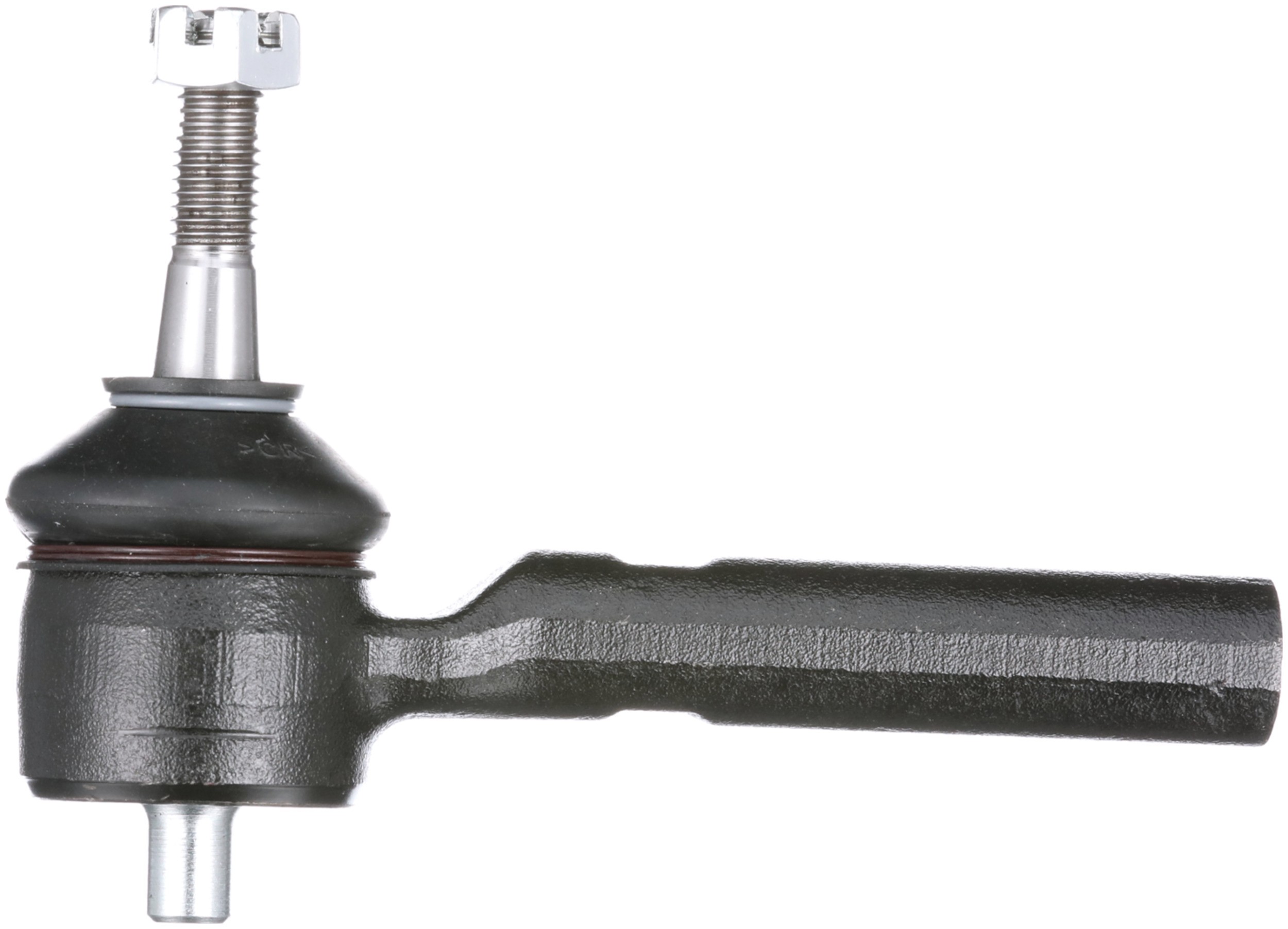

Delphi TA5349 Steering Tie Rod End

Delphi TA5349 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Grease Fitting Included	No
Pre-greased	Yes
662	0.630 IN
Stud Length	0.630 IN
Stud Length	16.00 MM
End 2 Gender	Female
Position(s)	Rear Outer
9090	Rubber
9091	Steel
662	16.00 MM
Grade Type	Standard Replacement
End 1 Gender	Male
Color	Black
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Width	47.5 MM
Height	116.30 MM
Length – Stud Centre to End	5.512 IN
Length – Stud Centre to End	140.00 MM
Length	167.00 MM
627	1.59 LB
Mounting Hardware Included	Yes
36	22.00 MM
36	0.866 IN
1786	16.00 MM
Housing Material	Steel
Adjustable	No
881	Threaded
Greaseable	No
Bearing Material	Plastic
1786	0.630 IN
Type	Straight
Dust Boot Included	Yes
