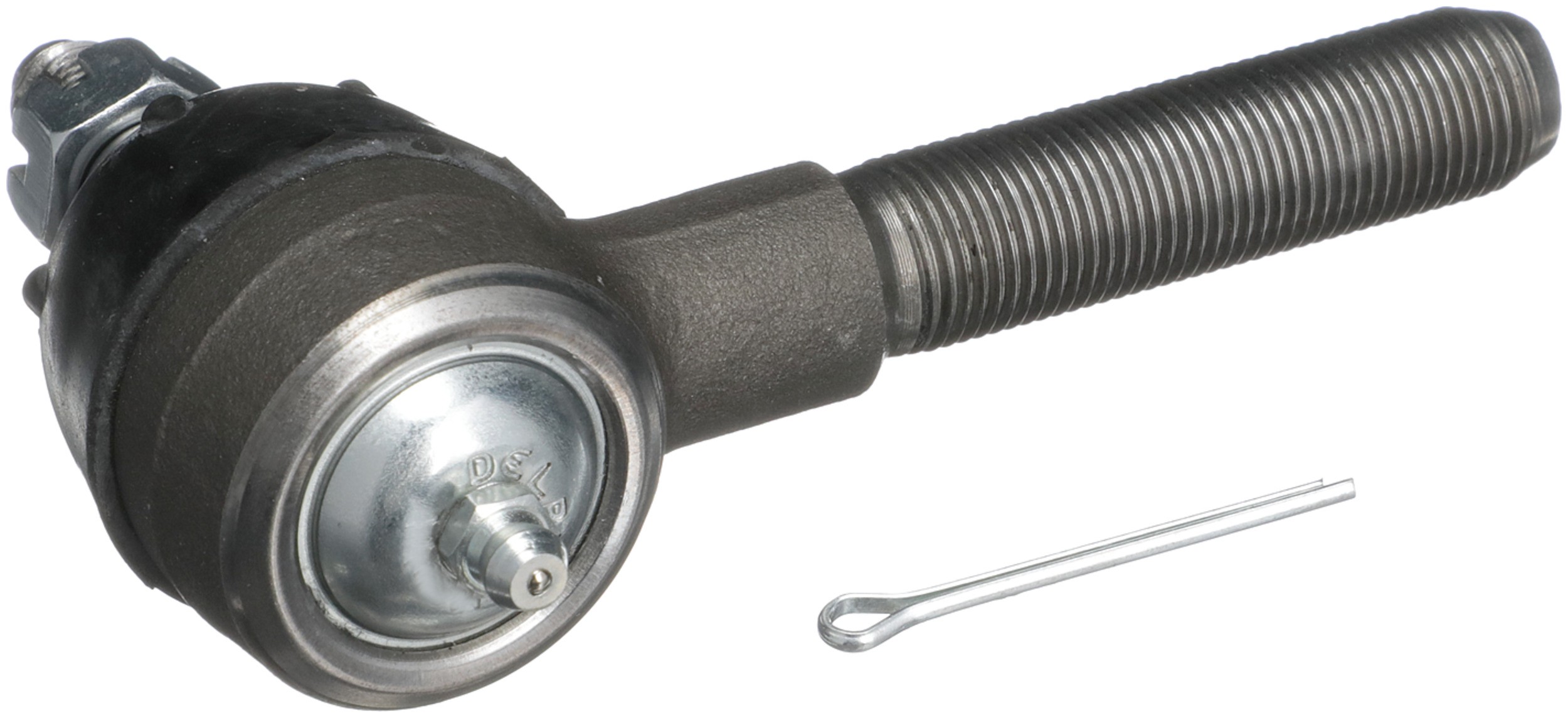

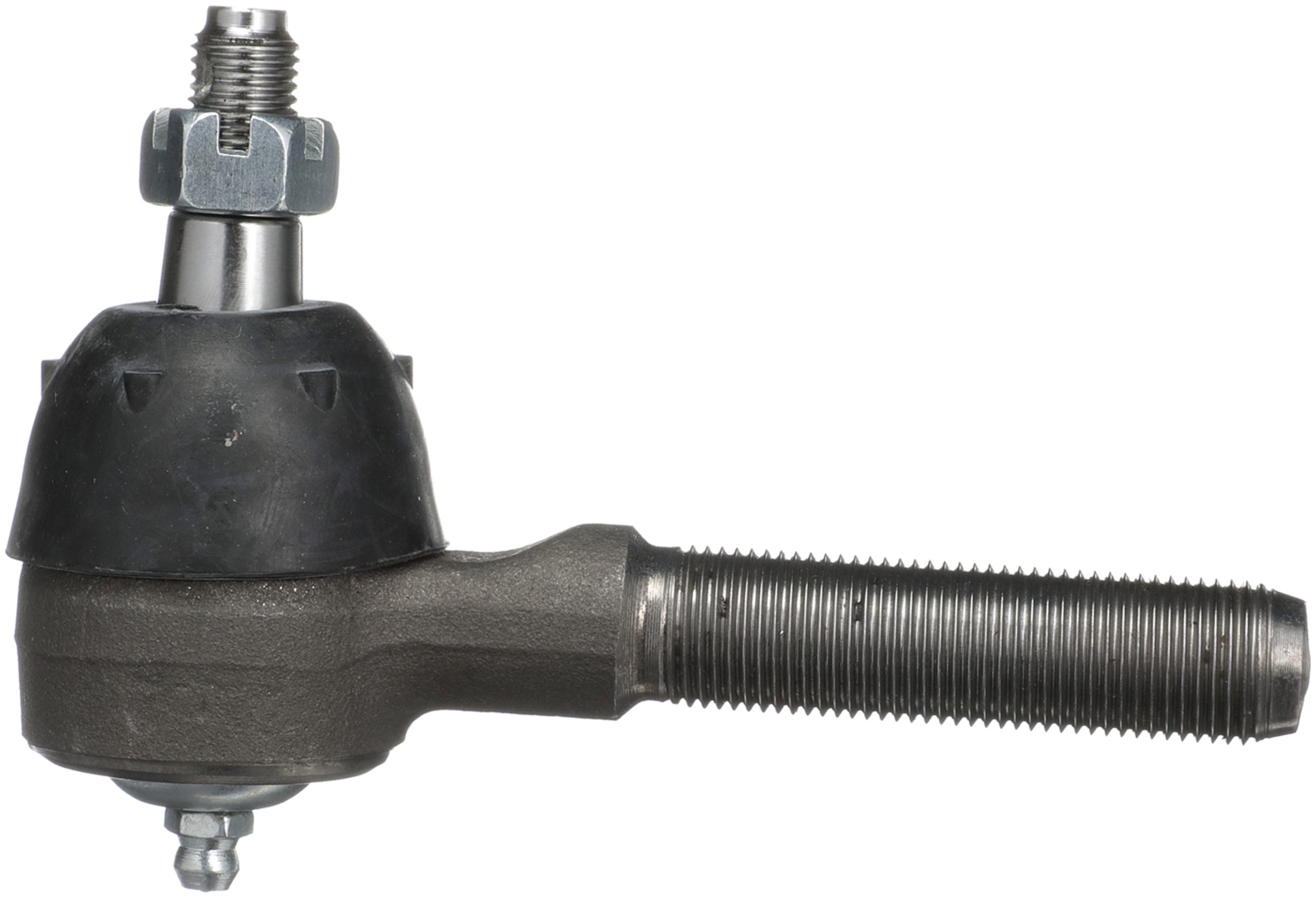

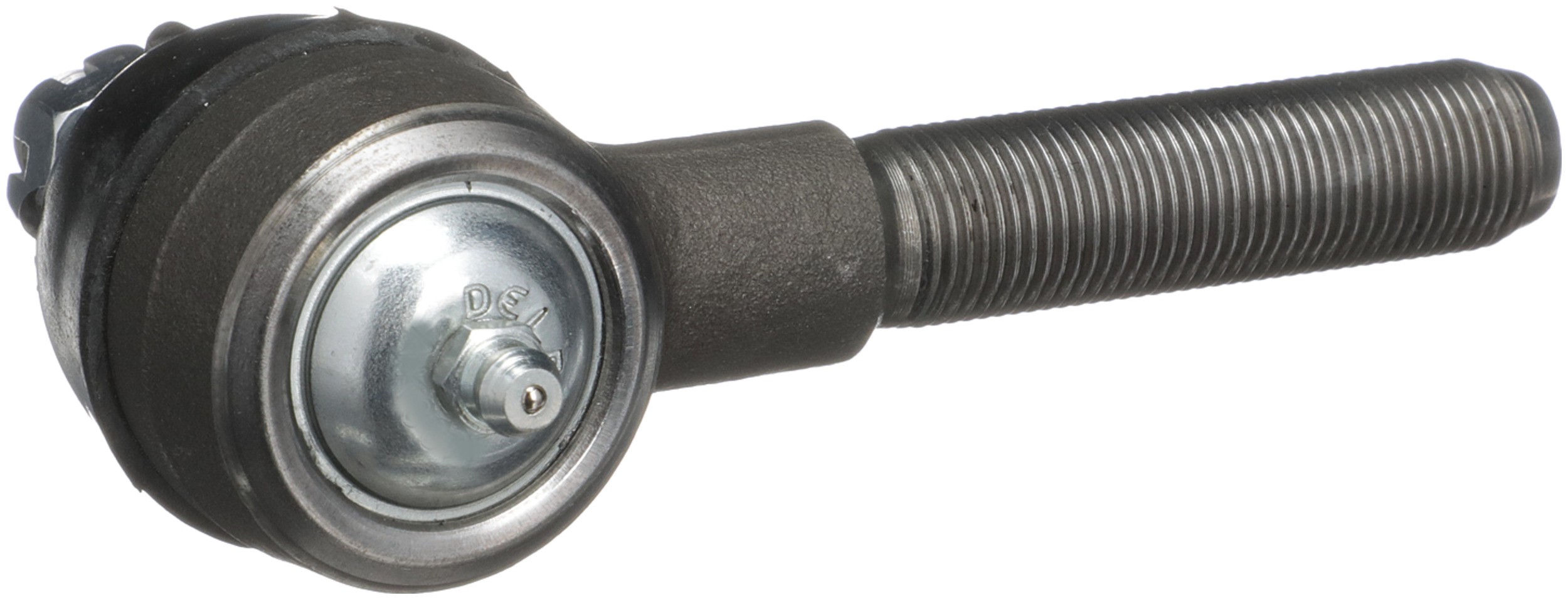

Delphi TA5391 Steering Tie Rod End

Delphi TA5391 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

End 2 Gender	Male
Position(s)	Left Outer, Outer, Right Inner. For the position specific to your vehicle, refer to the Applications.
881	Threaded
9090	Rubber
9091	Steel
Housing Material	Steel
Greaseable	Yes
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Length	125.00 MM
Width	38 MM
Height	82.00 MM
Length – Stud Centre to End	4.094 IN
Length – Stud Centre to End	104.00 MM
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	Yes
Pre-greased	Yes
End 1 Gender	Male
Color	Black
Grade Type	Standard Replacement
Adjustable	No
627	0.88 LB
Mounting Hardware Included	Yes
