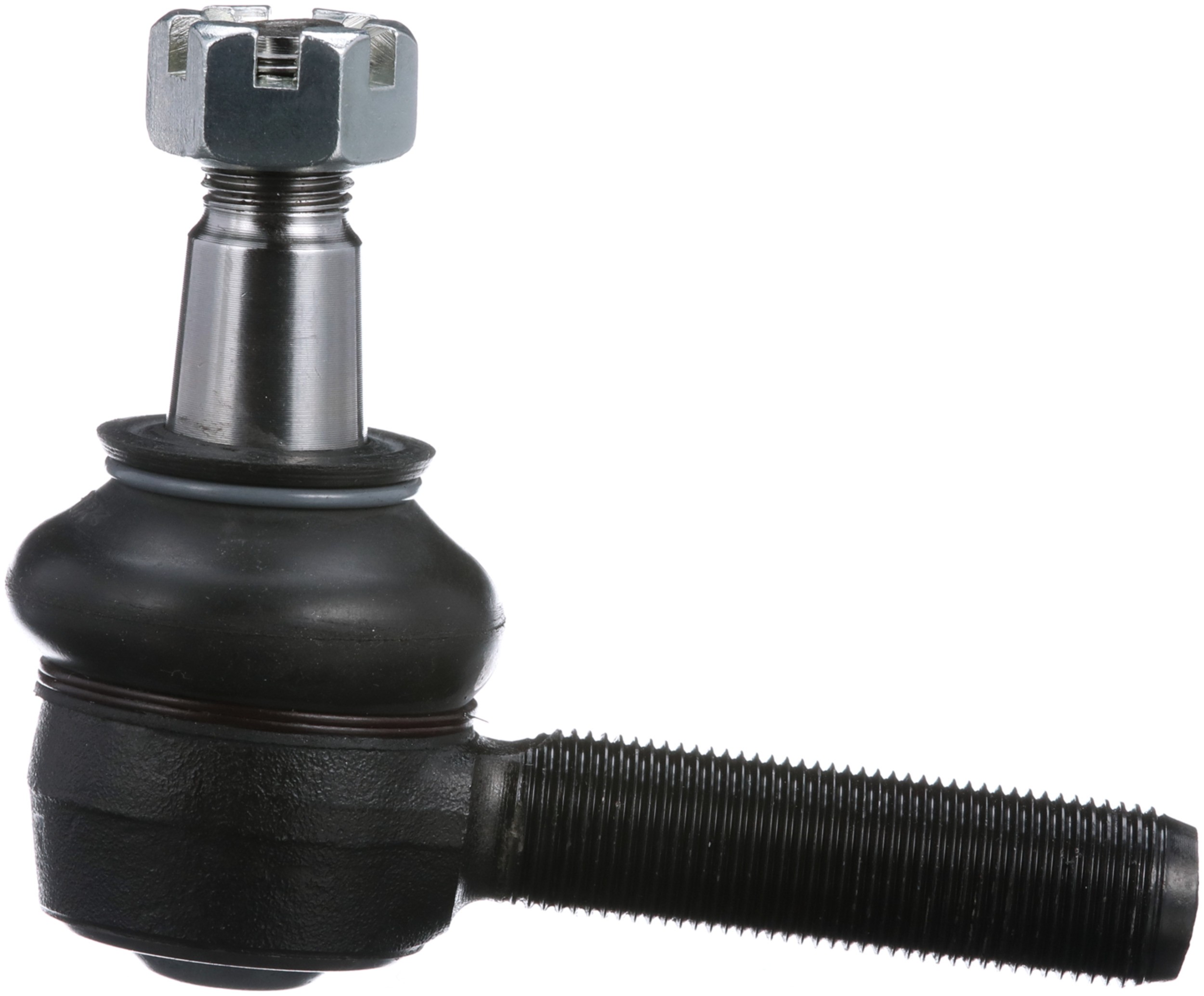

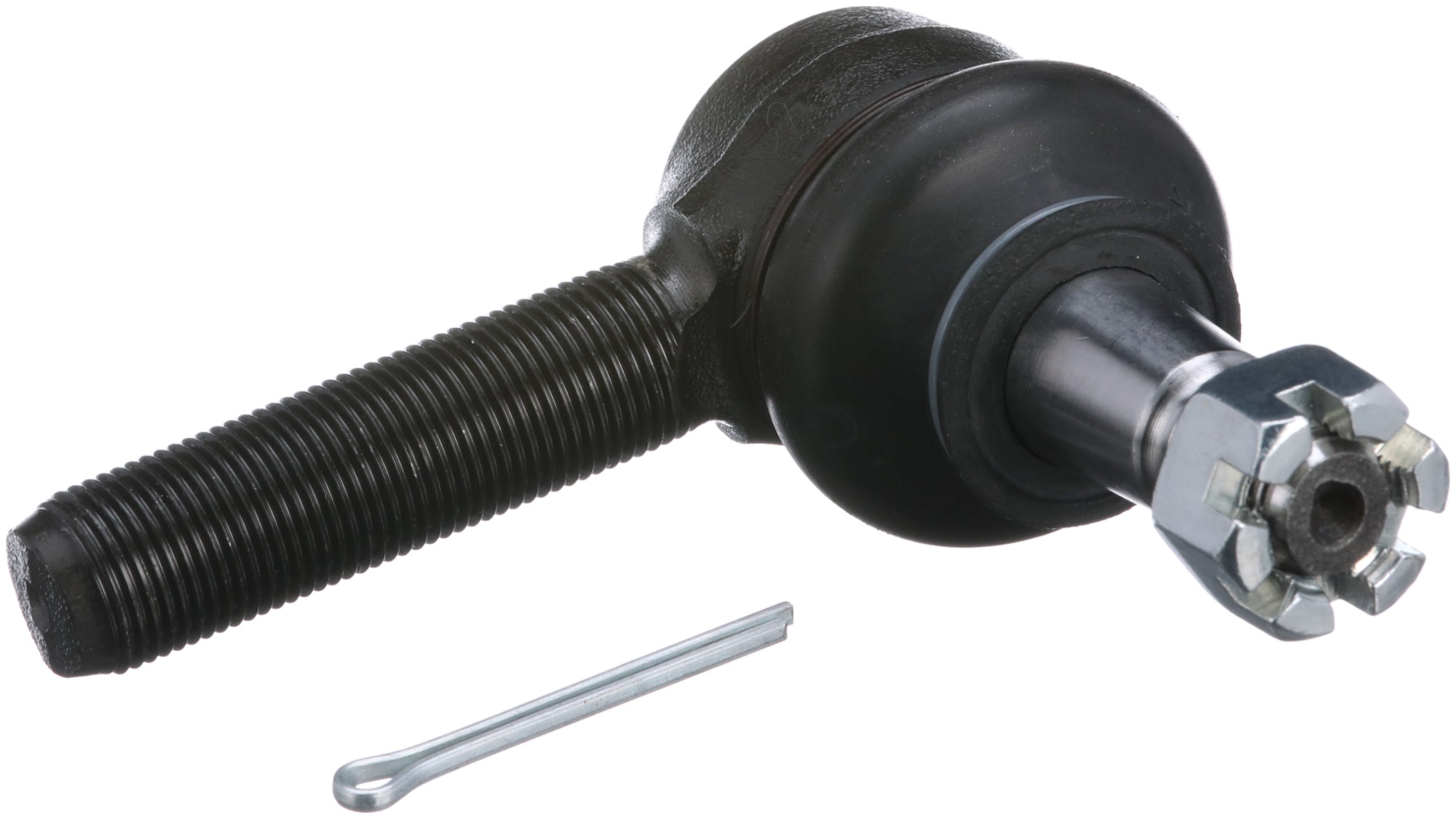

Delphi TA5398 Steering Tie Rod End

Delphi TA5398 Steering Tie Rod End

Features:

Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Pre-greased	Yes
End 2 Gender	Male
End 1 Gender	Male
Color	Black
Housing Material	Steel
9090	Rubber
881	Threaded
Grade Type	Standard Replacement
Position(s)	Inner, Left Inner, Right Outer. For the position specific to your vehicle, refer to the Applications.
Length – Stud Centre to End	3.445 IN
Length – Stud Centre to End	87.50 MM
Grease Fitting Included	No
Mounting Hardware Included	Yes
Type	Straight
9091	Steel
Dust Boot Included	Yes
Length	110.00 MM
Width	46 MM
Height	87.00 MM
627	1.08 LB
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	No
Adjustable	No

Vehicle Applications:

Make	Model	Years
Chrysler	C33	1942 to 1942
Chrysler	C34	1942 to 1942
Chrysler	C36	1942 to 1942
Chrysler	Crown Imperial	1941 to 1942
Chrysler	Imperial C-40	1946 to 1948
Chrysler	New Yorker	1941 to 1948
Chrysler	Royal Series	1946 to 1948
Chrysler	Royal	1941 to 1942
Chrysler	Saratoga Series	1946 to 1948
Chrysler	Saratoga	1941 to 1942
Chrysler	Town & Country	1941 to 1948
Chrysler	Windsor Series	1946 to 1948
Chrysler	Windsor	1941 to 1942
DeSoto	S-11	1946 to 1948
Dodge	B-1 Truck	1948 to 1949
Dodge	B-1	1948 to 1949
Dodge	B-2	1950 to 1950
Dodge	B-3	1951 to 1952
Dodge	B-4 Truck	1953 to 1953
Dodge	C-1 Truck	1954 to 1955
Dodge	C-1	1954 to 1955
Dodge	C-3	1955 to 1955
Dodge	C-4	1956 to 1956
Dodge	Coronet	1955 to 1956
Dodge	Custom Series D-22	1942 to 1942
Dodge	Custom	1946 to 1948
Dodge	D100 Pickup	1957 to 1959
Dodge	D100 Series	1960 to 1960
Dodge	D200 Pickup	1957 to 1971
Dodge	D200 Series	1960 to 1967
Dodge	D300 Pickup	1957 to 1971
Dodge	Deluxe	1946 to 1948
Dodge	M300	1968 to 1974
Dodge	P200 Van	1973 to 1974
Dodge	P200	1972 to 1972
Dodge	P300 Series	1957 to 1959
Dodge	P300 Van	1960 to 1974
Dodge	P300	1961 to 1972
Dodge	W200 Pickup	1957 to 1959
