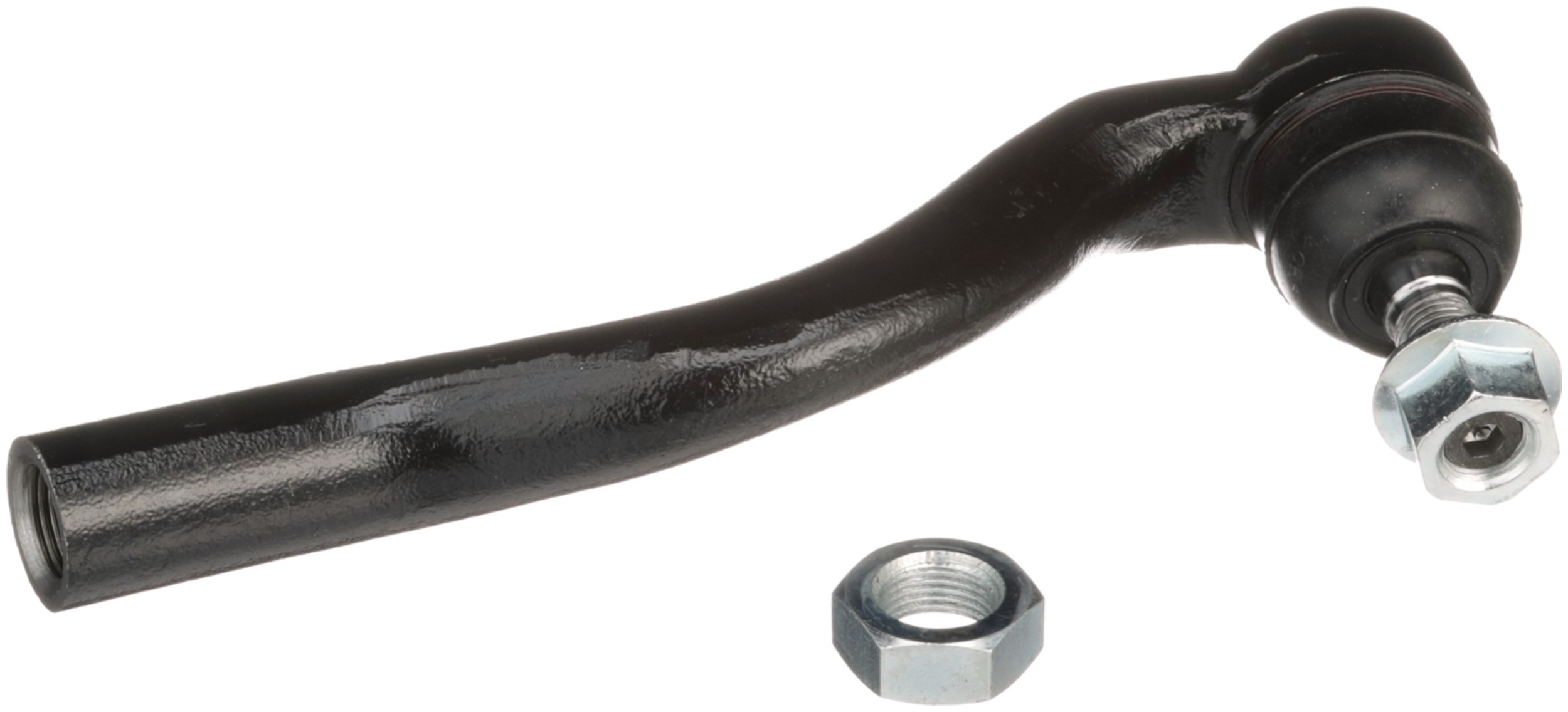

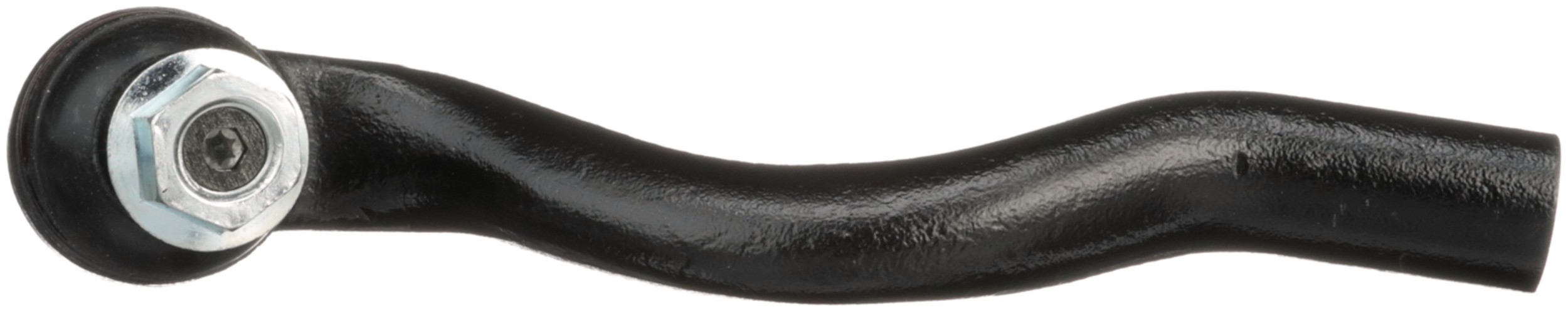

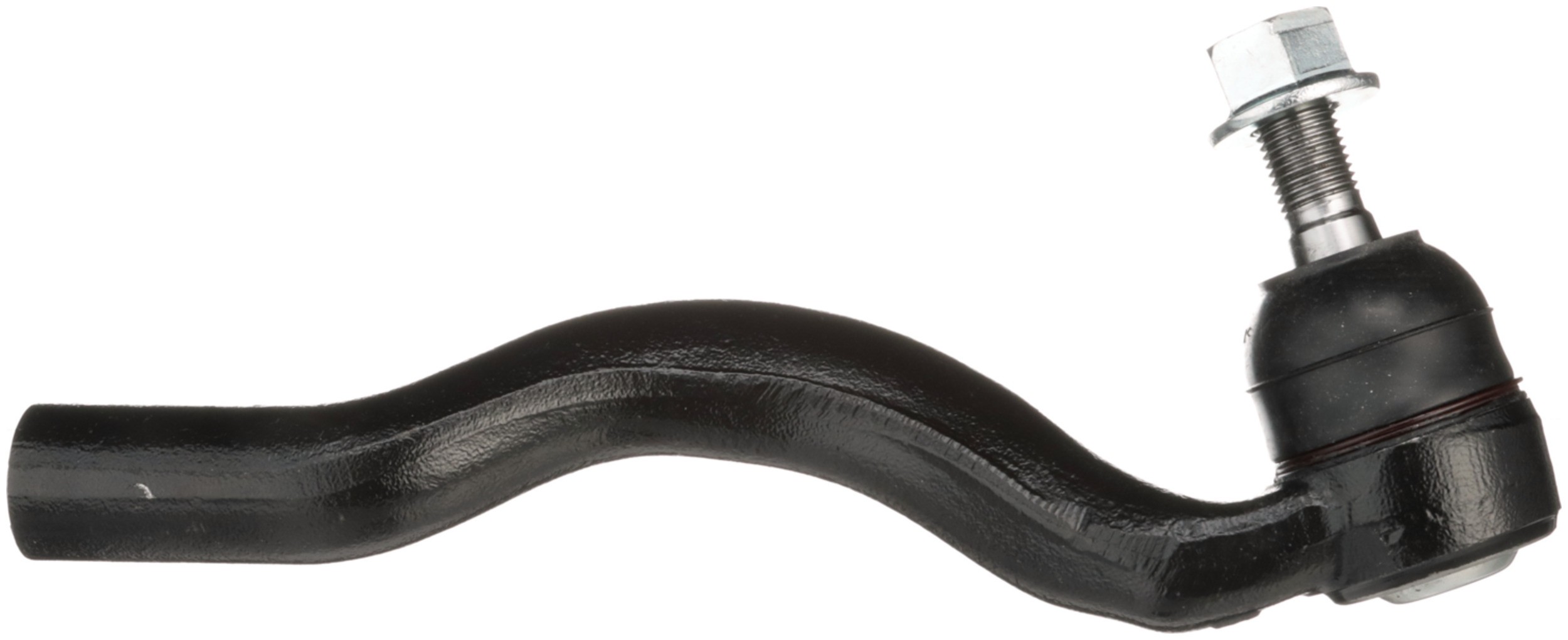

Delphi TA5467 Steering Tie Rod End

Delphi TA5467 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Length – Stud Centre to End	224.00 MM
Length – Stud Centre to End	8.819 IN
Height	98.00 MM
Width	59 MM
Length	246.00 MM
Stud Length	0.720 IN
Stud Length	18.30 MM
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Pre-greased	Yes
662	0.720 IN
627	2.82 LB
Adjustable	No
36	26.00 MM
36	1.024 IN
1786	18.30 MM
1786	0.720 IN
Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Grease Fitting Included	No
End 2 Gender	Female
Dust Boot Included	Yes
Type	Bent
Color	Black
662	18.30 MM
Position(s)	Left Outer
881	Threaded
9090	Rubber
9091	Steel
