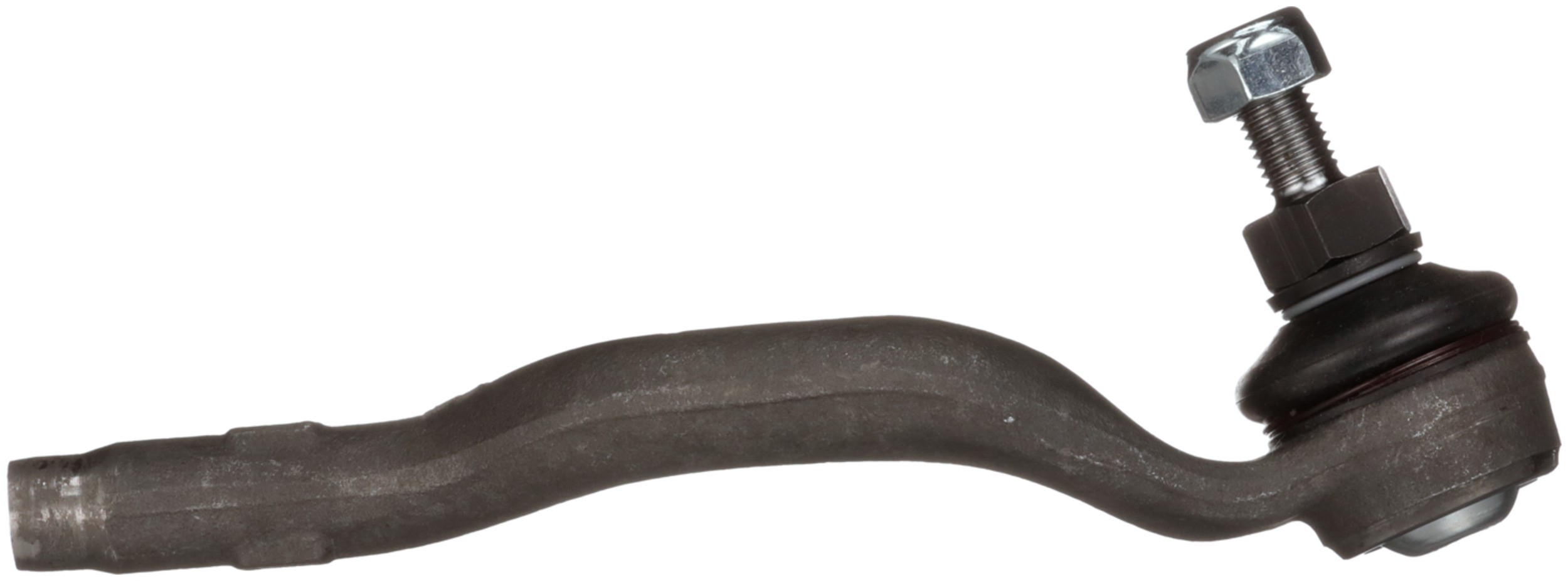

Delphi TA5493 Steering Tie Rod End

Delphi TA5493 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

End 1 Thread Direction	Clockwise (Right)
Length – Stud Centre to End	8.032 IN
Length – Stud Centre to End	204.00 MM
End 2 Thread Direction	Clockwise (Right)
Length	226.00 MM
Color	Black
End 2 Gender	Female
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Bent
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
Housing Material	Steel
Adjustable	No
Greaseable	No
Bearing Material	Plastic
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Right Outer
Stud Length	0.638 IN
Stud Length	16.20 MM
Width	47.2 MM
Height	80.00 MM
662	16.20 MM
662	0.638 IN
627	1.71 LB
36	19.50 MM
36	0.768 IN
1786	16.20 MM
1786	0.638 IN
