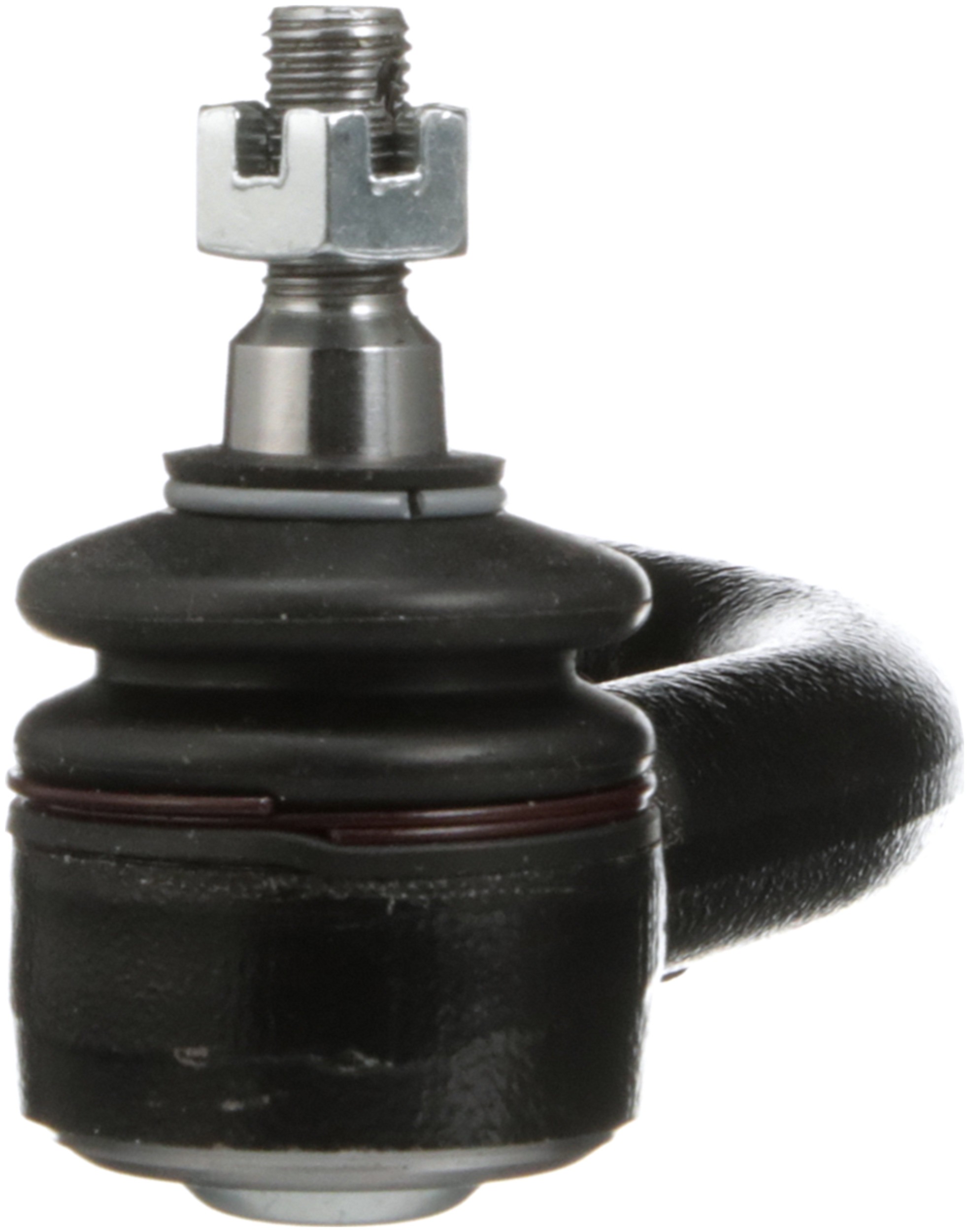

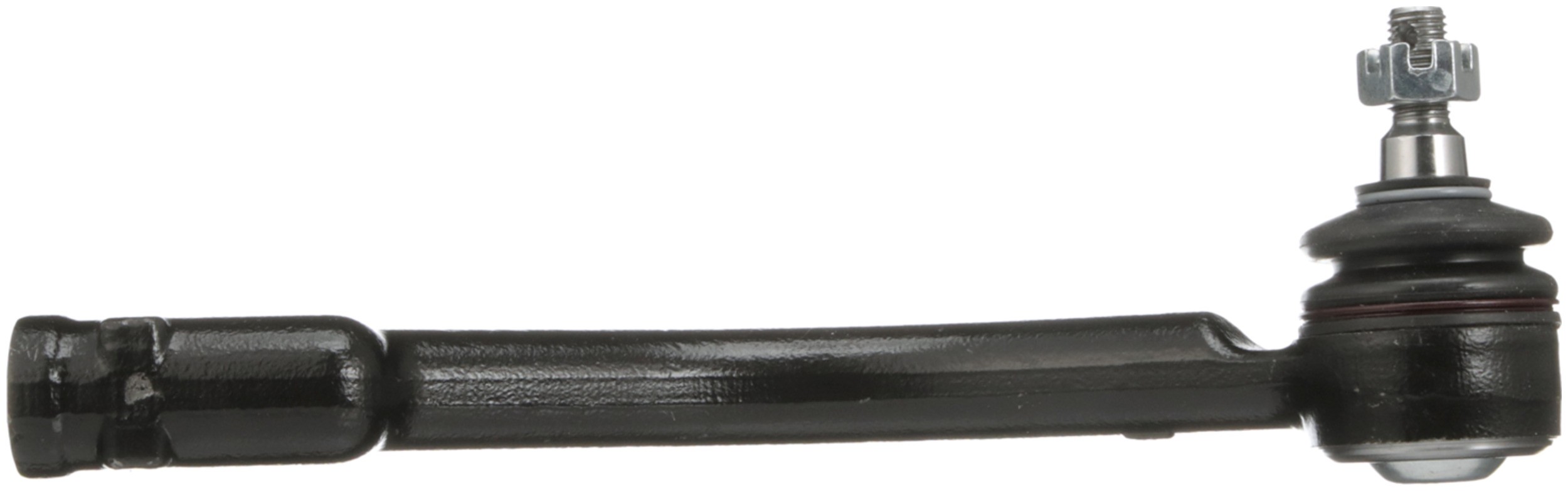

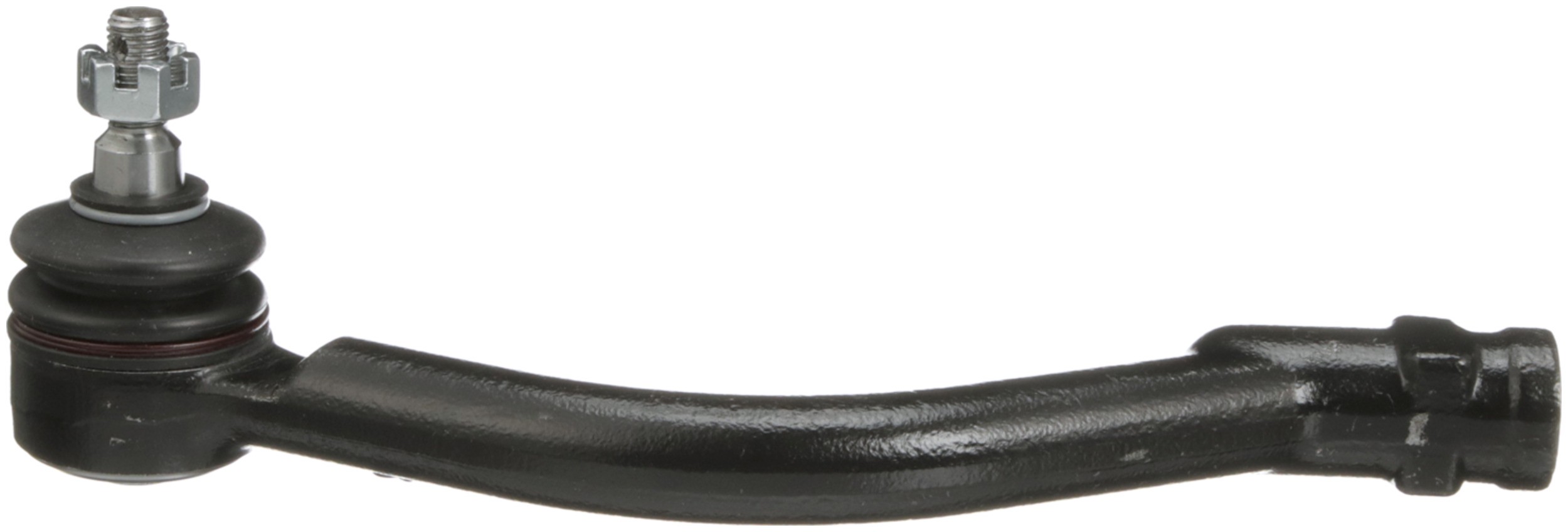

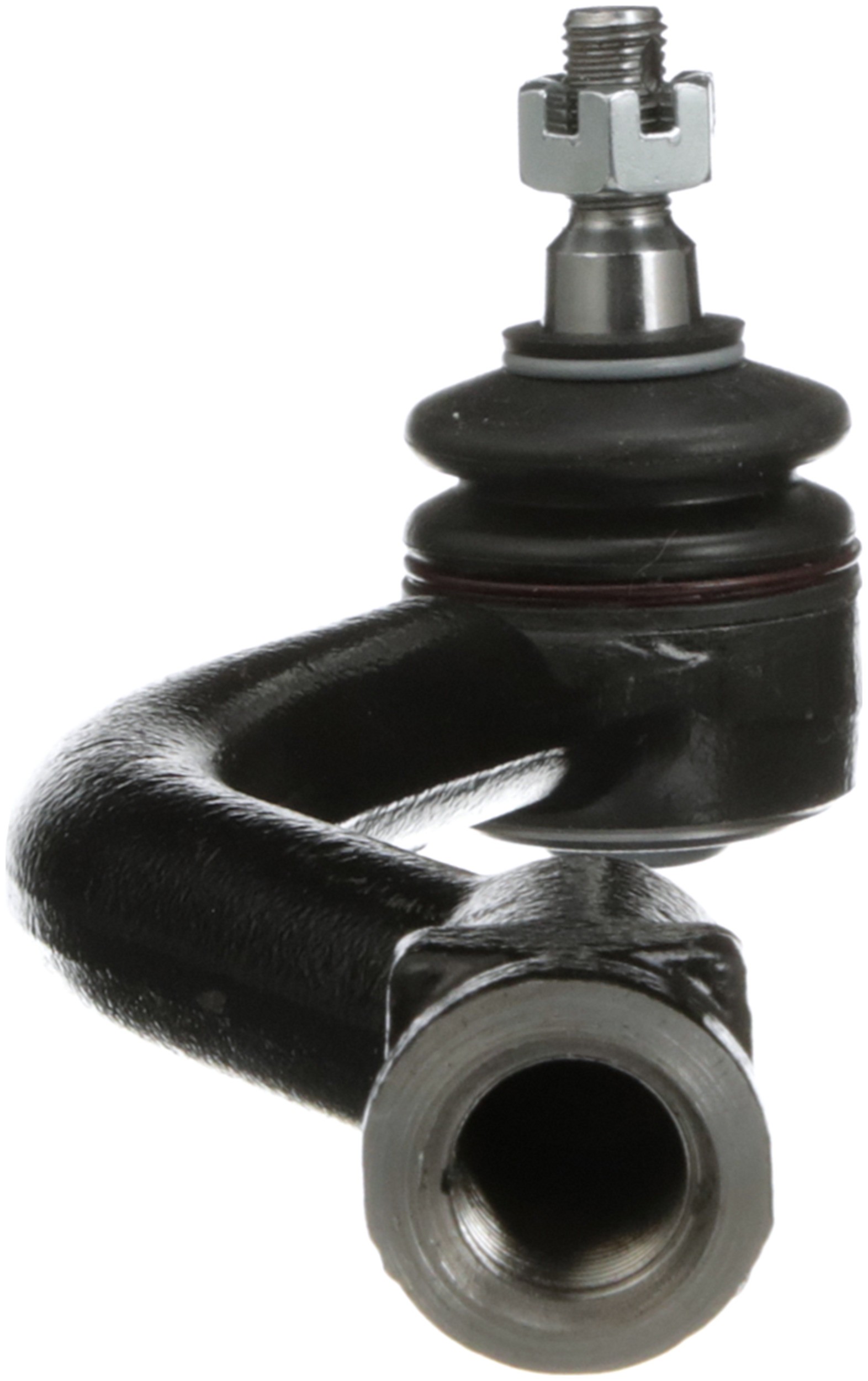

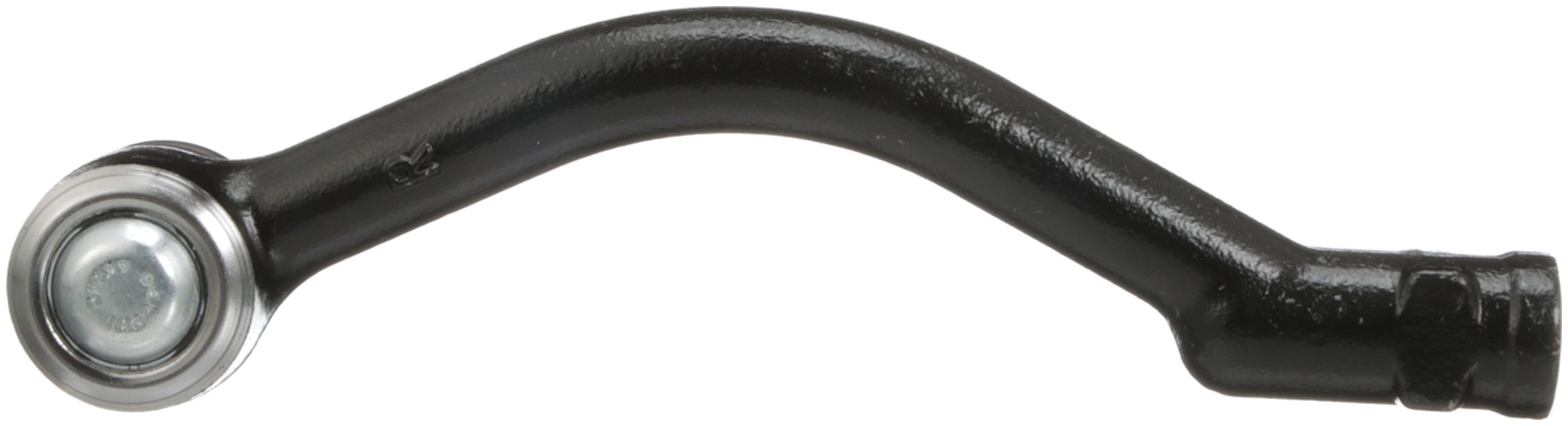

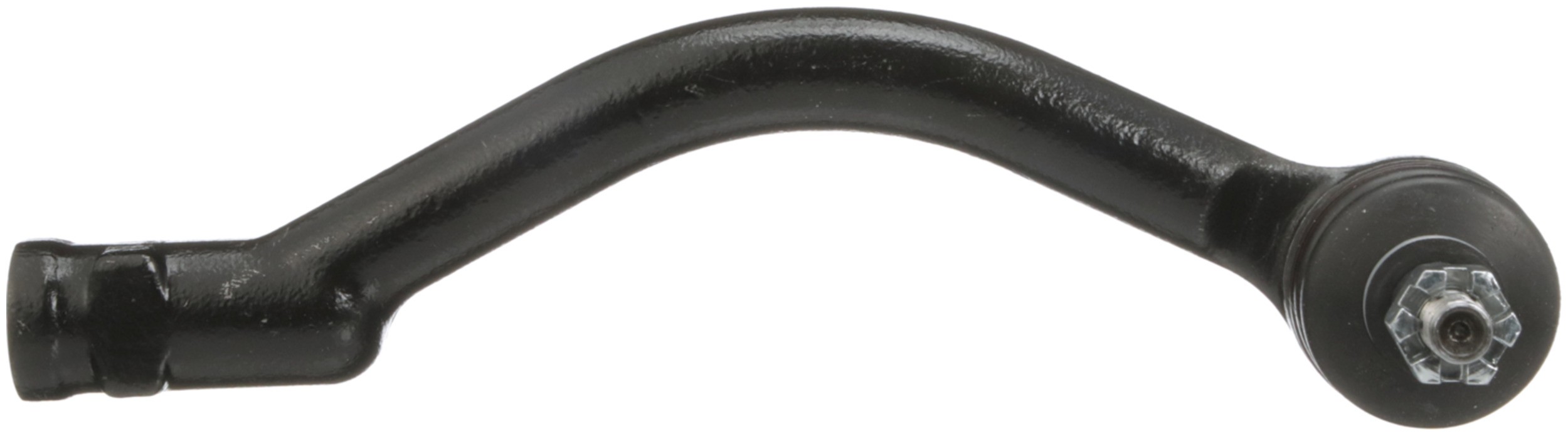

Delphi TA5501 Steering Tie Rod End

Delphi TA5501 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Housing Material	Steel
Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
End 2 Gender	Female
Color	Black
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Bent
Length – Stud Centre to End	219.00 MM
Length – Stud Centre to End	8.622 IN
Height	74.70 MM
Width	67 MM
Stud Length	15.00 MM
Stud Length	0.591 IN
Length	240.00 MM
Mounting Hardware Included	Yes
Grade Type	Standard Replacement
9091	Steel
9090	Rubber
881	Threaded
Position(s)	Right Outer
1786	0.591 IN
1786	15.00 MM
36	0.787 IN
36	20.00 MM
627	1.89 LB
662	0.591 IN
662	15.00 MM
Adjustable	No
