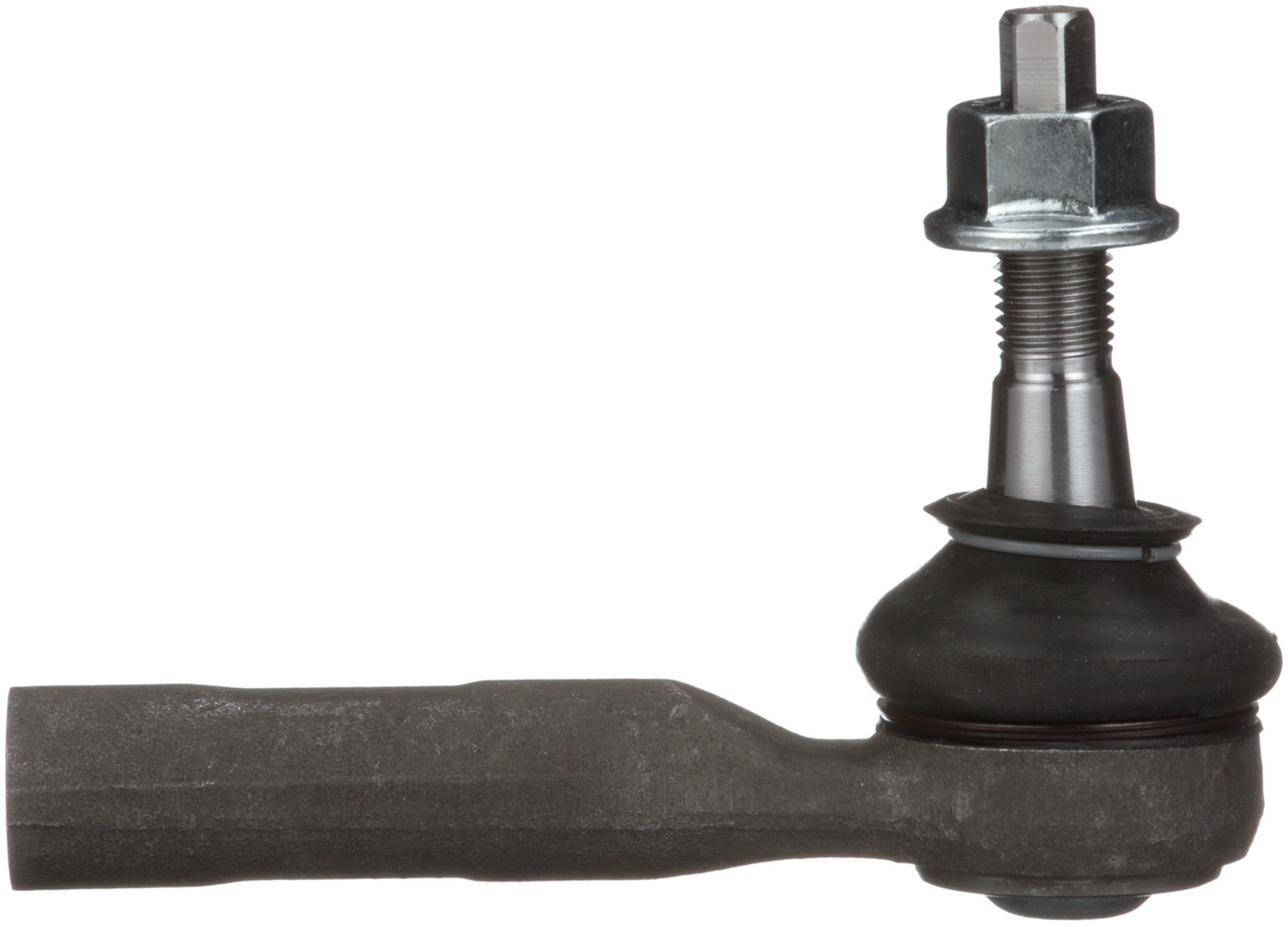

Delphi TA5505 Steering Tie Rod End

Delphi TA5505 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Mounting Hardware Included	Yes
Housing Material	Steel
Adjustable	No
Greaseable	No
Bearing Material	Plastic
End 1 Thread Direction	Clockwise (Right)
End 2 Thread Direction	Clockwise (Right)
Length – Stud Centre to End	120.00 MM
Length – Stud Centre to End	4.724 IN
Height	103.20 MM
9090	Rubber
9091	Steel
Width	44.5 MM
Length	144.00 MM
Stud Length	0.768 IN
1786	0.768 IN
1786	19.50 MM
36	0.906 IN
36	23.00 MM
627	1.45 LB
881	Threaded
Position(s)	Outer
662	19.50 MM
662	0.768 IN
Stud Length	19.50 MM
Color	Black
End 2 Gender	Female
Pre-greased	Yes
Grease Fitting Included	No
Dust Boot Included	Yes
Type	Straight
Grade Type	Standard Replacement
