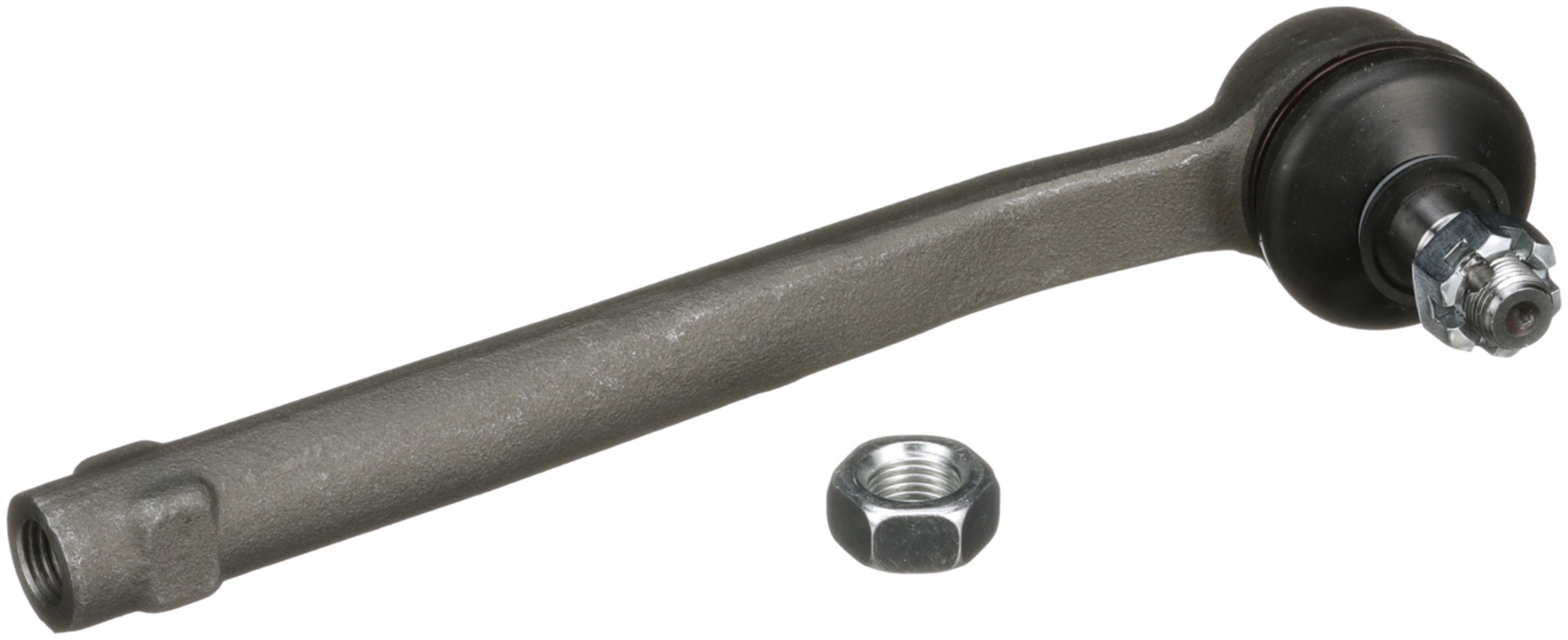

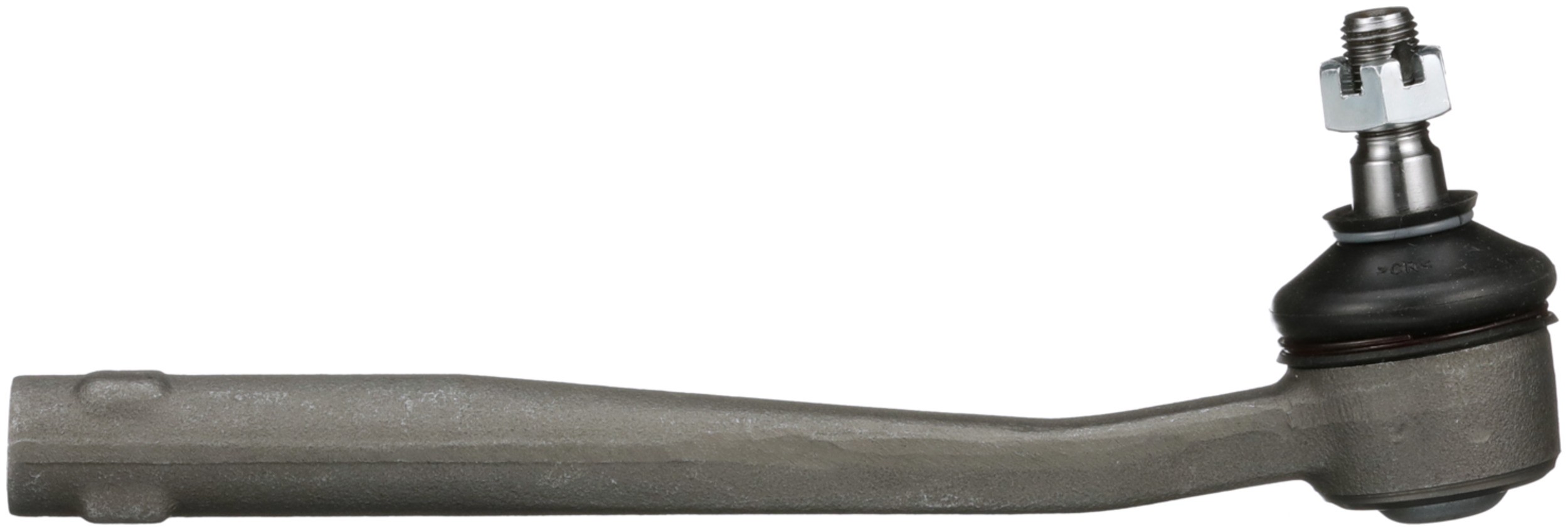

Delphi TA5533 Steering Tie Rod End

Delphi TA5533 Steering Tie Rod End

Features:

Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi includes the necessary accessories for a complete job
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Delphi tie rods are fatigue tested to avoid failure

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Color	Black
Length	230.00 MM
Stud Length	0.598 IN
Stud Length	15.20 MM
Width	40 MM
Height	75.50 MM
Length – Stud Centre to End	8.228 IN
881	Threaded
9090	Rubber
9091	Steel
662	15.20 MM
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	No
Adjustable	No
Housing Material	Steel
Length – Stud Centre to End	209.00 MM
Grade Type	Standard Replacement
1786	0.598 IN
1786	15.20 MM
36	0.827 IN
36	21.00 MM
Position(s)	Outer
Mounting Hardware Included	Yes
Type	Straight
Dust Boot Included	Yes
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Female
627	1.35 LB
662	0.598 IN
