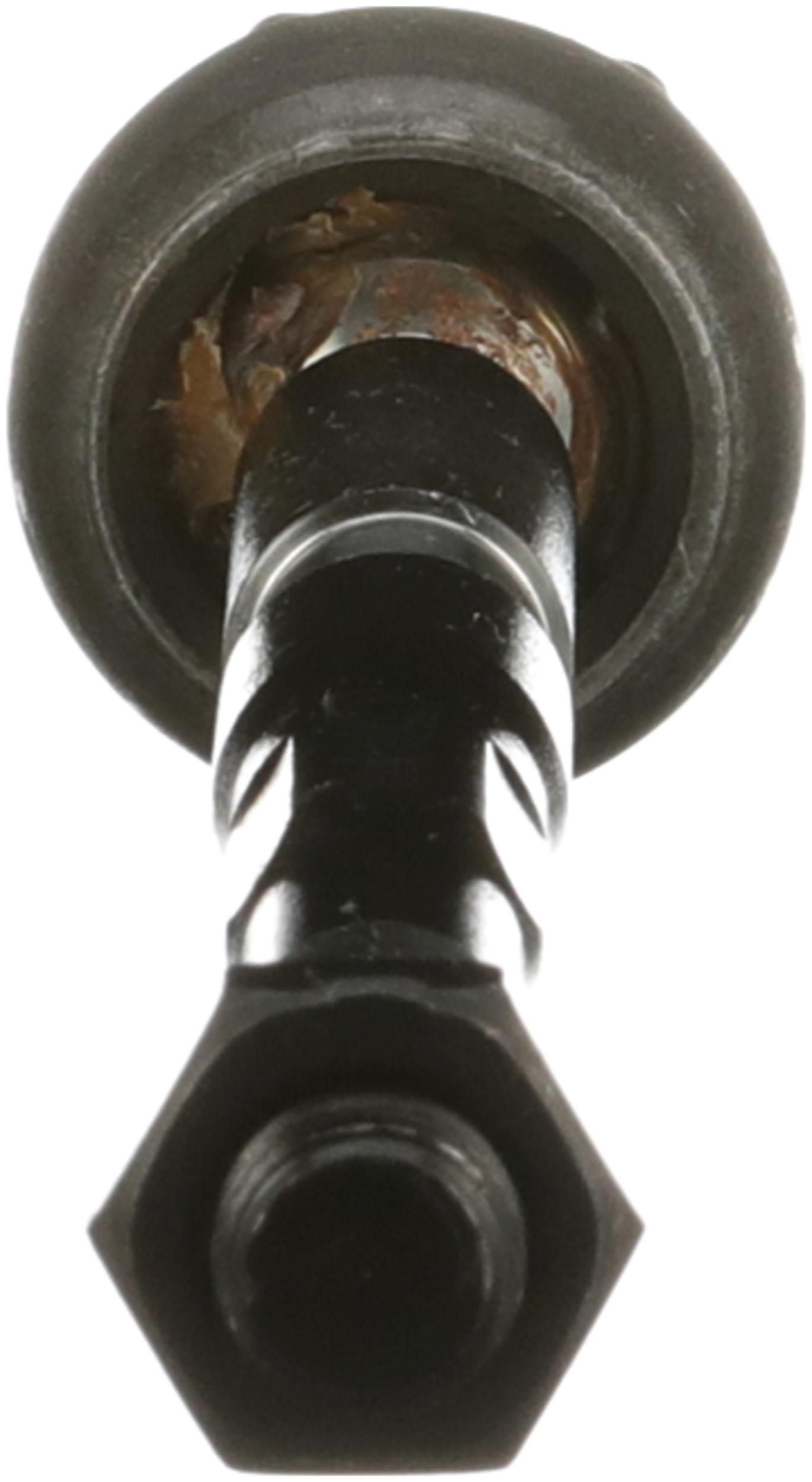

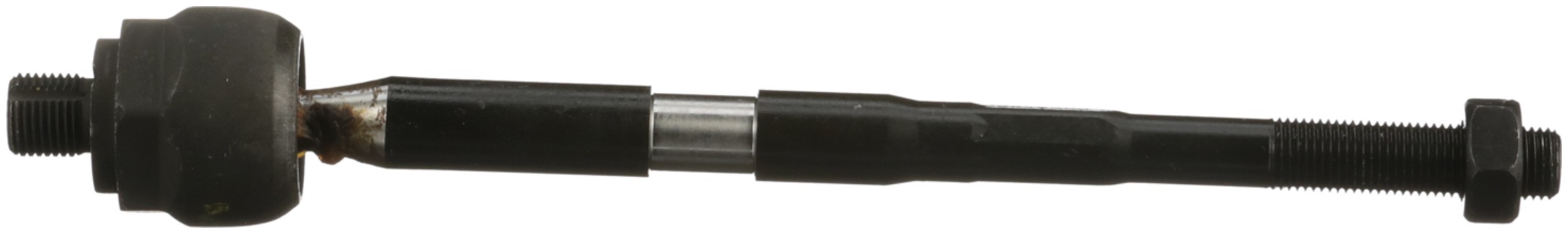

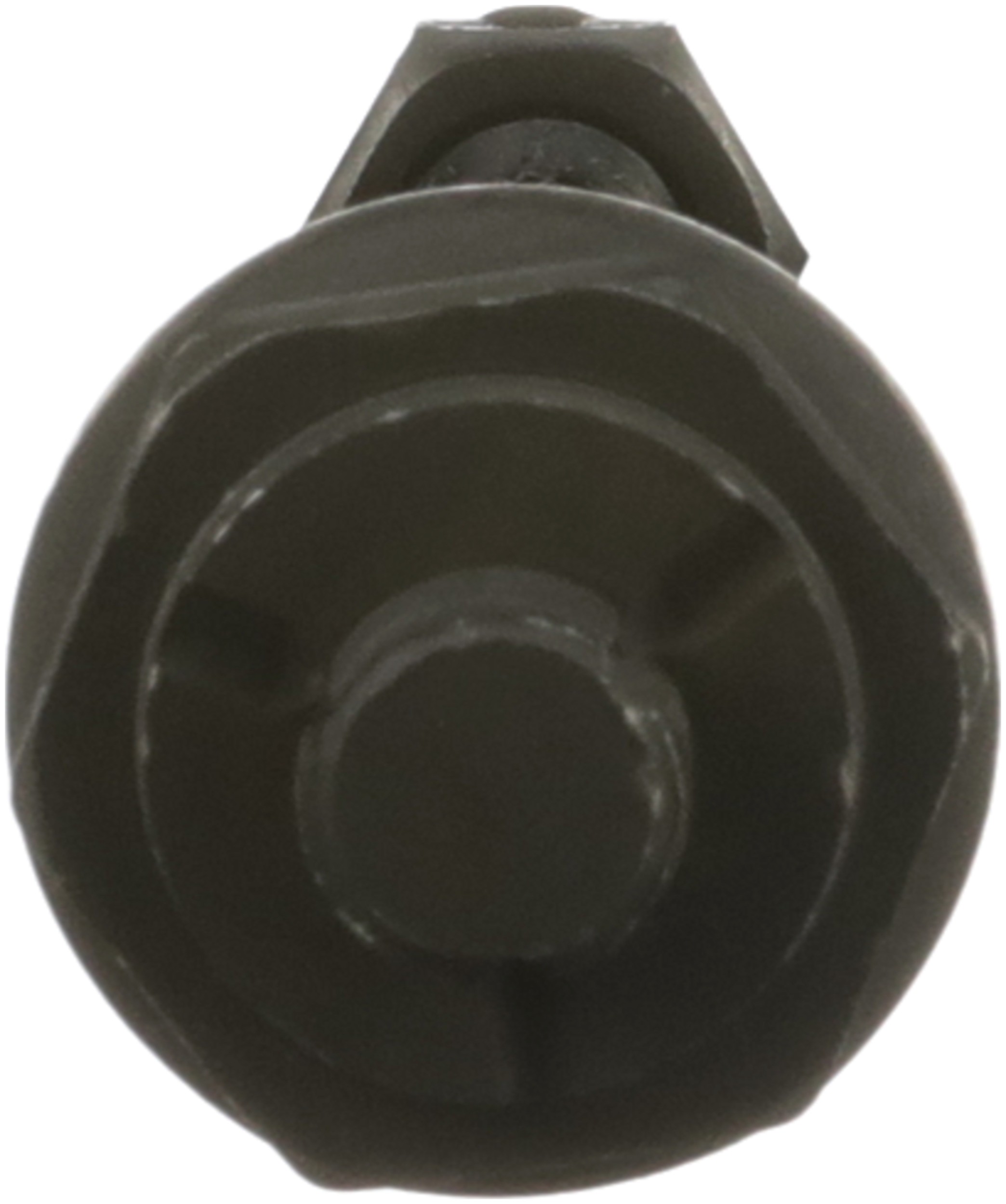

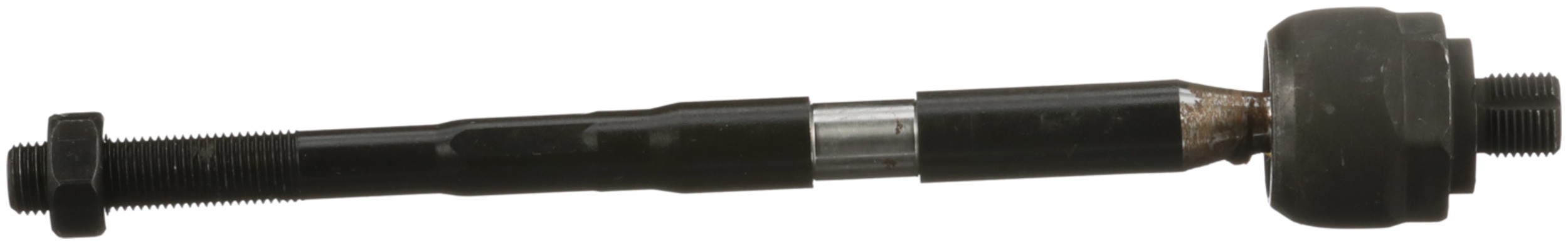

Delphi TA5684 Steering Tie Rod End

Delphi TA5684 Steering Tie Rod End

Features:

Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Pre-greased	Yes
Dust Boot Included	No
Position(s)	Inner
Finish	Uncoated
End 2 Gender	Male
Grade Type	Standard Replacement
End 1 Gender	Male
Length	286.00 MM
Width	41 MM
9091	Steel
Color	Black
Grease Fitting Included	No
Type	Straight
Mounting Hardware Included	Yes
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Housing Material	Steel
Adjustable	No
Greaseable	No
Bearing Material	Plastic
881	Threaded
Height	41.00 MM
Length – Stud Centre to End	9.449 IN
Length – Stud Centre to End	240.00 MM
