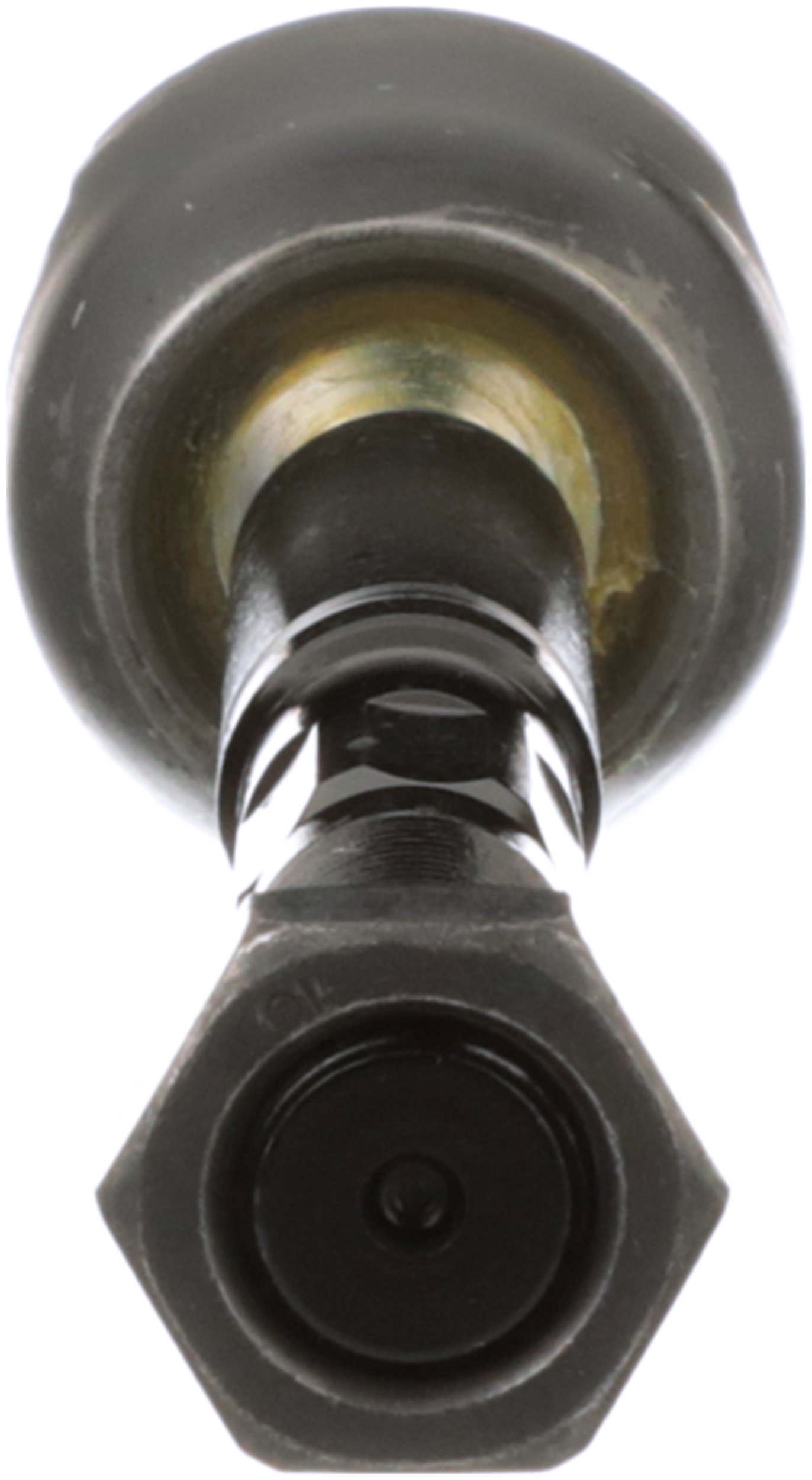

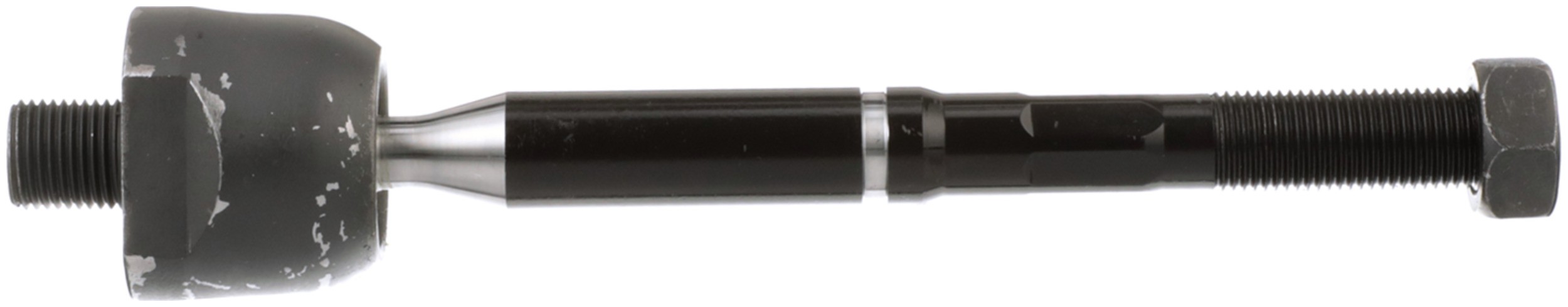

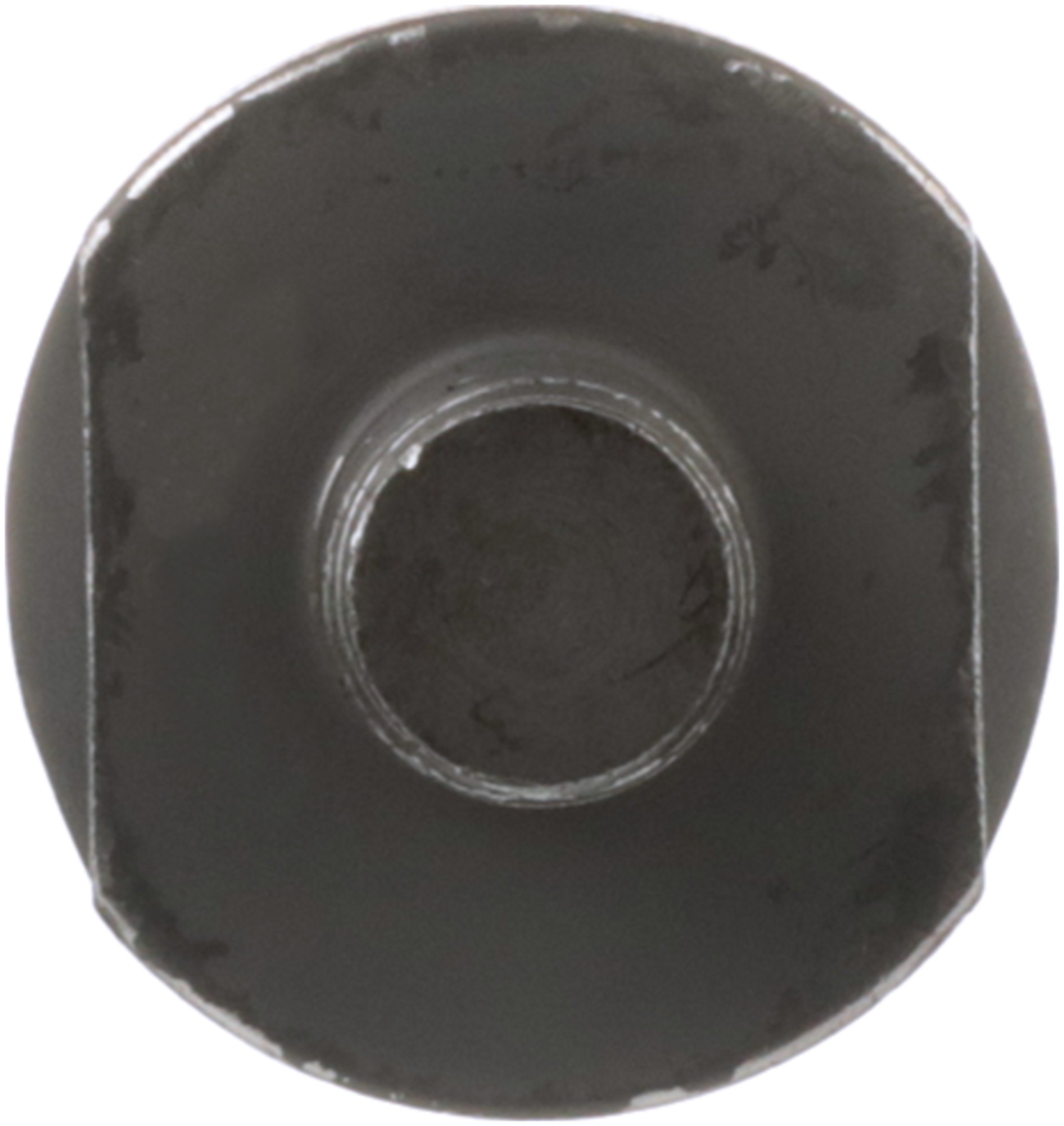

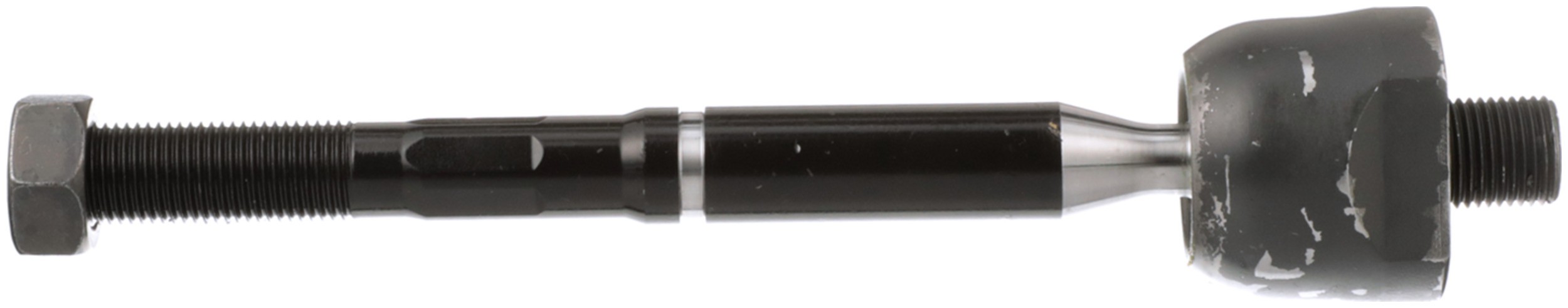

Delphi TA5840 Steering Tie Rod End

Delphi TA5840 Steering Tie Rod End

Features:

Delphi tie rods are fatigue tested to avoid failure
Delphi includes the necessary accessories for a complete job
Anti Corrosion protection applied to each part for optimum corrosion prevention and enhanced aesthetics
Delphi machines the ball studs to micron tolerances to guarantee durability and smooth joint operation

Delphi’s OE safety technology is fitted to millions of vehicles worldwide and we apply Delphi’s OE expertise to our aftermarket steering portfolio. Delphi tests to the extreme for OE performance at every turn: our parts withstand temperatures below -40 degrees C and over 120 degrees C and are exposed to 720 hours of salt spray. Delphi’s extensive dimensional and material analysis ensures the very best compatibility between the OE and aftermarket part.

Attributes:

Dust Boot Included	No
Grease Fitting Included	No
Pre-greased	Yes
End 2 Gender	Female
End 1 Gender	Male
Color	Black
Length – Stud Centre to End	201.50 MM
Length – Stud Centre to End	7.933 IN
Height	42.00 MM
Width	42 MM
Stud Length	15.65 MM
Stud Length	0.616 IN
Length	218.00 MM
9091	Steel
881	Tapered
Position(s)	Inner
662	15.65 MM
662	0.616 IN
36	17.00 MM
36	0.670 IN
1786	15.65 MM
1786	0.616 IN
End 2 Thread Direction	Clockwise (Right)
End 1 Thread Direction	Clockwise (Right)
Bearing Material	Plastic
Greaseable	No
Adjustable	No
Housing Material	Steel
Grade Type	Standard Replacement
Mounting Hardware Included	Yes
Type	Straight
